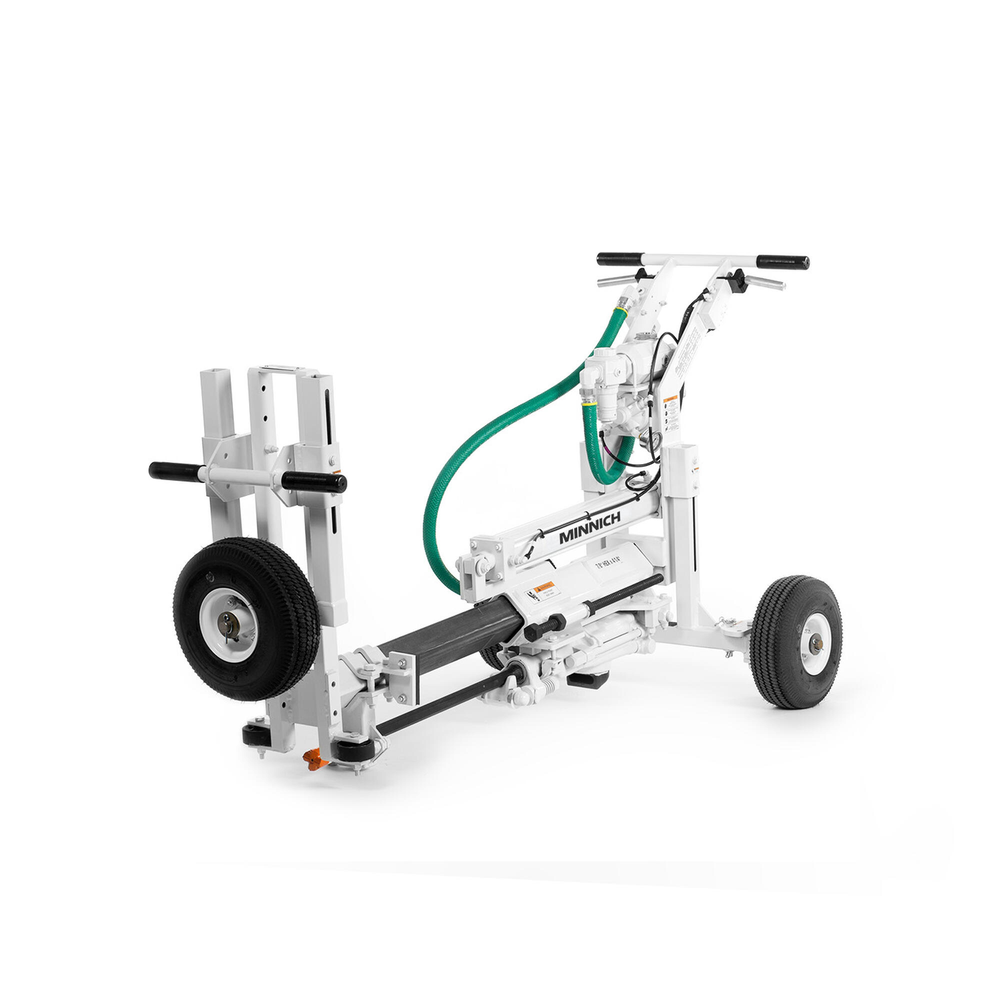

Minnich A-1-36 On-Grade Single Gang Pneumatic Drill

Mfr.: Minnich Manufacturing
Item #: I070727
Mfr. #: A-1-36
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $12,980.00
i h h

Description

The Minnich A-1-36 is a high-performance single pneumatic on-grade drill designed to maximize versatility and efficiency in tight workspaces. This unit is specifically engineered to fit into a 36-inch opening without the need to remove its wheels, streamlining repositioning on the job site. Capable of four-way drilling configurationshorizontal, vertical, into a wall, or near a cornerit eliminates the requirement for separate conversion kits. This drill is an ideal solution for utility work and concrete doweling where maneuverability and safety are paramount.
  • Four-Way Configuration: Easily switch between horizontal, vertical, wall, and corner drilling.
  • Compact Design: Engineered to fit within a 36-inch cutout width while maintaining full functionality.

Features

  • Dual-Trigger Safety System: Includes one trigger for drill movement and a second to activate drilling, allowing for instant shut-off.
  • Pivoting Wheel Kit: Provides lateral movement within the cutout for precise positioning and reduced operator strain.
  • No Conversion Kits Required: The unit can be reconfigured for different drilling positions using the existing hardware.
  • Heavy-Duty 50 lb Hammer: Delivers powerful pneumatic performance for efficient concrete penetration.

Includes

  • Single Pneumatic Drill Unit (A-1-36)
  • Integrated Wheel Kit (Pivoting Wheels)
  • Dual-Trigger Grip Safety Assembly
  • Operator and Service Manual
Products specifications
Model A-1-36
Hammer Weight 50 lbs
Minimum Cutout Width 36 inch (91.4 cm)
Drill Steel Shank 7/8 inch x 4-1/4 inch (.875 inch x 4.25 inch)
Drill Steel Length (Under Collar) 12 inch (30.5 cm)
Drill Bit Diameter Range 0.625 inch - 2.50 inch (15.9 mm - 63.5 mm)
Maximum Hole Depth 10 inch (25.4 cm)
Drill Distance From Top of Slab 3 inch - 12 inch (7.6 cm - 30.5 cm)
Air Consumption (SCFM Required) 92.2
Pressure Required (PSIG) 120
Unit Weight 185 lbs (83.9 kg)
*
*
*
