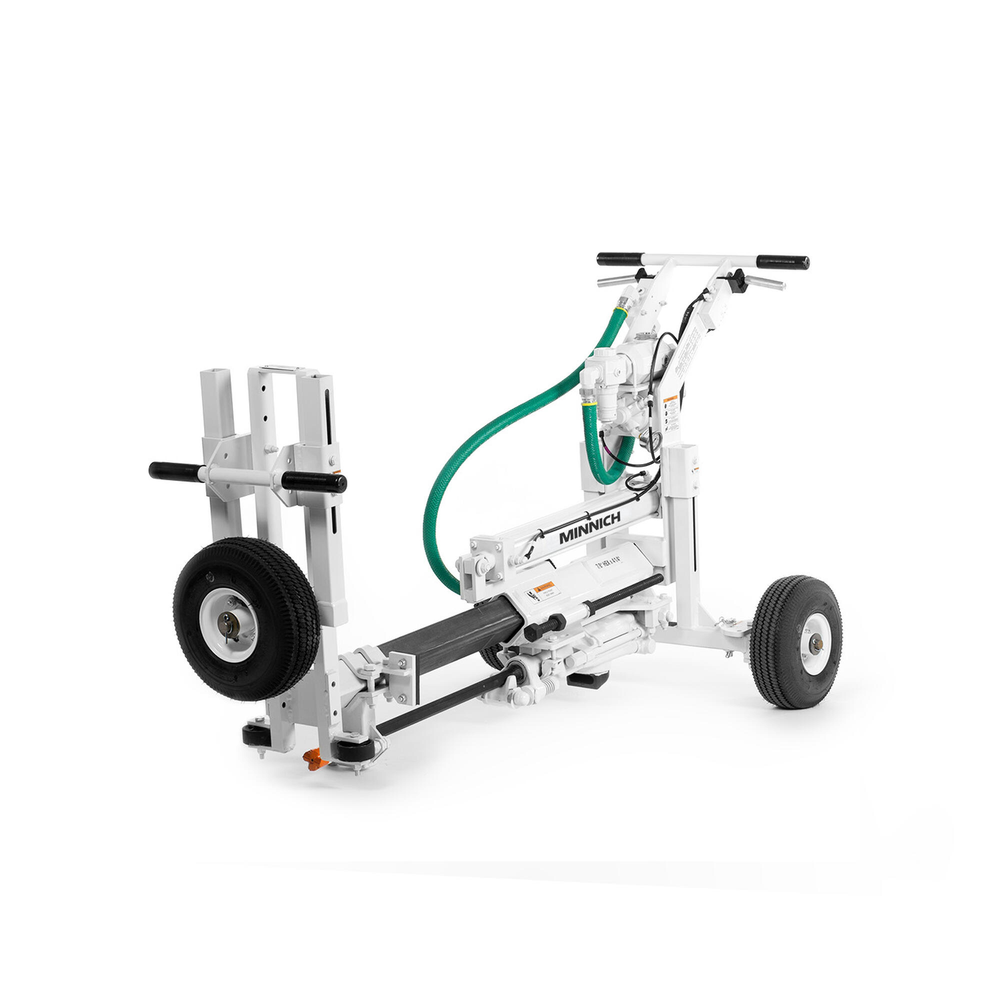

A-1-48 A-1 Series Single Gang On-Grade Drill

Mfr.: Minnich Manufacturing
Item #: I070728
Mfr. #: A-1-48
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $12,980.00
i h h

Description

The Minnich A-1-48 is a versatile single pneumatic on-grade drill designed to maximize efficiency and accuracy in concrete dowel pin applications. Engineered to fit within a 48-inch opening with its wheels attached, this unit utilizes a powerful 50 lb drill to handle demanding jobs while remaining easy to reposition. It features a flexible design that allows for horizontal and vertical drilling without the need for expensive conversion kits, ensuring contractors can adapt to various site requirements quickly. The inclusion of a dedicated wheel kit and safety-focused controls makes it an industry standard for productivity in tight workspaces.
  • Dual-Trigger Safety System
  • Pivoting Wheel Kit for Lateral Movement
  • Multi-Position Drilling Configuration
  • Low-Maintenance Design

Features

  • Versatile Configuration: Can be configured four ways (horizontally, vertically, into a wall, or six inches from a corner) without additional equipment.
  • Operator Safety: Features intelligently designed trigger grips where one activates movement and the other activates drilling action, allowing for swift halts.
  • Enhanced Leverage: Includes a conveniently placed foothold directly under the handle for increased leverage when drilling each hole.
  • Zero-Clearance Drilling: Capable of wall configurations for drilling in extremely restricted areas.

Includes

  • Single Pneumatic 50 lb Drill Unit
  • Integrated Pivoting Wheel Kit
  • Dual-Trigger Grip Controls
  • Adjustable Height and Depth Stops
Products specifications
Distance From Top of Slab 3 inch - 12 inch
Minimum Cutout Width 48 inch
Required Airflow 92.2 SCFM
Weight 200 lbs
Required Pressure 120 PSIG
Maximum Hole Depth 18 inch
Drill Steel Shank Size 7/8 inch x 4-1/4 inch (.875 inch x 4.25 inch)
Model A-1-48
Drill Bit Diameter 0.625 inch - 2.50 inch
Drill Steel Length 24 inch under collar
*
*
*
