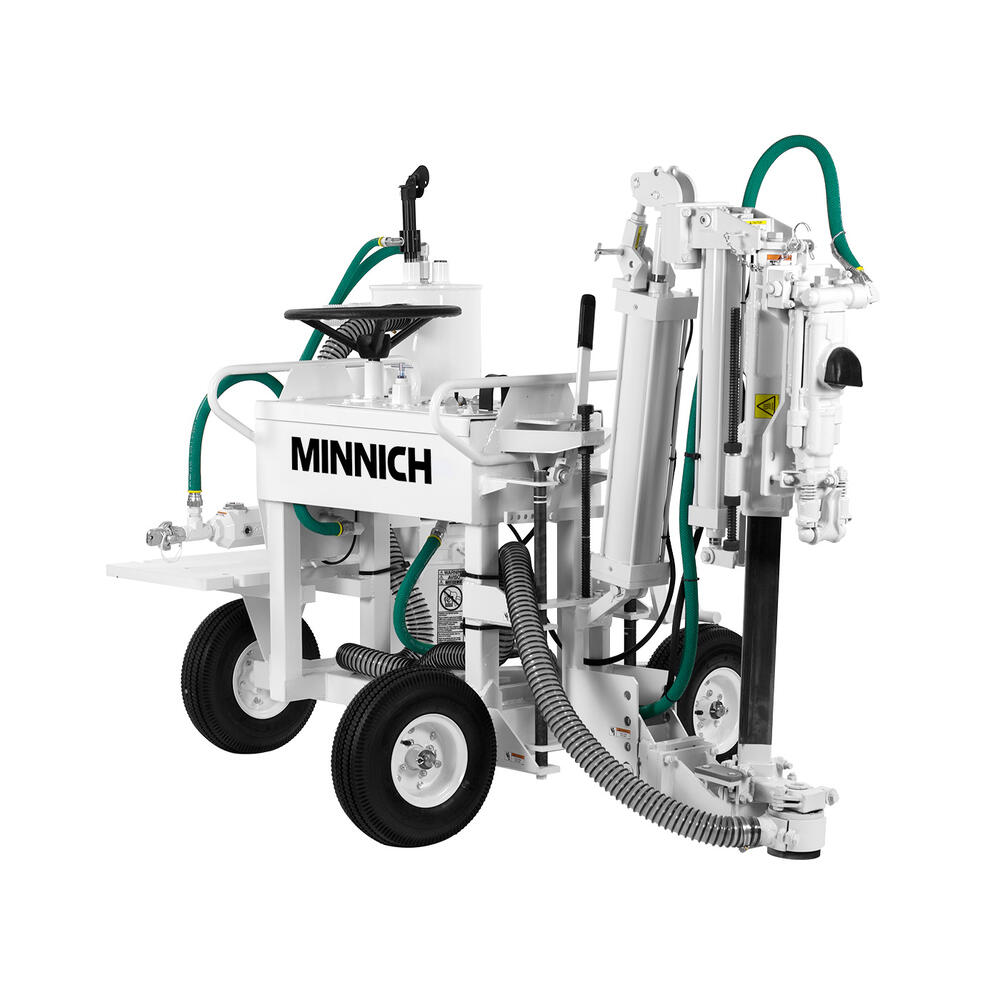

Minnich A-1C Series Single On-Slab Drill

Mfr.: Minnich Manufacturing
Item #: I070731
Mfr. #: A-1C
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $16,520.00
i h h

Description

The Minnich A-1C Series provides a versatile on-slab drilling solution designed to handle a wide range of dowel pin drilling applications with precision. This single-drill, cantilevered pneumatic unit features a built-in steering system that enhances operator control and accuracy when moving between holes. Engineered for durability, the A-1C includes an automatic shut-off feature that minimizes dry firing to extend the service life of the drill. Its ability to perform horizontal, vertical, stitch, and skew drilling makes it an essential tool for maximum job site versatility.
  • Four-position drilling capability (Horizontal, Vertical, 35 Stitch, and Skew)
  • Steerable unit for enhanced maneuverability and operator control
  • Automatic shut-off system to prevent dry firing and extend tool life

Features

  • Adjustable drill height, depth, and centers to accommodate varying project requirements.
  • Large oiler reservoir for easy maintenance and consistent lubrication.
  • Pivoting, flat-proof tires allow for lateral movement and reliable transport within the cutout.
  • Dual trigger grips designed for safety, allowing operators to quickly stop drilling action by releasing the grip.

Includes

  • Steerable Single Drill Frame
  • 50 lb Pneumatic Drill Unit
  • Automatic Shut-off Mechanism
  • High-Capacity Oiler
  • Depth Guide and Stop Pad
Products specifications
Required Air Flow (SCFM) 92.2 SCFM (2.61 m3/min)
Distance from Top of Slab 1.5 inch to 11.75 inch (3.8cm - 30cm)
Operating Weight Approximately 670 lbs (304 kg)
Required Pressure (PSIG) 90 PSIG (6.2 BAR)
Minimum Cutout Width 48 inch (122cm)
Drill Steel Length 24 inch (61cm) under collar
Drill Steel Shank (Chuck Size) 7/8 inch x 4-1/4 inch (22.2mm x 108mm)
Maximum Hole Depth 18 inch (46cm)
Drill Bit Diameter 5/8 inch to 2-1/2 inch (16mm - 64mm)
*
*
*
