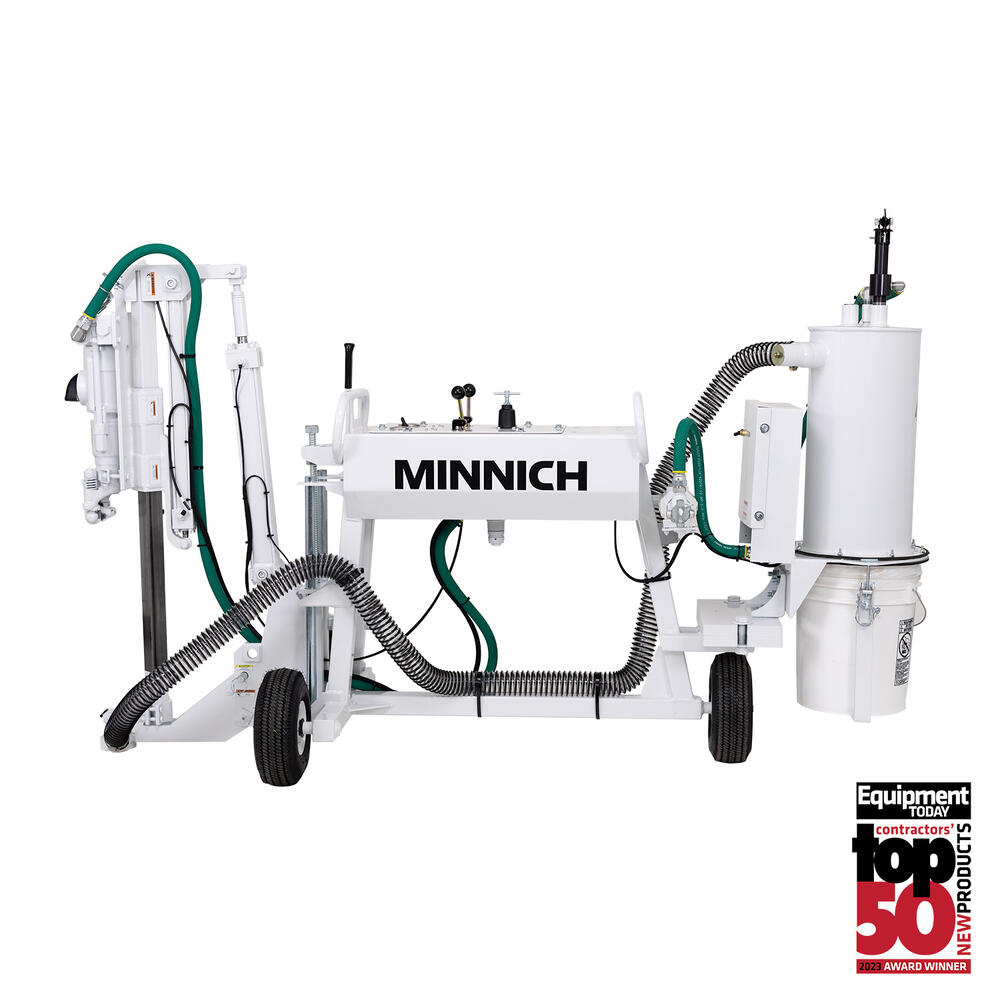

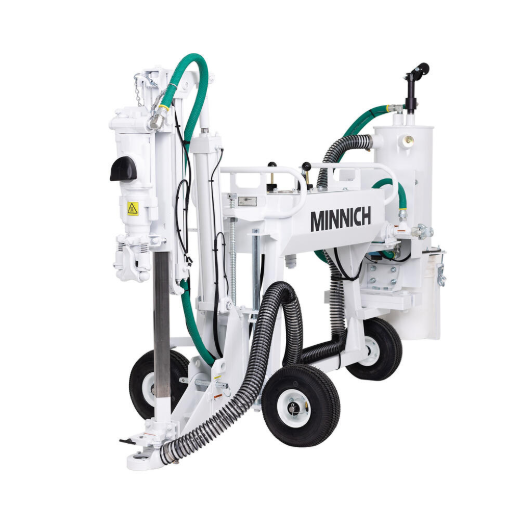

Minnich A-1CL Minni Single Gang Dowel Pin Drill

Mfr.: Minnich Manufacturing
Item #: I070730
Mfr. #: A-1CL MINNI
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: Call for pricing
i h h

Description

The Minnich A-1CL Minni is a lightweight, on-slab dowel pin drill designed for high-production concrete applications and road construction projects. As a streamlined version of the A-1C series, this single pneumatic unit offers contractors a more affordable and highly maneuverable solution for precision drilling. It is specifically engineered to fit within a 48-inch opening and features a versatile cantilevered design that enables multi-angle operation. This unit effectively eliminates the need for additional equipment or conversion kits, ensuring projects stay on schedule and within budget.
  • Lightweight 350 lb. design for enhanced on-slab maneuverability
  • Four-position drilling versatility including Horizontal, Vertical, 35-degree Stitch, and Skew

Features

  • Equipped with a high-performance 50 lb. drill hammer for efficient concrete penetration
  • Compact rail system specifically sized to fit in a 48-inch opening
  • Maximum drilling depth of 18 inches with a 24-inch under-collar drill steel length
  • Maneuverable frame with pivoting wheels for easy lateral positioning within cutouts
  • Compatible with optional Minnich dust collection systems for OSHA compliance

Includes

  • 50 lb. Pneumatic Drill Unit
  • 48-inch Rail/Frame Assembly
  • Pivoting Wheel Set
Products specifications
Weight 350 lbs
Maximum Hole Depth 18 inches
Drill Steel Length 24 inches
Required Airflow 92.2 SCFM
Required Pressure 120 PSIG
Drill Size 50 lb Hammer
Minimum Cutout Width 48 inches
Drilling Positions Horizontal, Vertical, 35-degree Stitch, and Skew
*
*
*
