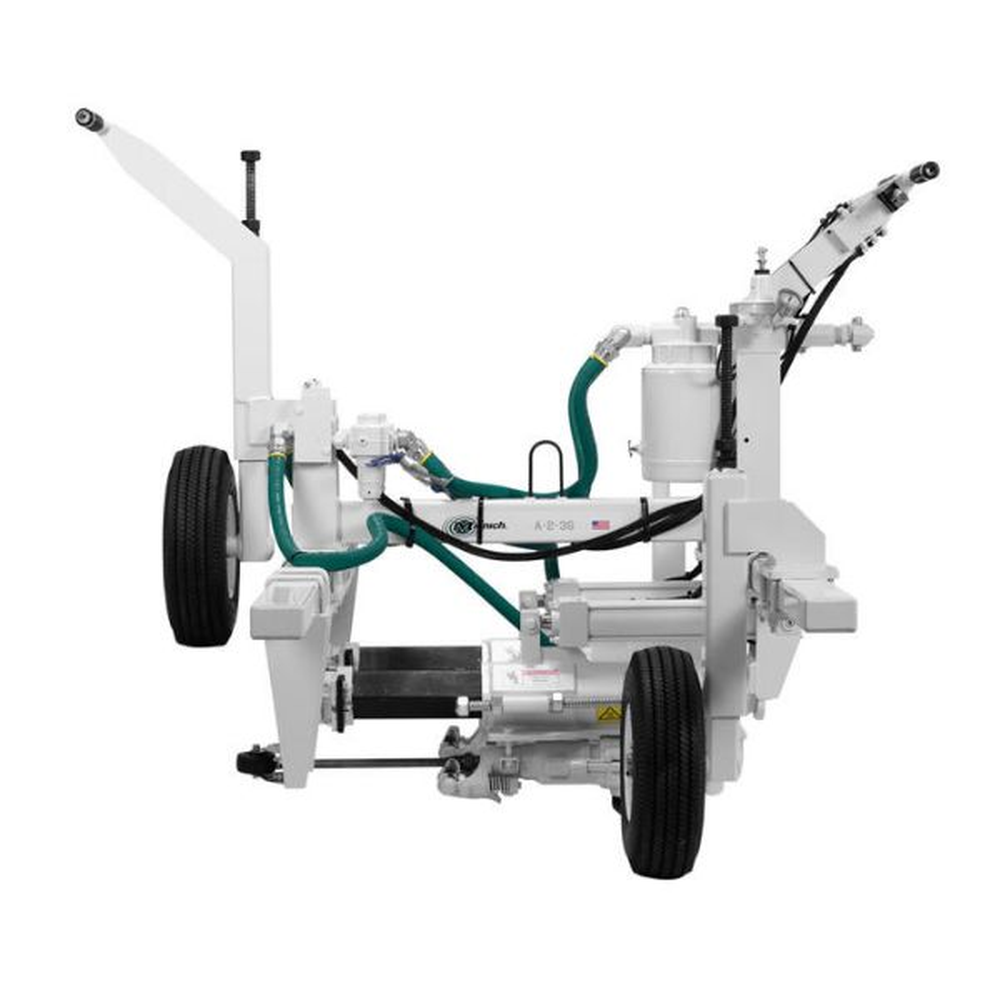

Minnich A-2-48 On-Grade Double Pneumatic Drill

Mfr.: Minnich Manufacturing
Item #: I070729
Mfr. #: A-2-48
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $25,370.00
i h h

Description

The Minnich A-2-48 is a high-performance on-grade double pneumatic drill designed for maximum efficiency in dowel hole drilling applications. This twin-drill unit is specifically engineered to fit within a 48-inch opening with its wheels attached, allowing for rapid repositioning without the need to disassemble the equipment. By utilizing two 50 lb class drills, the A-2-48 significantly increases productivity on the job site by cutting drilling time in half compared to single-gang units.
  • Dual-drill configuration for double the drilling speed
  • Fits in 48 inch openings with wheel kit included
  • Supports both horizontal and vertical drilling positions
  • Heavy-duty on-grade frame construction

Features

  • Two-position drilling capability allows operators to switch between horizontal and vertical orientations easily.
  • Equipped with flat-proof, urethane-filled tires to ensure consistent mobility across rough job site terrain.
  • Adjustable drill depth and height settings provide precise control for various slab thicknesses.
  • The unit is designed to minimize operator fatigue by eliminating the need to bend over during the drilling process.

Includes

  • Two 50 lb class pneumatic rock drills
  • 48 inch on-grade drill frame
  • Integrated wheel kit with flat-proof tires
  • Operator steering handles and controls
  • In-line lubricator for drill maintenance
Products specifications
Drill Steel Shank Size 0.875 inch x 4.25 inch (22.2 mm x 107.9 mm)
Drill Bit Diameter 0.625 inch - 2.50 inch (15.9 mm - 63.5 mm)
Maximum Hole Depth 18 inch (45.7 cm)
Weight Approx. 900 lbs (408.2 kg)
Operating Pressure 90 - 120 PSIG
Air Requirements (SCFM) 184.4 SCFM (92.2 per drill)
Number of Drills 2
Model A-2-48 (A-2 Series)
Drill Class 50 lb
Drilling Positions Horizontal, Vertical, 35-degree Stitch
Minimum Cutout Width 48 inch (121.9 cm)
*
*
*
