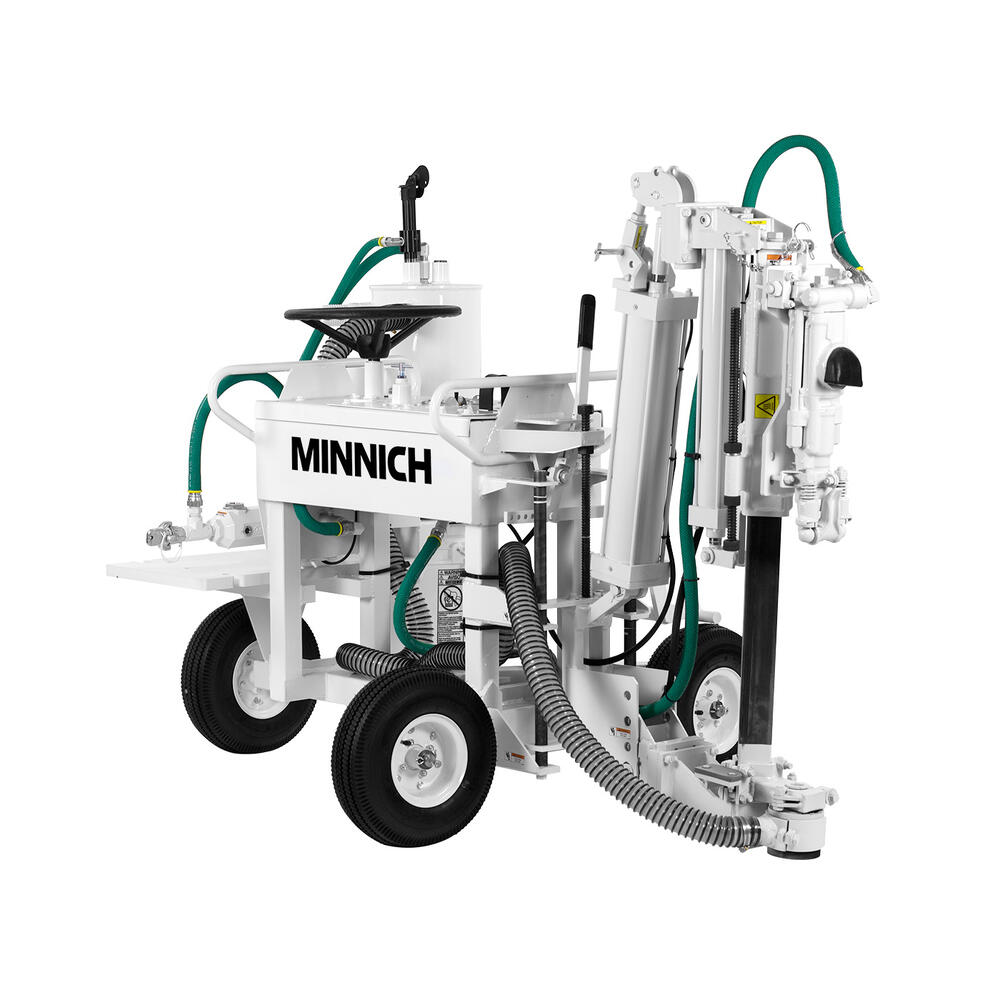

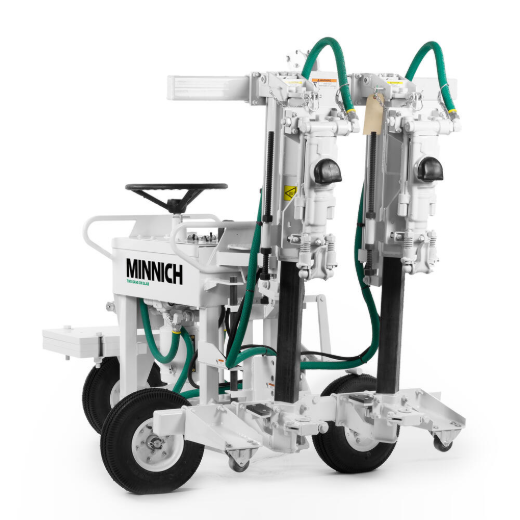

Minnich A-2C Series On-Slab Drill

Mfr.: Minnich Manufacturing
Item #: I070732
Mfr. #: A-2C
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $25,960.00
i h h

Description

The Minnich A-2C is a high-performance, steerable dual pneumatic drill unit designed for efficient on-slab drilling in various construction applications. Featuring two powerful 50 lb drills, this unit is engineered to cut operating time in half compared to single-drill models while maintaining exceptional precision. Its compact design allows the rails to fit perfectly within a 48-inch opening, making it ideal for standard project cutouts. The A-2C is highly versatile, offering operators three distinct drilling positionshorizontal, vertical, and a 35-degree stitchto meet the demands of any job site.
  • Dual-drill configuration maximizes productivity by drilling two holes simultaneously.
  • Steerable design enhances operator accuracy and control during positioning.

Features

  • Three-position drilling capabilities: Horizontal, Vertical, and 35-degree Stitch drilling.
  • Automatic shut-off feature helps extend the service life of the drill components.
  • Equipped with flat-proof, urethane-filled tires for reliable movement over rough terrain.
  • Adjustable drill height, depth, and centers to accommodate varying slab requirements.
  • Integrated larger oiler system for simplified and reduced maintenance frequency.

Includes

  • Two 50 lb pneumatic rock drills
  • Steerable on-slab frame with 48 inch minimum cutout width capacity
  • Urethane-filled flat-proof tires
  • High-capacity maintenance oiler
Products specifications
Drill Distance from Top of Slab 1.5 in to 11.75 in (3.8 cm to 29.8 cm)
Drill Steel Length 24 in Under Collar (61.0 cm)
Required Airflow (SCFM) 184.4 - 185 total (92.2 per drill)
Weight 900 lbs (408.2 kg)
Required Pressure (PSIG) 90 - 120 PSIG
Drill Steel Shank Size 7/8 inch x 4-1/4 inch (22.2 mm x 107.9 mm)
Drilling Positions Horizontal, Vertical, 35-degree Stitch
Drill Configuration Dual Pneumatic Unit
Minimum Cutout Width 48 in (121.9 cm)
Drill Bit Diameter 0.625 in to 2.50 in (15.9 mm to 63.5 mm)
Maximum Drill Depth 18 in (45.7 cm)
*
*
*
