  • Minnich A-2SC Double On-Slab Self-Propelled Air Drill

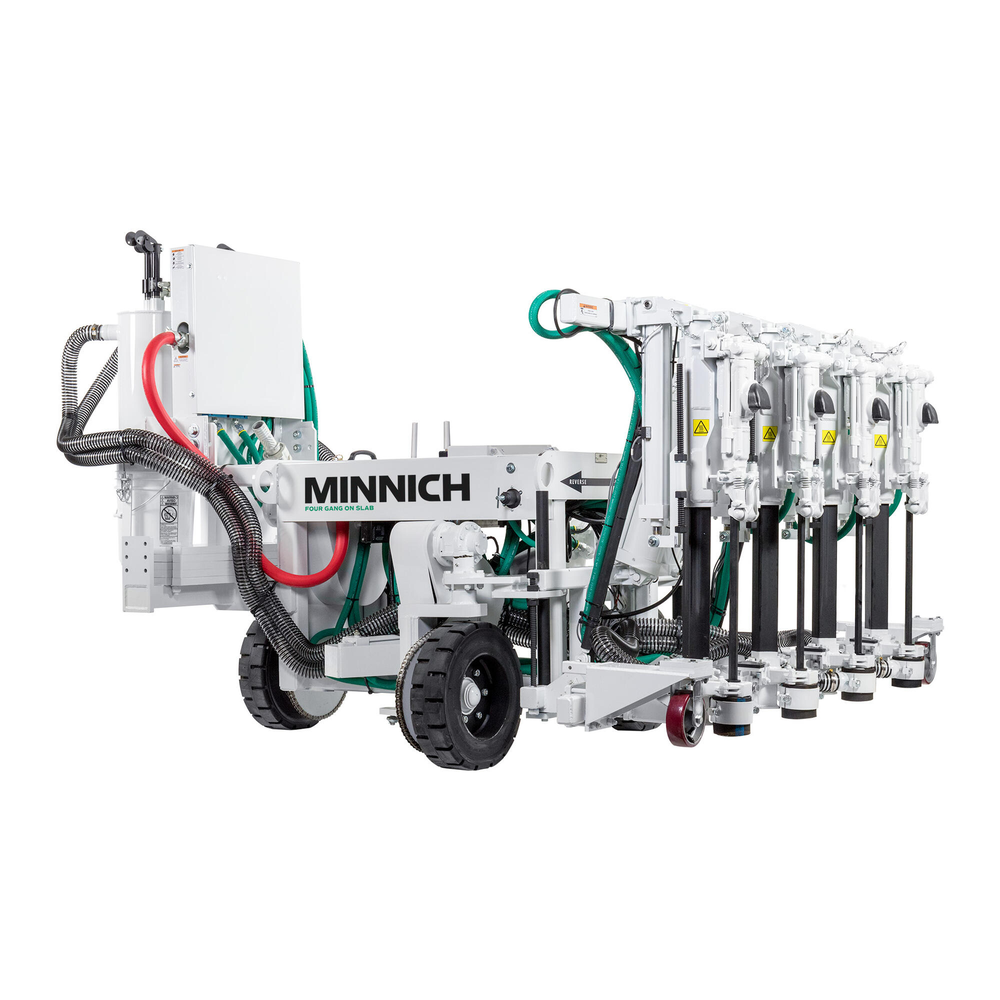

Minnich A-2SC Double On-Slab Self-Propelled Air Drill

Mfr.: Minnich Manufacturing
Item #: I070743
Mfr. #: A-2SC
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $49,560.00
i h h

Description

The Minnich A-2SC is a high-performance, double-gang on-slab concrete drill engineered to maximize productivity on large-scale paving and dowel-drilling projects. Featuring two 50 lb pneumatic drills on a robust three-wheeled frame, this self-propelled unit utilizes air motors and integrated skid steering to maneuver effortlessly across slabs. Its versatile design allows for both horizontal and vertical drilling, significantly reducing the downtime associated with equipment repositioning. Built for heavy-duty use, the A-2SC has the structural integrity to tow its own air compressor, making it an all-in-one solution for efficient pavement construction.
  • Two 50 lb Pneumatic Drills
  • Self-Propelled Air Motors
  • Horizontal & Vertical Drilling Positions
  • Skid/Crab Steering for Lateral Mobility

Features

  • Equipped with crab steering that allows the operator to drive down the slab without the need to raise and lower the drill bed.
  • Manual height and depth adjustments allow for quick adaptation to various slab thicknesses and job specifications.
  • Designed with the strength to tow a portable air compressor, streamlining job site logistics.
  • Features a large-capacity air lubricator to ensure continuous tool protection and reduced maintenance.

Includes

  • (2) 50 lb Pneumatic Drill Motors
  • 3-Wheeled Self-Propelled Frame
  • Manual Control Panel with Integrated Controls
  • Large Capacity Air Lubricator
  • Urethane-Filled/Flat-Proof Tires
Products specifications
Drill Steel Shank .875 inch x 4.25 inch (22.2mm x 107.9mm)
Maximum Drill Depth 18 inch (45.7cm)
Drill Bit Diameter Range .625 inch - 2.50 inch (15.9mm - 63.5mm)
Drill Steel Length 24 inch (61.0cm) Under Collar
Air Requirement (SCFM) 185 SCFM (92.2 per drill)
Required Pressure (PSIG) 90 - 120 PSIG
Drill Distance from Top of Slab 3.5 inch - 12 inch (8.9cm - 30.5cm)
Steering Type Skid / Crab Steering
Weight Approx. 900+ lbs
*
*
*
