Minnich A-2V Machine-Mounted Vertical Drill

Mfr.: Minnich Manufacturing
Item #: I070735
Mfr. #: A-2V
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $29,205.00
i h h

Description

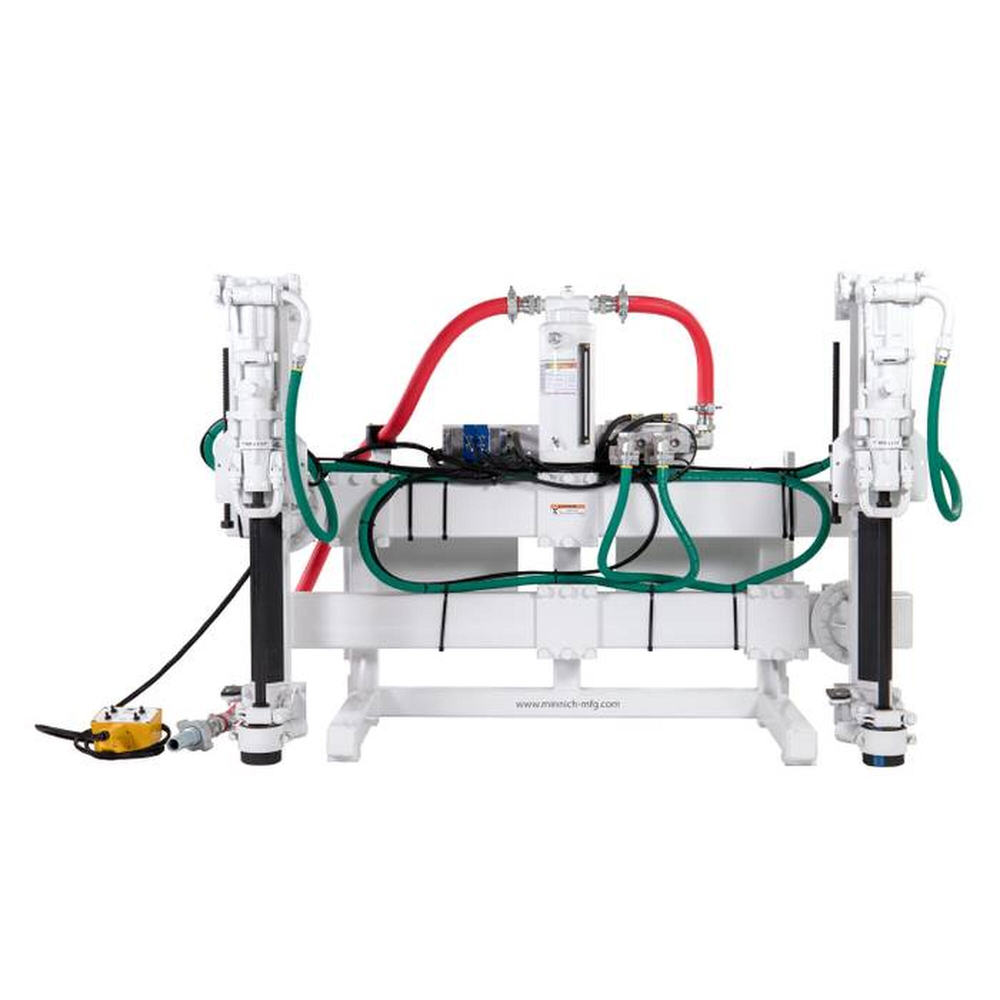

The Minnich A-2V is a heavy-duty, equipment-mounted concrete drill designed to streamline vertical drilling tasks for gas-leak detection, slab removal, and foundation work. By mounting directly to a skid-steer loader, wheel loader, or farm tractor, the A-2V creates a highly mobile and self-contained drilling solution that significantly increases job site productivity. This dual-drill unit features two powerful 55 lb rock drills that can swivel to perform angled drilling, offering a safer and more efficient alternative to manual handheld methods. Operators maintain full control and visibility from a safe distance using the included tethered remote control box.
  • Dual-Drill Efficiency: Equipped with two 55 lb rock drills to cut operating time in half.
  • Equipment Mounted: Easily attaches to skid steers, loaders, or tractors for maximum mobility.
  • Angled Drilling: Drills are capable of swiveling to accommodate specific hole angle requirements.

Features

  • Adjustable height, depth, and drill centers to fit diverse project specifications.
  • Tethered remote control box allows the operator to stand clear of the equipment for enhanced safety.
  • Pneumatic power system designed for use with standard job site air compressors.
  • Heavy-duty frame construction built to withstand the rigors of high-volume vertical drilling.
  • Optional dust collection system available to ensure OSHA compliance and a cleaner workspace.

Includes

  • Two 55 lb Rock Drills
  • Heavy-Duty Vertical Mounting Frame
  • Tethered Remote Control Box
Products specifications
Drill Weight Two 55 lb Rock Drills
Drill Steel Shank Size 0.875 inch x 4.25 inch (22.2x108mm) or 3.25 inch
Drill Steel Length 24 inch (61cm) Under Collar
Drill Bit Diameter 0.625 inch - 2.50 inch (16mm - 64mm)
Maximum Hole Depth 16 inch - 18 inch (41cm - 46cm)
Required SCFM 460.8 SCFM (13.05 m3/min)
Required PSIG 120 PSIG (8.3 BAR)
Total Weight Approximately 1,600 lbs (726 kg)
*
*
*
