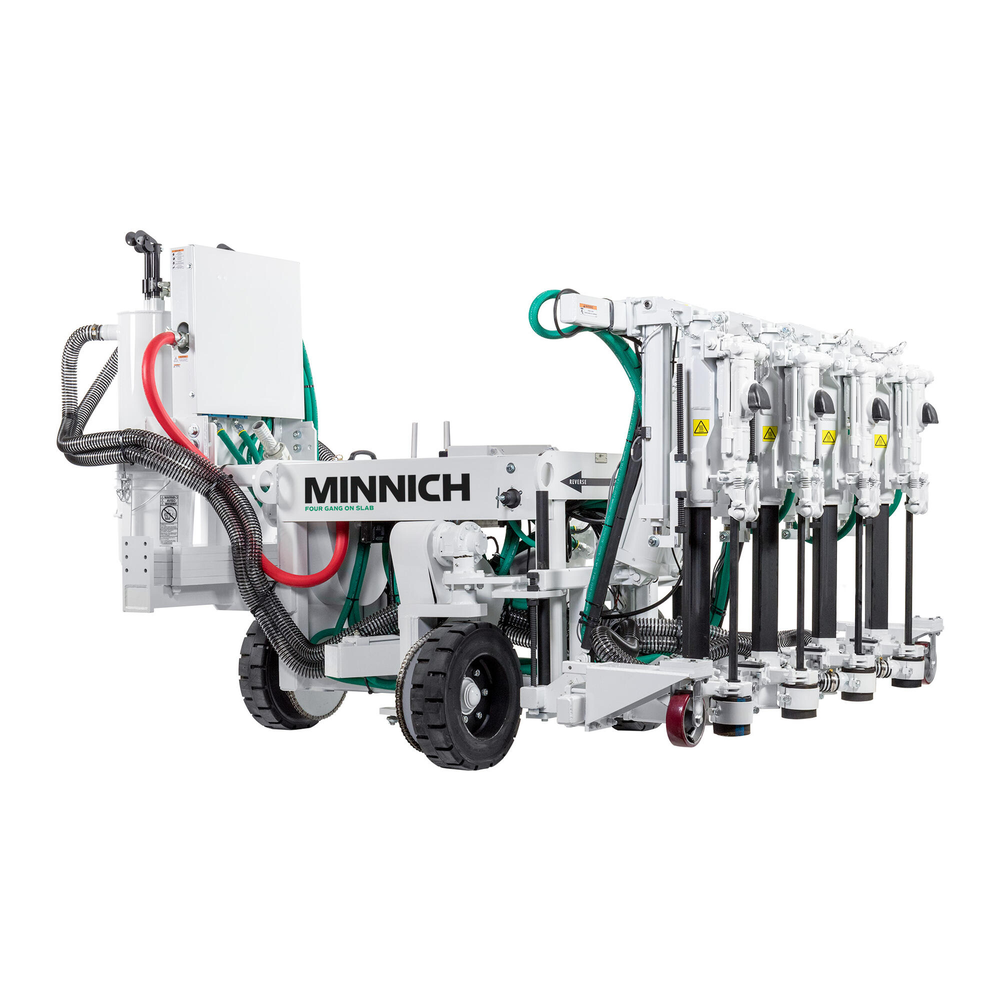

Minnich A-4SC On-Slab Self-Propelled Multi-Drill

Mfr.: Minnich Manufacturing
Item #: I070745
Mfr. #: A-4SC
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $66,080.00
i h h

Description

The Minnich A-4SC is a high-performance on-slab pneumatic dowel pin drill engineered for maximum productivity on large-scale concrete paving projects. Featuring four 50 lb drills mounted on a rugged 3-wheeled frame, this self-propelled unit provides the versatility of both horizontal and vertical drilling with manual height adjustment for various slab depths. Its advanced crab-steering system enhances jobsite efficiency by allowing operators to drive down the slab without the need to raise or lower the drill bed between sets, while its robust design provides the necessary power to tow its own air compressor.
  • Four 50 lb Pneumatic Drills
  • Self-Propelled Air Motor Drive
  • Power Crab-Steering System

Features

  • Dual-position drilling supports both horizontal and vertical orientations to meet diverse project specifications.
  • Manual adjustment for drill height, depth, and centers allows for precise customization to various slab depths and cutout widths.
  • High-strength frame designed with the weight and durability to tow a dedicated air compressor across the jobsite.
  • Equipped with solid rubber tires and integrated power brakes for superior stability and maneuverability on concrete surfaces.
  • Hole spacing pointer assembly included to ensure accurate alignment and consistent drilling intervals.

Includes

  • Operator and Service Manual
  • Hole Spacing Pointer Assembly
  • Solid Rubber Tires
  • Power Braking System
Products specifications
Number of Drills 4
Drill Weight Class 50 lb (23 kg) Pneumatic
Drill Steel Shank 0.875 inch x 4.25 inch (22.2mm x 107.9mm)
Drill Steel Length 24 inch (61cm)
Drill Bit Diameter 0.625 inch to 2.50 inch (15.9mm to 63.5mm)
Maximum Drill Depth 18 inch (45.7cm)
Drill Distance From Top of Slab 3.5 inch to 12 inch (8.9cm to 30.5cm)
Minimum Cutout Width 48 inch (121.9cm)
SCFM Required 92.2 per drill (approx. 368.8 total)
PSIG Required 110 (7.58 BAR)
Total Weight 3,260 lbs (1,479 kg)
*
*
*
