Minnich A-5SCW On-Slab Self-Propelled Wireless Air Drill

Mfr.: Minnich Manufacturing
Item #: I070749
Mfr. #: A-5SCW
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $81,420.00
i h h

Description

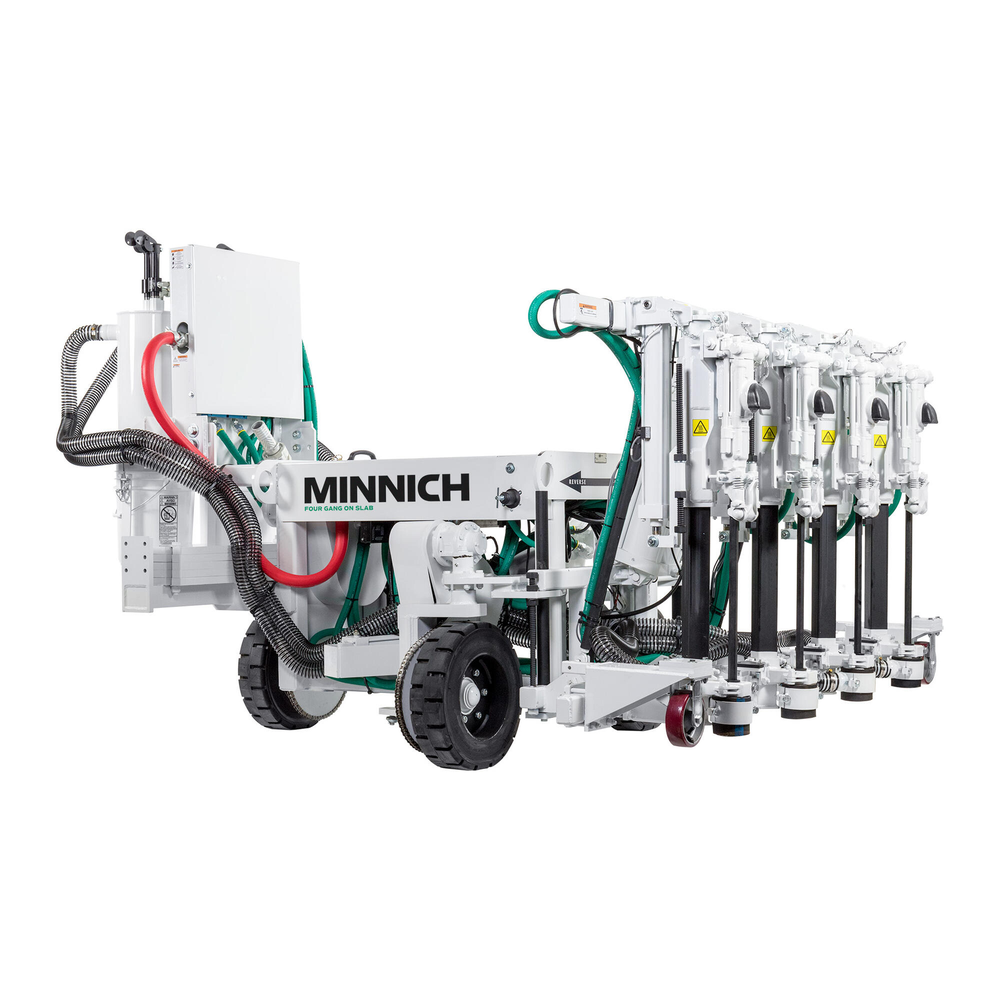

The Minnich A-5SCW is a high-performance, on-slab self-propelled wireless air drill designed to maximize efficiency and operator safety in heavy-duty concrete drilling applications. Featuring five 50 lb pneumatic drills mounted on a robust three-wheeled frame, this unit allows operators to drill up to five holes simultaneously while maintaining a clear vantage point from a distance. The integration of advanced wireless remote control technology and power crab steering ensures high accuracy and minimal downtime during transitions between hole sets.
  • Wireless Remote Control Technology
  • Five 50 lb Pneumatic Drills
  • Power Crab Steering for On-Slab Efficiency

Features

  • Capable of both horizontal and vertical drilling with adjustable height and depth settings.
  • High-strength frame designed to tow an air compressor, creating a self-contained drilling solution.
  • Power crab steering boosts productivity by letting operators drive down the slab without raising and lowering the drill bed.
  • Equipped with solid rubber tires and power brakes for superior stability and control on the job site.

Includes

  • Wireless Remote Control Unit
  • Pointer Assembly
  • Solid Rubber Tires
  • Power Brake System
  • Auto Control System
Products specifications
Required SCFM 92.2 per drill
Minimum Cutout Width 48 inch
Weight 3,460 lbs (1,569 kg)
Required PSIG 110
Drill Distance from Top of Slab 3.5 inch to 12 inch
Drill Steel Length 24 inch Under Collar
Drill Steel Shank .875 inch x 4.25 inch
Maximum Drill Depth 18 inch
Drill Bit Diameter .625 inch to 2.5 inch
*
*
*
