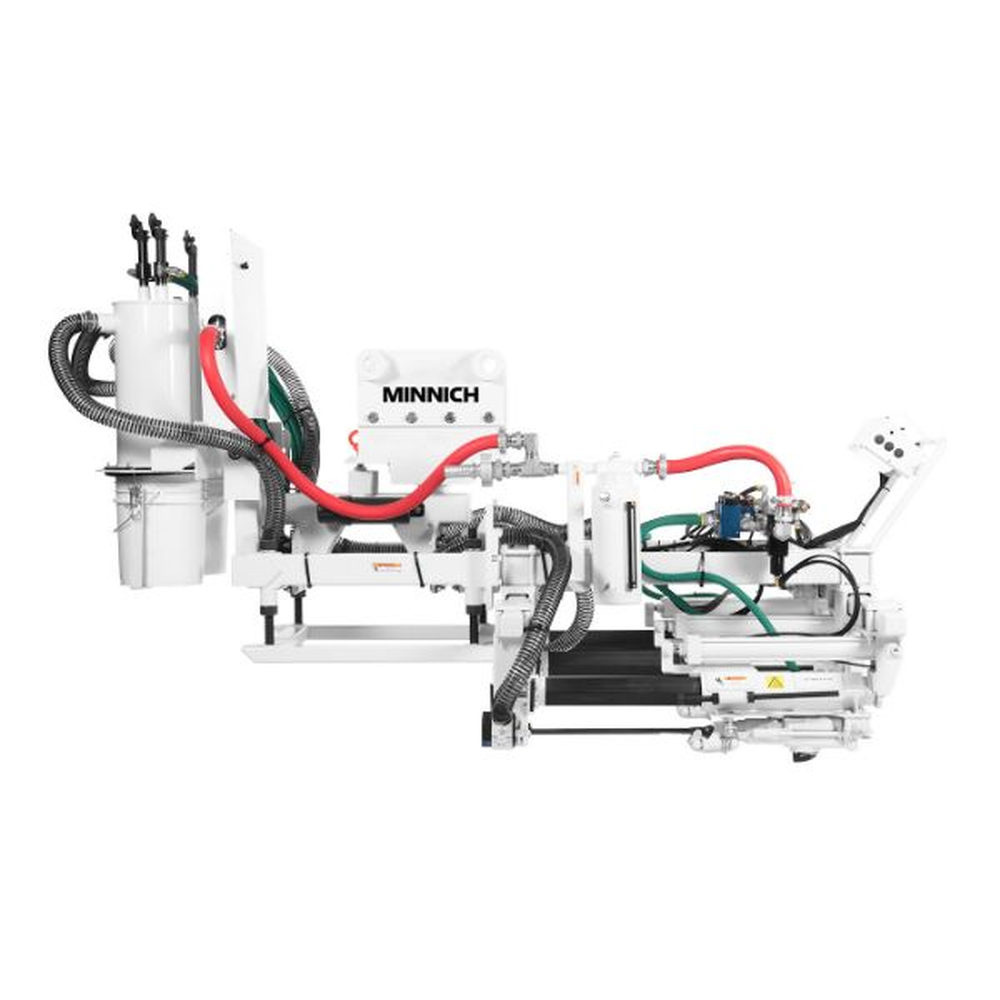

Minnich A-5SS Machine Mounted Drill

Mfr.: Minnich Manufacturing
Item #: I070741
Mfr. #: A-5SS
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $66,670.00
i h h

Description

The Minnich A-5SS is a heavy-duty, five-gang machine-mounted pneumatic drill designed for high-production horizontal drilling on large-scale concrete projects. Specifically engineered to be mounted on carriers such as backhoes or excavators, this unit allows for the simultaneous drilling of five holes, significantly increasing job site efficiency. It is the five-drill equivalent of the A-2SS model, offering the same robust reliability and precision for dowel pin applications.
  • Five 50 lb pneumatic drills mounted horizontally on a single frame
  • Heavy-duty machine-mounted design for backhoes and excavators

Features

  • Power side-shift functionality allows operators to drill in a second position without repositioning the carrier.
  • Adjustable height, depth, and drill centers provide maximum flexibility for varying project specifications.
  • Capable of drilling in any horizontal direction, making it ideal for road construction and large slab work.
  • Designed to withstand the rigors of high-volume drilling with minimal maintenance requirements.

Includes

  • Five 50 lb Horizontal Pneumatic Drills
  • Heavy-Duty Machine Mounting Frame
  • Power Side-Shift System
  • Adjustable Height and Depth Controls
Products specifications
Required SCFM Approximately 461 SCFM
Maximum Drill Depth 18 inch (45.7cm)
Required PSIG 110 PSIG
Standard Features Power side shift, adjustable centers
Orientation Horizontal
Number of Drills 5
Model A-5SS
Drill Weight 50 lbs per drill
Drill Steel Shank 0.875 inch x 4.25 inch (22.2mm x 107.9mm)
Mounting Type Machine Mounted (Backhoe / Excavator)
*
*
*
