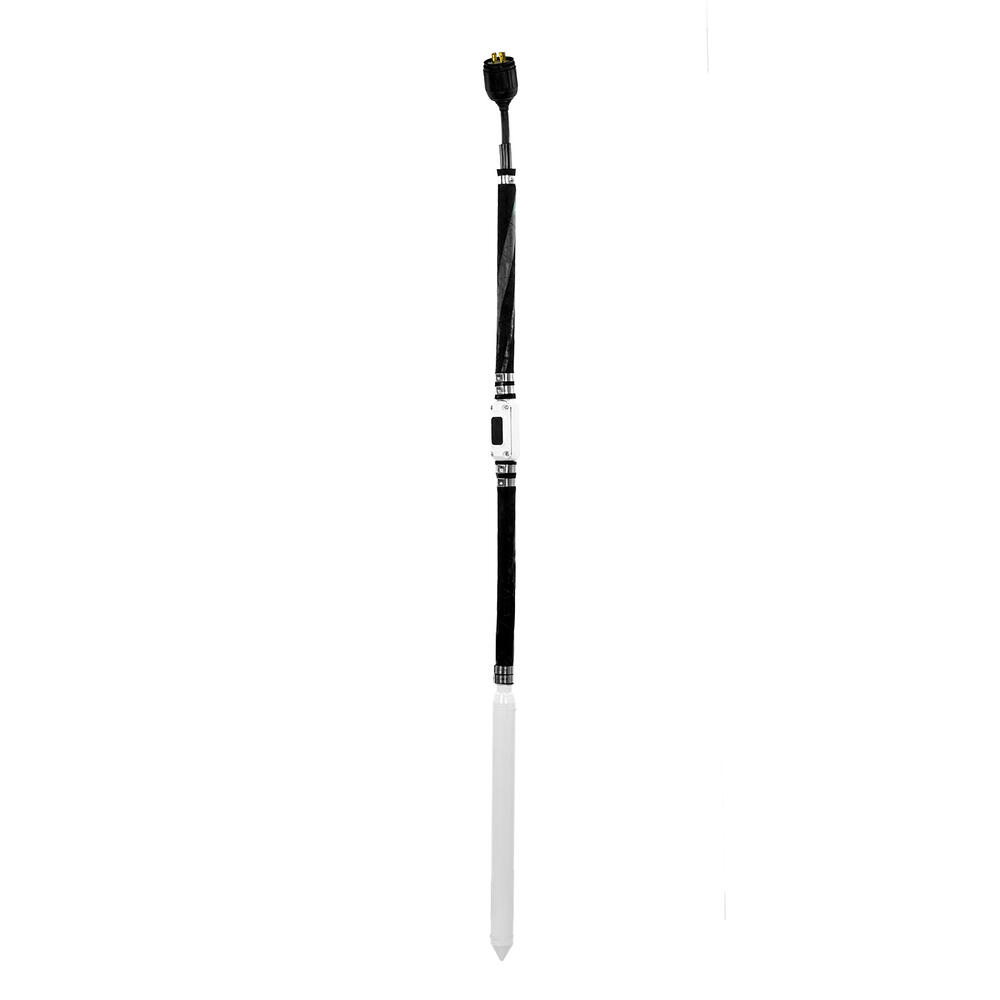

Minnich M178 High-Cycle Concrete Vibrator (230V)

Mfr.: Minnich Manufacturing

Item #: I070788

Mfr. #: A36178-23005

Pickup Delivery

Ship To Store

Free February 17 - February 22
Ship To Me (UPS)

Free February 17 - February 22

Store Location * Pickup at El Cajon | Change Delivering to 92111 | Change

Current Store
Monday - Friday: 6AM - 4PM 0 Out Of Stock for Pickup

El Cajon
1073 N. Marshall Ave El Cajon CA, 92020
Other Stores
Monday - Friday: 6AM - 4PM 0 Out Of Stock for Pickup

Buena Park
6735 Knott Ave Buena Park CA, 90620
Monday - Friday: 6AM - 4PM 951-231-9700 0 Out Of Stock for Pickup

Corona
1570 Consumer Circle Corona CA, 92878
Monday - Friday: 6AM - 4PM 0 Out Of Stock for Pickup

San Diego
4935 Mercury St. San Diego CA, 92111

Price: $2,832.00

Qty:

i h h

Overview
Specifications
Contact Us

Description

The Minnich M178 (SV-1) High-Cycle Concrete Vibrator is a high-performance, motor-in-head tool engineered for maximum productivity and operator safety in low-slump concrete applications. Featuring a compact 1-7/8 head diameter, it is specifically designed to navigate tight rebar spacing and congested formwork common in bridge pillars and large walls. This 230V electric unit delivers powerful, high-frequency vibration to eliminate air pockets and ensure a dense, uniform finish in the most demanding pours.

Motor-in-Head Design for direct energy transfer and reduced labor
Sealtite Water-Tight Connections for enhanced jobsite durability
High-Frequency Output optimized for low-slump concrete consolidation

Features

Equipped with a leakproof switch pod for greater operator safety and extended switch life.
Features a 4-prong grounded twist lock plug with a Sealtite cover for positive, water-tight power connections.
Compact 1.875' head diameter allows for efficient operation in heavily reinforced structures where larger units cannot fit.
Electric operation provides a quiet, emission-free solution suitable for indoor and enclosed jobsite environments.

Includes

M178 High-Cycle Vibrator Head (1.875')
Power Cable with 4-Prong Grounded Twist Lock Plug
Integrated Leakproof Switch Pod

Products specifications

Model Number	M178 (A36178-23005)
Series	SV-1 High-Cycle
Voltage	230 V
Horsepower	3 HP
Frequency	180 Cycles (CY)
Head Diameter	1.875 inch (47.6 mm)
Head Length	19 inch
Centrifugal Force (10800 VPM)	716 - 784 FT/LBS
Radius of Influence	12 inch - 16 inch
Amplitude (Peak to Peak)	0.82 inch
Weight	41 LBS
