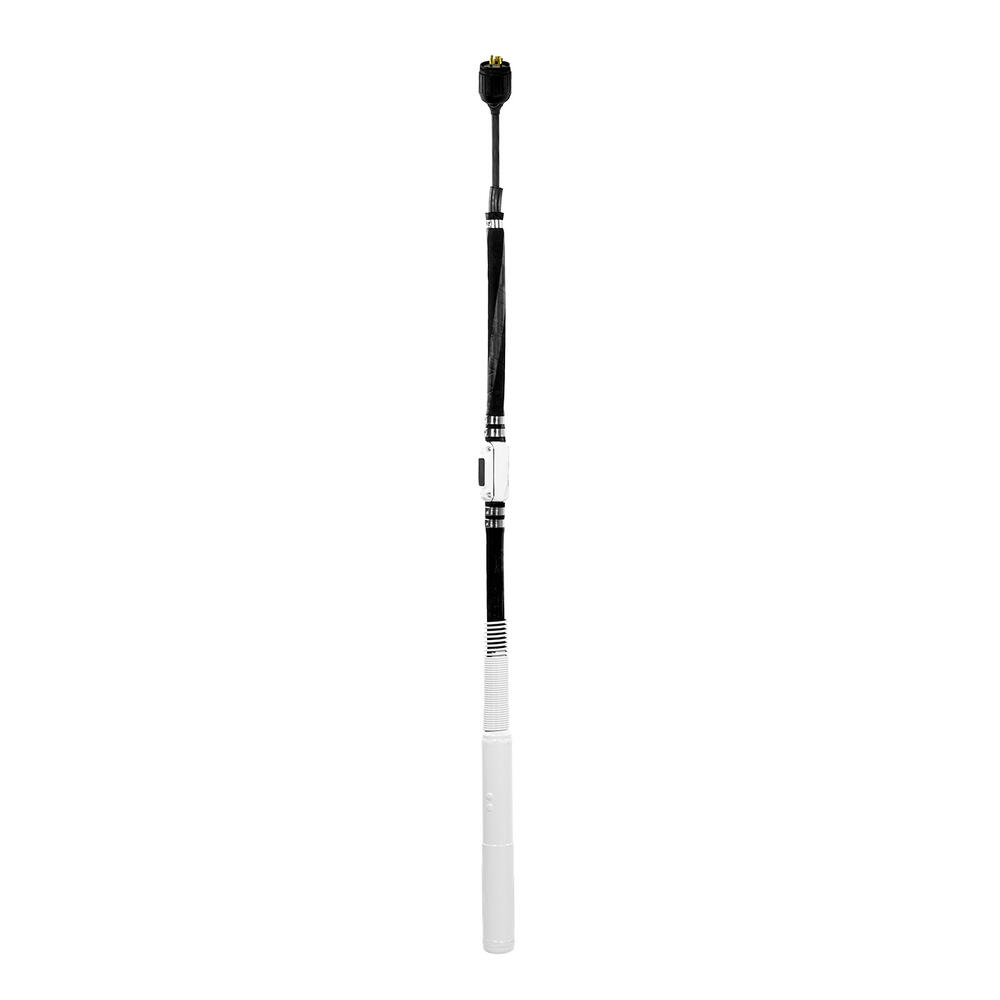

Minnich M258 High Cycle Concrete Vibrator (230V, 5ft Hose)

Item #: I070781
Mfr. #: A36258-23005
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2,832.00
i h h

Description

The Minnich M258 High Cycle Concrete Vibrator is a heavy-duty motor-in-head solution engineered for the most demanding low-slump concrete applications, such as bridge pillars, structural walls, and deep foundations. This 230-volt unit maximizes jobsite productivity by delivering consistently high frequencies and exceptional centrifugal force to ensure thorough and uniform consolidation. Built for long-term reliability, it features rugged, waterproof components designed to thrive in harsh construction environments. The M258 is specifically optimized to maneuver through dense rebar and tight formwork where high-frequency vibration is essential for a quality finish.
  • Motor-in-Head Efficiency
  • Waterproof Sealtite Connections
  • Low-Slump Concrete Optimized
  • High Centrifugal Force

Features

  • Provides up to 2,050 FT/LBS of centrifugal force at 10,800 VPM for rapid air removal.
  • Equipped with a 4-prong grounded twist lock plug and Sealtite cover for positive water-tight connections.
  • Features a leakproof switch pod for enhanced operator safety and extended switch life.
  • Designed to operate on 230V, 3-phase, 180-cycle power for consistent performance under load.

Includes

  • M258 High Cycle Vibrator Head (2.625' Diameter)
  • 5-Foot Hose and Cable Assembly
  • 4-Prong Grounded Twist Lock Plug
  • Sealtite Waterproof Cover
Products specifications
Model Number M258-05 (A36258-23005)
Head Diameter 2.625 inches (66.67 mm)
Head Length 18 inches
Power Requirements 230 V, 3-Phase, 180 Cycle
Centrifugal Force 750ftlb@6k, 1.1kftlb@8k, 2.05kftlb@10.8k
Radius of Influence 9 - 12 inches
Amplitude 0.112 inches
Shipping Weight 44 lbs
*
*
*
