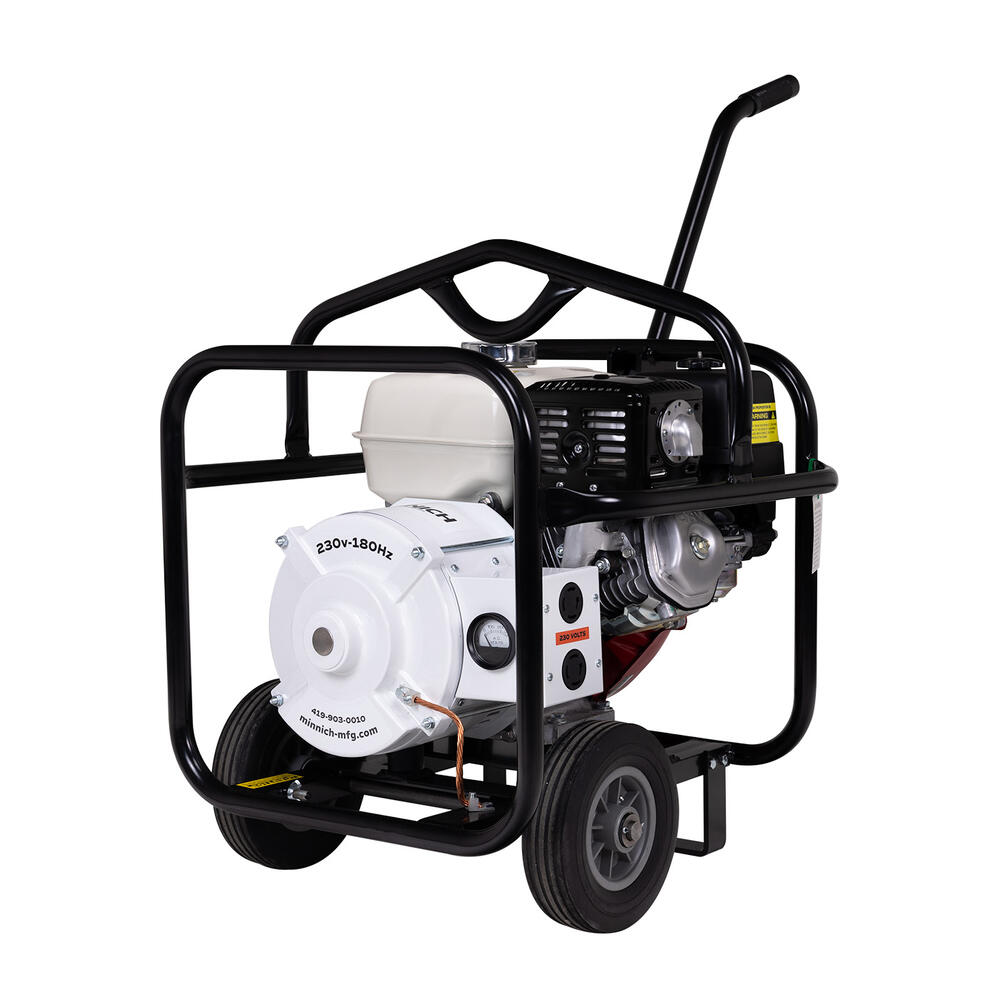

Minnich MHA-2CW High Cycle Generator (230V Model C)

Mfr.: Minnich Manufacturing

Item #: I070780

Mfr. #: A36035-00000

Pickup Delivery

Ship To Store

Free February 17 - February 22
Ship To Me (UPS)

Free February 17 - February 22

Store Location * Pickup at El Cajon | Change Delivering to 92111 | Change

Current Store
Monday - Friday: 6AM - 4PM 0 Out Of Stock for Pickup

El Cajon
1073 N. Marshall Ave El Cajon CA, 92020
Other Stores
Monday - Friday: 6AM - 4PM 0 Out Of Stock for Pickup

Buena Park
6735 Knott Ave Buena Park CA, 90620
Monday - Friday: 6AM - 4PM 951-231-9700 0 Out Of Stock for Pickup

Corona
1570 Consumer Circle Corona CA, 92878
Monday - Friday: 6AM - 4PM 0 Out Of Stock for Pickup

San Diego
4935 Mercury St. San Diego CA, 92111

Price: $6,490.00

Qty:

i h h

Overview
Specifications
Contact Us

Description

The Minnich MHA-2CW is a heavy-duty 230V high-cycle generator designed specifically to power electric high-cycle concrete vibrators on professional jobsites. This Model C unit provides the consistent 180Hz frequency and high-amplitude vibration required for superior concrete consolidation and minimal aggregate disturbance. Engineered for the rigors of construction, it features a simplified design with fewer parts to ensure long-term reliability and reduced maintenance costs. The portable unit is built around a protective cradle frame and includes an integrated wheel kit for easy maneuvering across rugged terrain.

Optimized High-Cycle Output
Heavy-Duty Cradle Frame
Integrated Wheel Kit
Honda GX Series Engine Compatibility

Features

Reliable 230V, 180Hz power delivery ensures consistent vibrations per minute (VPM) for multiple vibrators.
Ruggedized Model C generator head is designed for continuous duty in demanding paving and wall applications.
Equipped with a dual-receptacle configuration to support simultaneous operation of two high-cycle vibrators.
Compact cradle frame design protects vital engine and generator components from jobsite impacts.

Includes

MHA-2CW Generator Assembly (Model C)
Cradle Support Frame
Jobsite Wheel Kit (Axle, Tires, and Handle)
Owner's Manual and Service Guide

Products specifications

Model Number	MHA-2CW
Part Number	A36035-00000
Voltage	230V AC
Frequency	180 Hz (High Cycle)
Output Capacity	Approx. 4 KW (3 HP)
Receptacles	2
Frame Type	Cradle Frame with Wheels
Engine Type	Gasoline (Typically Honda GX Series)
SeriesSuccessor	Minnich M-Gen Series Gen
