Minnich Multi-Purpose Sprayer (25' Drum Mount Assembly)

Mfr.: Minnich Manufacturing
Item #: I070795
Mfr. #: A13690-00025
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5,251.00
i h h

Description

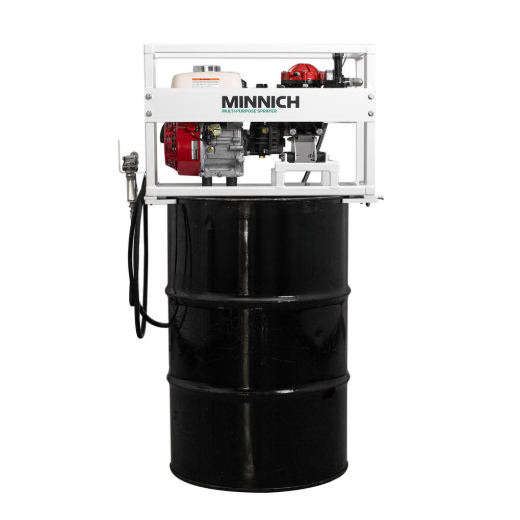

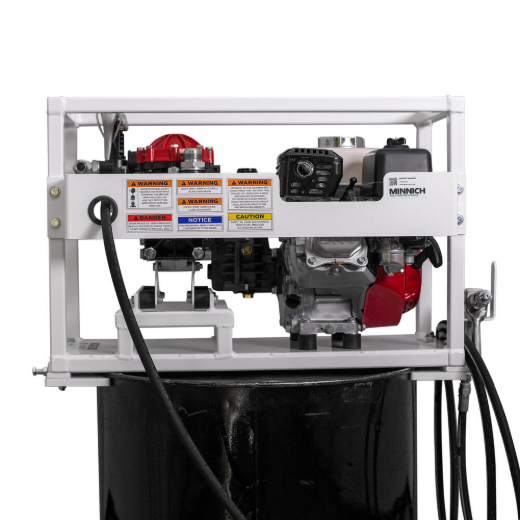

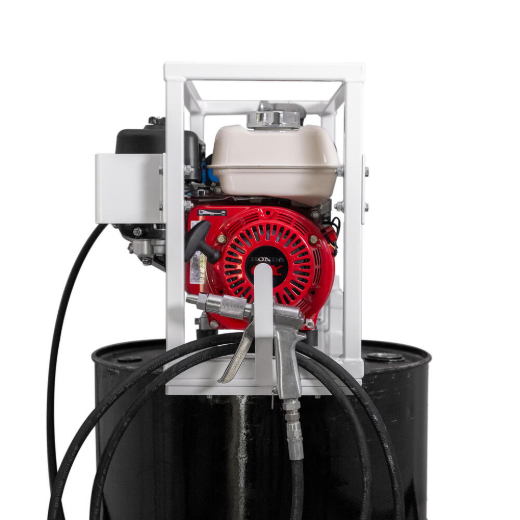

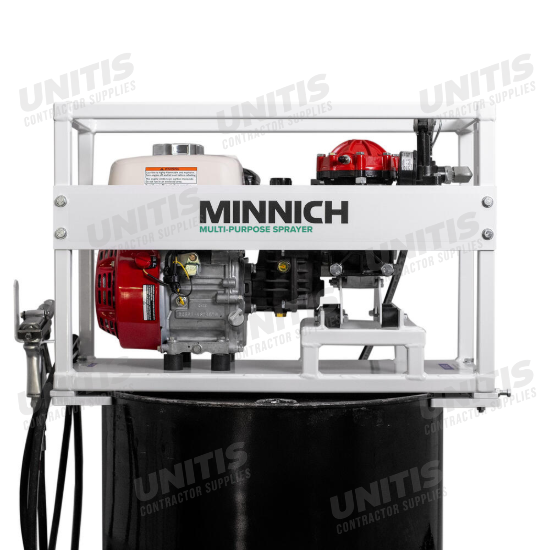

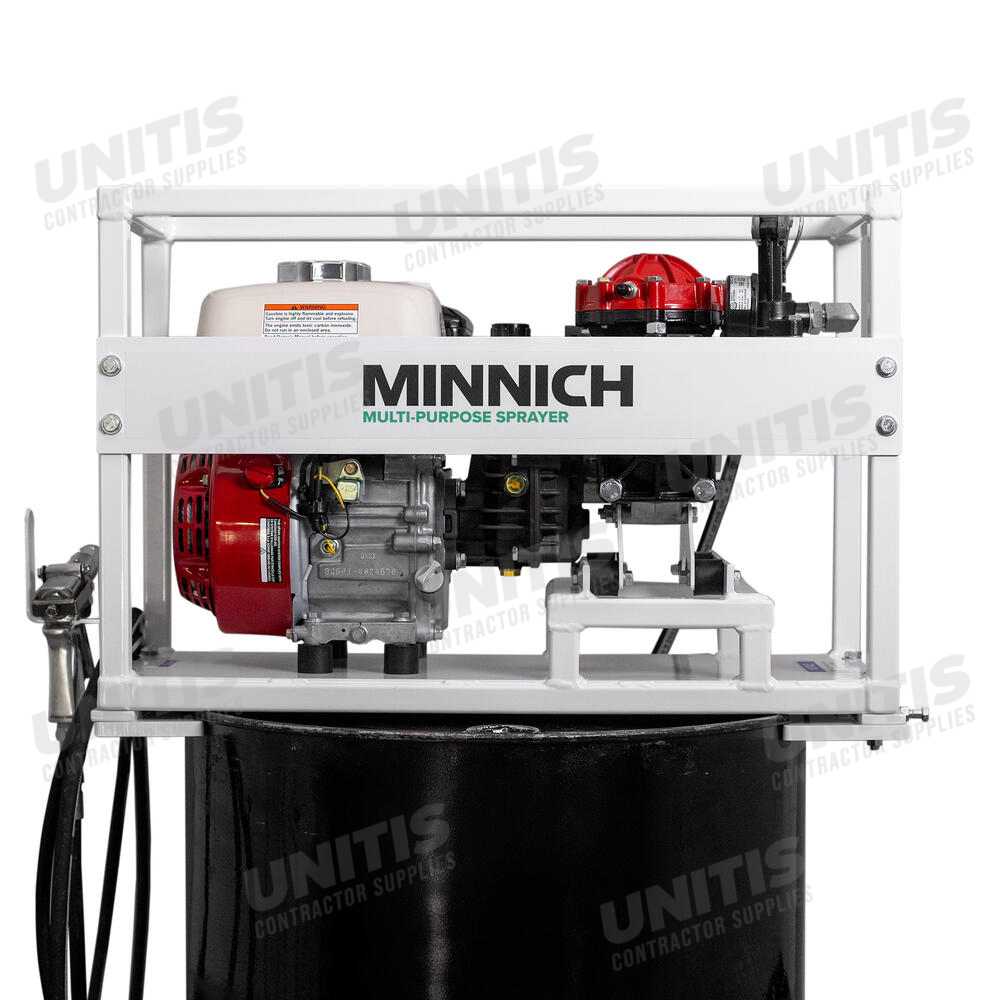

The Minnich Multi-Purpose Sprayer (A13690-00025) is a powerful and versatile 25-foot drum-mount assembly designed to streamline the application of concrete chemicals. Powered by a dependable 5.5 HP Honda GX160 engine, this unit is engineered to efficiently apply water-based sealants, curing agents, and release agents on large-scale projects such as roads and bridges. Its unique circulatory system ensures consistent material mixing, while the drum-mount design offers exceptional flexibility for diverse jobsite requirements.
  • High-Performance Honda GX160 Engine
  • Efficient Diaphragm Pump with 9.5 GPM Flow

Features

  • Mounts directly to standard 55-gallon drums for easy transport and operation.
  • Integrated circulatory system keeps materials mixed and prevents settling during application.
  • Adjustable pressure settings (up to 350 PSI) allow for precise control based on material viscosity.
  • Equipped with a large 1-inch intake hose to maximize flow and reduce motor strain.

Includes

  • Honda GX160 Motor and Diaphragm Pump Assembly
  • 25-Foot Hydraulic Discharge Hose
  • Durable Aluminum Spray Gun with Adjustable Fan Nozzle
  • 1-Inch Intake Hose and Mounting Hardware
Products specifications
Discharge Hose Diameter 3/8 inch
Intake Hose Diameter 1 inch
Maximum Solid Content 35%
Compatibility Standard 55-Gallon Drums
Weight 134 lbs
Maximum Flow Rate 9.5 GPM
Engine Honda GX160 (5.5 HP)
Maximum Pressure 350 PSI
Hose Length 25 Feet
Pump Type Diaphragm with circulatory system
*
*
*
