Minnich VH-32C Flex Shaft Vibrator Head (Polyurethane Coated)

Mfr.: Minnich Manufacturing
Item #: I070765
Mfr. #: 0A2232-00002
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $472.00
i h h

Description

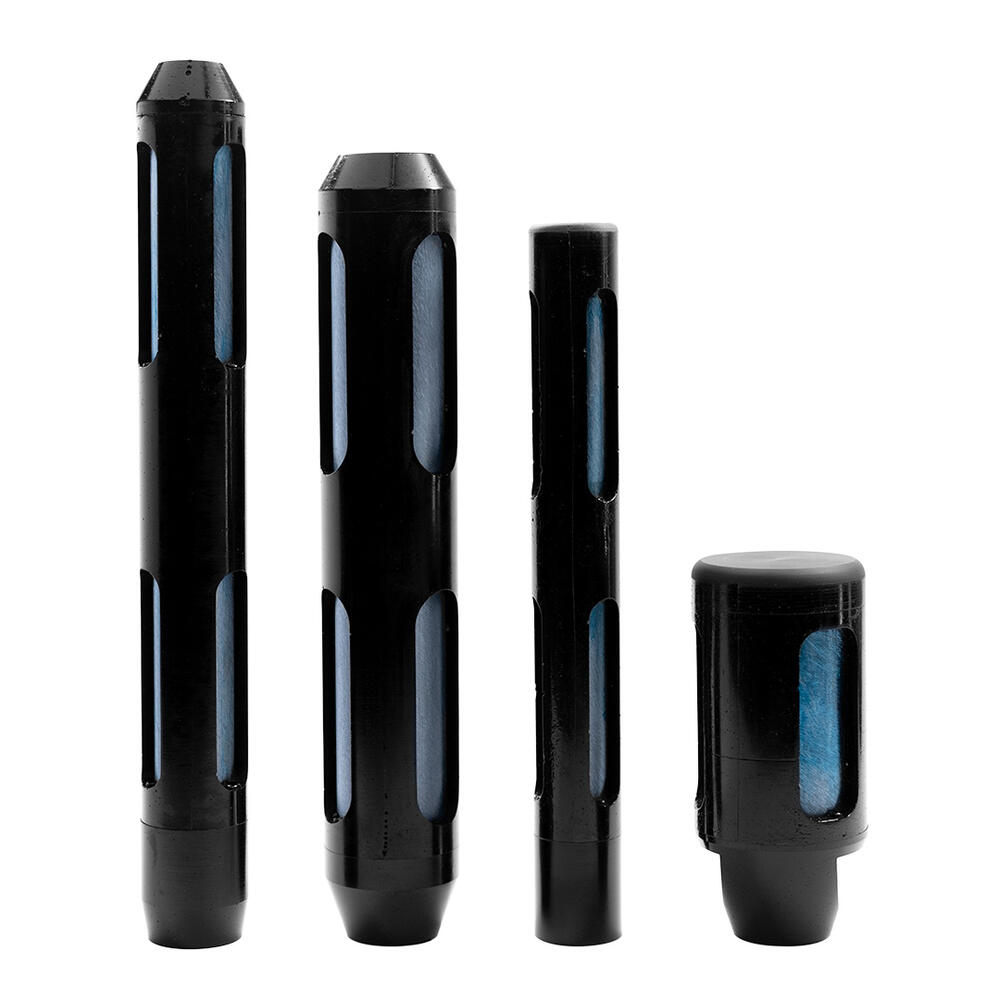

The Minnich VH-32C is a high-performance concrete vibrator head specifically engineered for use with flex shaft vibrator systems. It features a specialized polyurethane coating that provides a larger footprint and protects epoxy-coated rebar from damage during the consolidation process. Manufactured with high-quality steel and heavy-duty bearings, this head is designed for exceptional durability and a long service life in demanding job site conditions.
  • Polyurethane Coated for Protection
  • Heavy-Duty Internal Bearings
  • High-Quality Steel Construction

Features

  • Optimized for epoxy-coated rebar applications to prevent surface marring.
  • Compatible with Minnich 'The Stinger' and CSV (Control Speed Vibrator) electric motors.
  • Provides consistent centrifugal force for efficient concrete consolidation.

Includes

  • VH-32C Vibrator Head with Polyurethane Coating
Products specifications
Head Diameter (Coated) 1.63 in (approx. 1-5/8 in)
Head Diameter (Steel Base) 1.13 in (1-1/8 in)
Material Polyurethane-coated Steel
Head Type Coated Flex Shaft Head
Model Number VH-32C
Part Number 0A2232-00002
Compatibility Minnich Flex Shaft Vib Sys (Stinger/CSV)
Centrifugal Force (CF) 150 lbf
*
*
*
