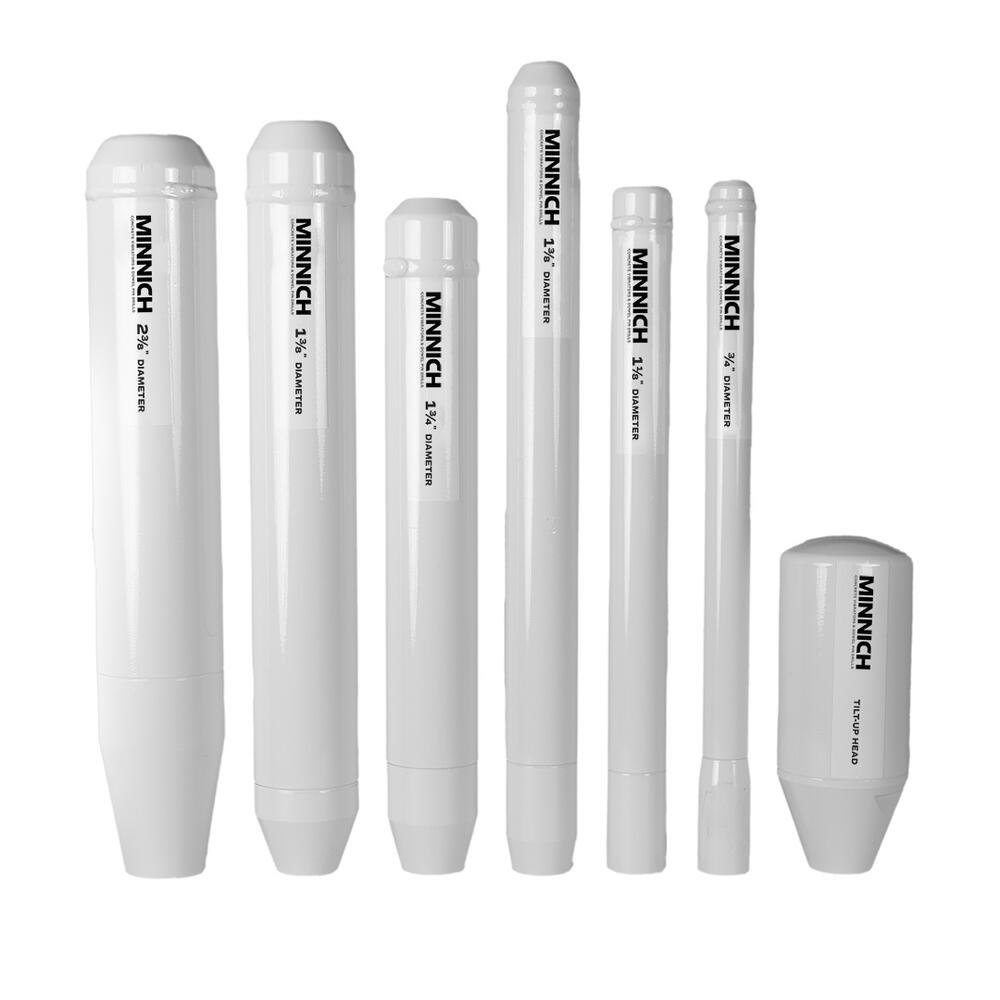

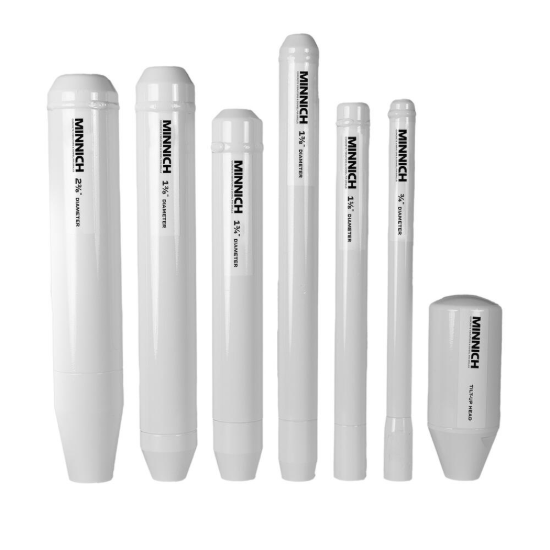

Minnich VH-85C Coated Tilt-Up Vibrator Head

Mfr.: Minnich Manufacturing
Item #: I070769
Mfr. #: A11185-00001
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $772.90
i h h

Description

The Minnich VH-85C is a high-performance concrete vibrator head specifically engineered for tilt-up construction and specialized paving applications. This assembly features a durable polyurethane coating that protects the vibrating head from premature wear and prevents damage to epoxy-coated rebar during consolidation. Its unique short-head design allows for excellent maneuverability in congested forms and shallow pours where traditional longer heads cannot operate effectively. By delivering consistent centrifugal force, the VH-85C ensures optimal concrete density and a high-quality surface finish.
  • Protective Polyurethane Coating
  • Specialized Tilt-Up Short-Head Design
  • Epoxy-Coated Rebar Safe

Features

  • Optimized for the unique demands of tilt-up wall panels, horizontal slabs, and shallow structural pours.
  • The polyurethane armor coating adds significant abrasion resistance, extending the service life of the head in harsh aggregates.
  • Manufactured with high-quality steel and heavy-duty internal bearings to maintain performance under continuous use.
  • Compatible with Minnich Stinger and CSV electric flex shaft motors for versatile job site compatibility.

Includes

  • VH-85C Coated Tilt-Up Vibrator Head Assembly
Products specifications
Head Diameter (Coated) 3.0 in
Head Length (Steel Base) 6.0 in
Head Diameter (Steel Base) 2.5 in (63.5 mm)
Model VH-85C
Part Number A11185-00001
Head Length (Coated) 6.5 in
Head Type Flex Shaft Tilt-Up
Coating Material Polyurethane
Radius of Influence 14 in - 16 in
Centrifugal Force 656 lbs @ 10,000 VPM
Amplitude 0.10 in (2.54 mm)
*
*
*
