Mirafi 1100NC Nonwoven Filter Fabric - 15' x 300' (4500 sf)

Mfr.: Solmax - Mirafi
Item #: I038188
Mfr. #: 1100NC/15/300
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Digital Downloads
Price: $1,175.46
i h h

Description

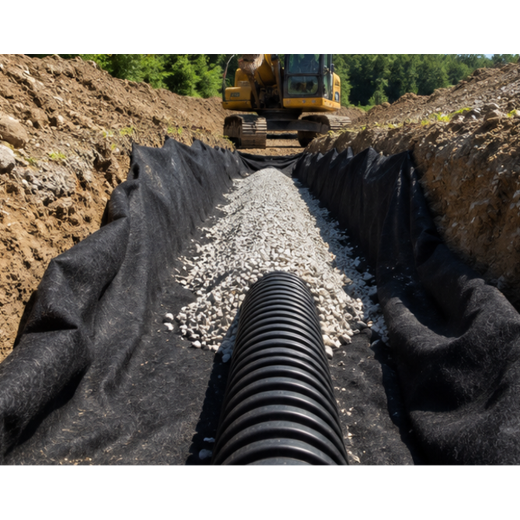

MIRAFI 1100NC is a nonwoven polypropylene geotextile designed for soil separation, filtration, and drainage. It combines high water flow rates with excellent soil particle retention.
  • High permittivity for high water flow rates and excellent soil retention
  • Chemically stable in aggressive environments
  • Cost-effective alternative to graded aggregate filters
  • Conforms easily to ground or trench surfaces

Features

  • Nonwoven polypropylene construction
  • High permittivity properties
  • Excellent soil particle retention
  • Durable and chemically stable

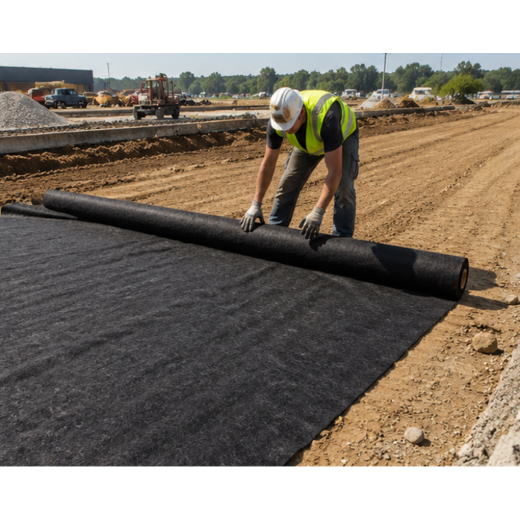

  • Easy installation

Specifications


Product TypeNonwoven Filter FabricMaterialPolypropylene
Width15 ftLength300 ft
Area4500 sf
Products specifications
Apparent Opening Size #80 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 550 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 4500 sf
Geotextile Type Nonwoven
Grab Tensile Strength 205 lb
Mass per Unit Area 8 oz/yd²
Permittivity 1.4 sec⁻¹
Polymer Type Polypropylene
Roll Length 300 ft
Roll Width 15 ft
Series 1100NC
Trapezoidal Tear Strength 80 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 100 gpm/ft²
*
*
*
