Mirafi 140N Nonwoven Filter Fabric - 6.25' x 360' (2250 sf)

Mfr.: Solmax - Mirafi
Item #: I056454
Mfr. #: 140N/6.25/360
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Digital Downloads
Price: $313.15
i h h

Description

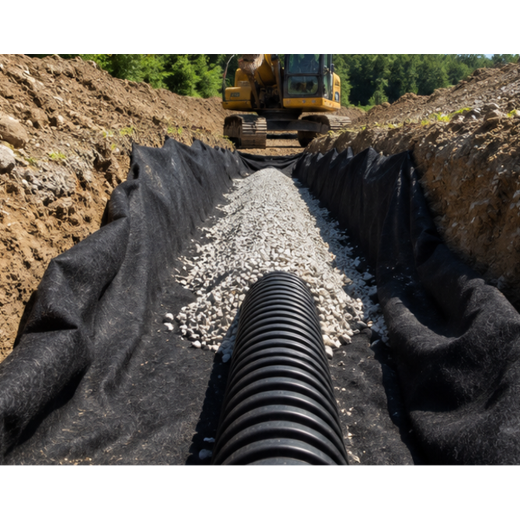

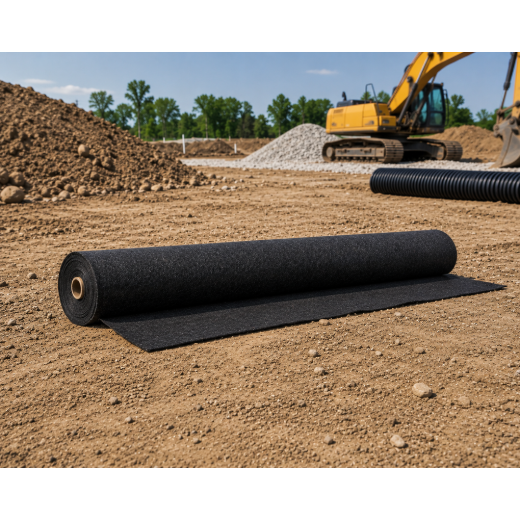

MIRAFI 140N is a nonwoven polypropylene geotextile designed for soil separation, filtration, and drainage. It combines high water flow rates, high soil interaction, and durability while providing excellent soil particle retention.
  • High permittivity properties provide high water flow rates and excellent soil retention
  • Chemically stable for performance in a wide range of aggressive environments
  • Cost-effective alternative to graded aggregate filters

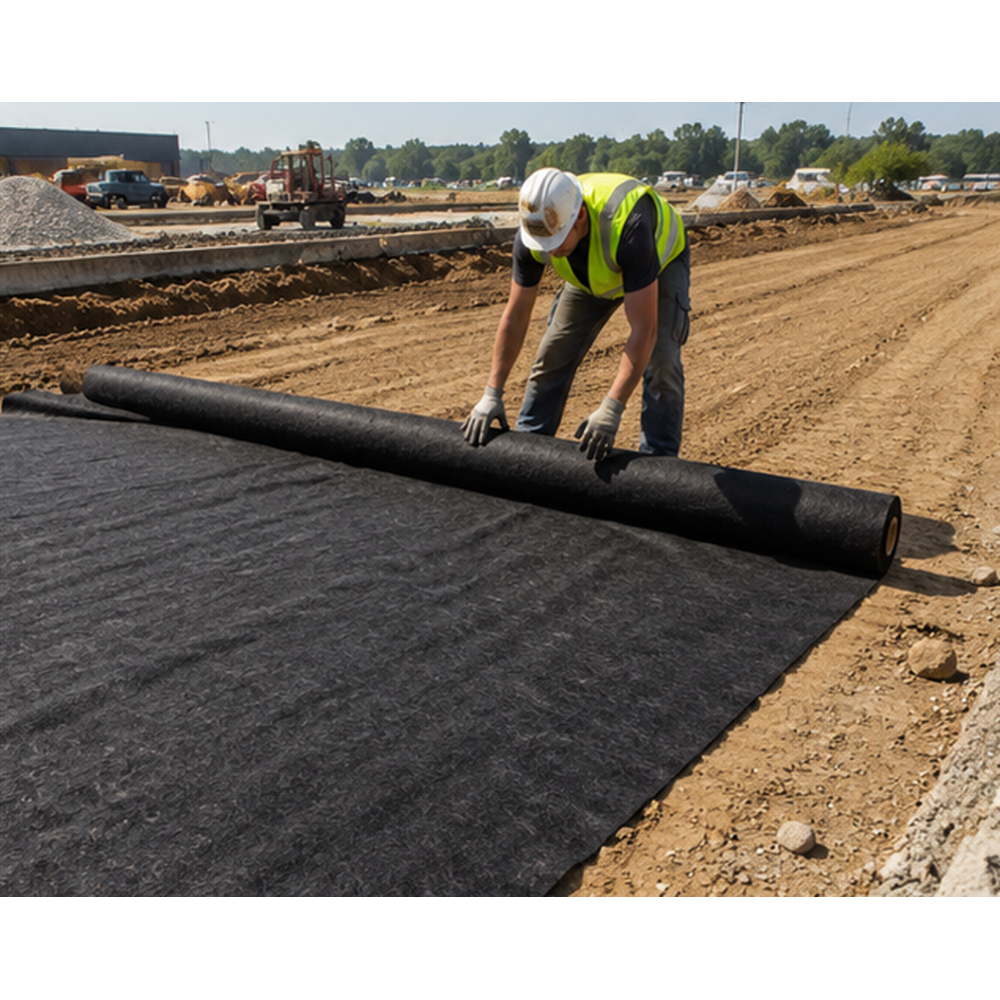

  • Conforms easily to the ground or trench surface for trouble-free installation

Features

  • Nonwoven polypropylene geotextile
  • Used for soil separation, filtration, and drainage
  • High water flow rates and excellent soil retention
  • Chemically stable in aggressive environments
  • Easy installation due to conformability

Specifications


Product NameMIRAFI 140NTypeNonwoven Filter Fabric
MaterialPolypropyleneWidth6.25 ft
Length360 ftArea2250 sf
Products specifications
Apparent Opening Size #70 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 310 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 2250 sf
Geotextile Type Nonwoven
Grab Tensile Strength 120 lb
Mass per Unit Area 4 oz/yd²
Permittivity 1.8 sec⁻¹
Polymer Type Polypropylene
Roll Length 360 ft
Roll Width 6.25 ft
Series 140N
Trapezoidal Tear Strength 50 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 135 gpm/ft²
*
*
*
