Mirafi 140NC Nonwoven Filter Fabric - 12.5' x 360' (4500 sf)

Mfr.: Solmax - Mirafi
Item #: I008596
Mfr. #: 140NC/12.5/360
*
Pickup at Corona | Change Delivering to 92111 | Change

Digital Downloads
Price: $549.15
i h h

Description

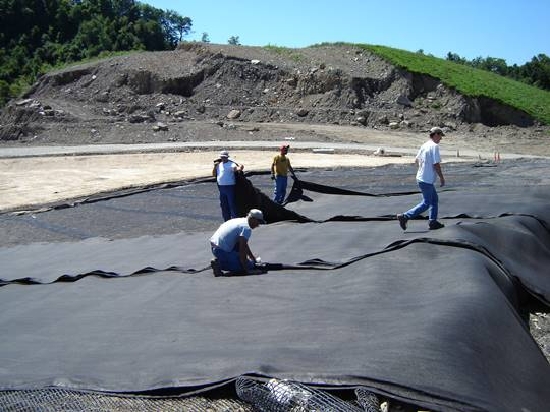

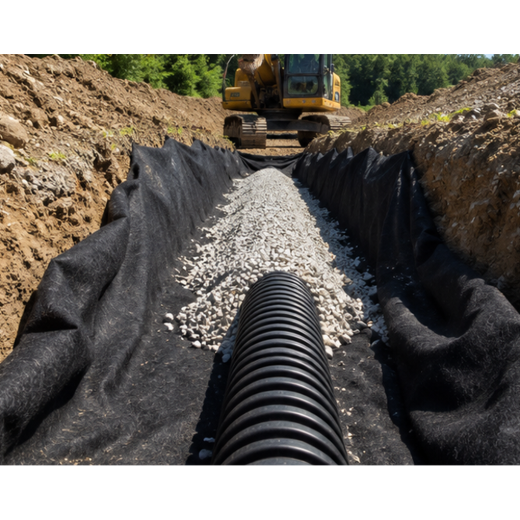

MIRAFI 140NC is a nonwoven polypropylene geotextile designed for soil separation, filtration, and drainage. It combines high water flow rates with excellent soil particle retention.
  • High permittivity for high water flow and soil retention
  • Chemically stable in aggressive environments
  • Cost-effective alternative to graded aggregate filters
  • Conforms easily to ground or trench surfaces

Features

  • Nonwoven polypropylene construction
  • High water flow rates
  • Excellent soil retention
  • Durable and chemically stable

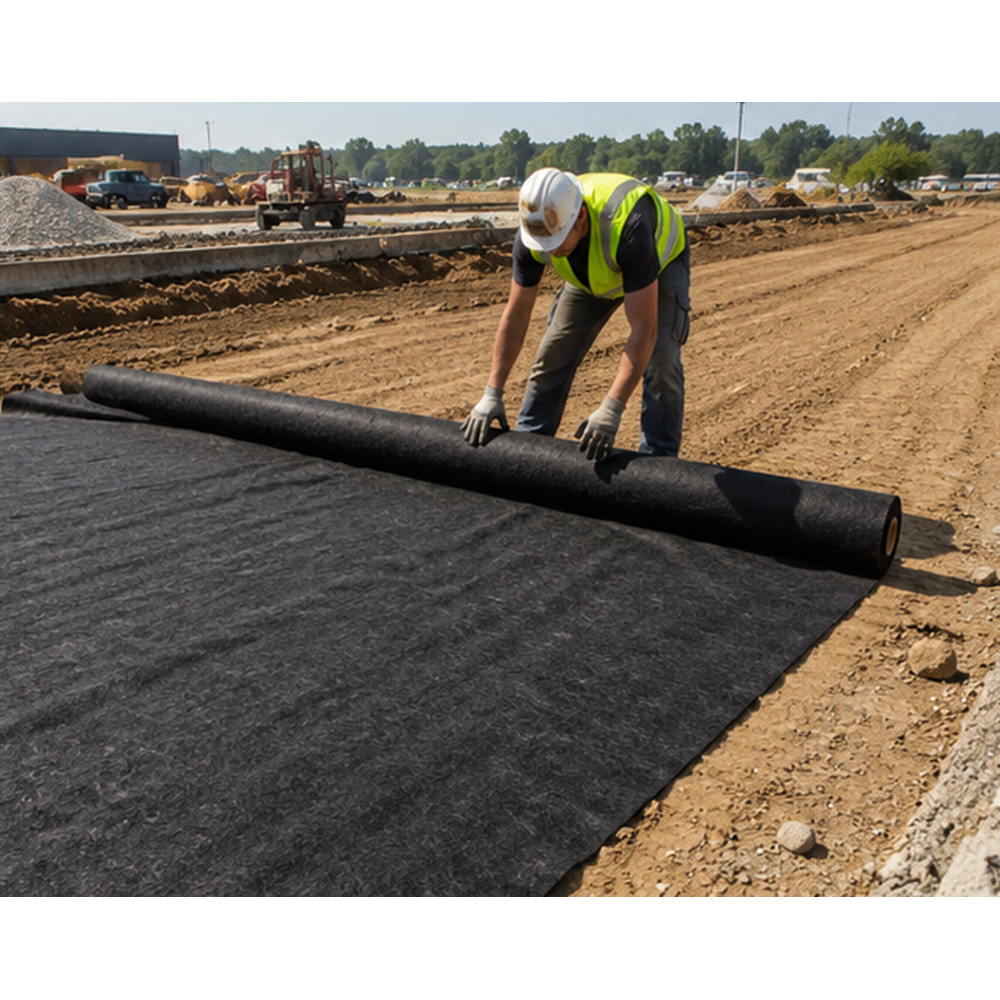

  • Easy installation

Specifications


Product TypeNonwoven GeotextileMaterialPolypropylene
SeriesMIRAFI N-SeriesModel140NC
Fabric ConstructionNonwovenApplicationFiltration, Drainage, Separation
Products specifications
Apparent Opening Size #70 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 310 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 4500 sf
Geotextile Type Nonwoven
Grab Tensile Strength 120 lb
Mass per Unit Area 4 oz/yd²
Permittivity 1.8 sec⁻¹
Polymer Type Polypropylene
Roll Length 360 ft
Roll Width 12.5 ft
Series 140NC
Trapezoidal Tear Strength 50 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 135 gpm/ft²
*
*
*
