Mirafi 160N Nonwoven Filter Fabric - 15' x 300' (4500 sf)

Mfr.: Solmax - Mirafi
Item #: I019631
Mfr. #: 160N/15/300
*
Pickup at Corona | Change Delivering to 92111 | Change

Digital Downloads
Price: $735.23
i h h

Description

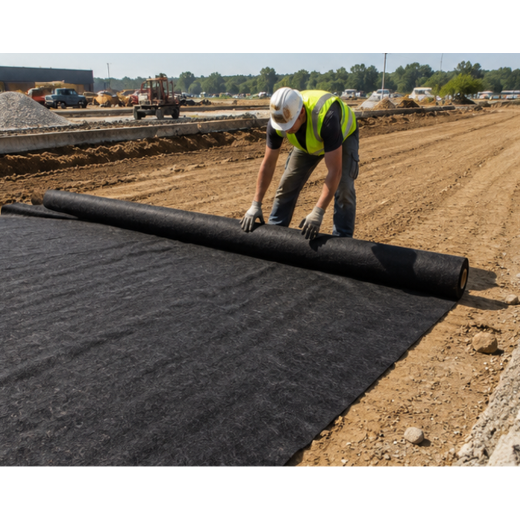

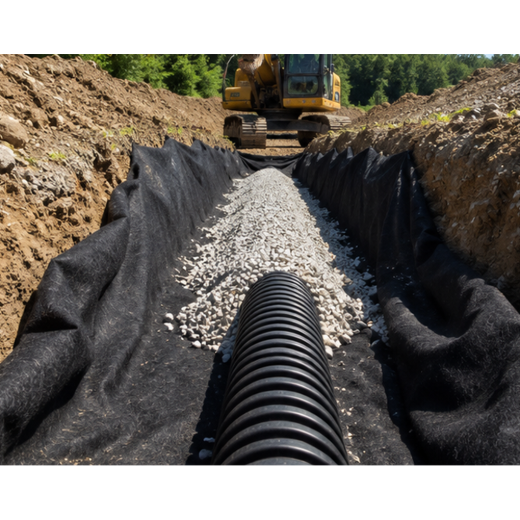

MIRAFI 160N is a nonwoven polypropylene geotextile designed for filtration, separation, and drainage applications. It provides high water flow rates and excellent soil retention.
  • High permittivity for high water flow
  • Excellent soil particle retention
  • Chemically stable in aggressive environments
  • Cost-effective alternative to graded aggregate filters
  • Conforms easily to ground surfaces

Features

  • Nonwoven polypropylene construction
  • High water flow rates
  • Excellent soil retention
  • Chemical stability
  • Easy installation

Includes

  • 1 roll of Mirafi 160N (15' x 300')

Specifications


Product TypeNonwoven GeotextileMaterialPolypropylene
Width15 ftLength300 ft
Area4500 sq ftSeriesN-Series
Products specifications
Apparent Opening Size #80 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 410 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 4500 sf
Geotextile Type Nonwoven
Grab Tensile Strength 160 lb
Mass per Unit Area 6 oz/yd²
Permittivity 1.5 sec⁻¹
Polymer Type Polypropylene
Roll Length 300 ft
Roll Width 15 ft
Series 160N
Trapezoidal Tear Strength 60 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 110 gpm/ft²
*
*
*
