Mirafi HP270 Woven Geotextile - 15' x 300' (4500 sf)

Mfr.: Solmax - Mirafi
Item #: I055201
Mfr. #: HP270/15/300
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Digital Downloads
Price: $1,320.69
i h h

Description

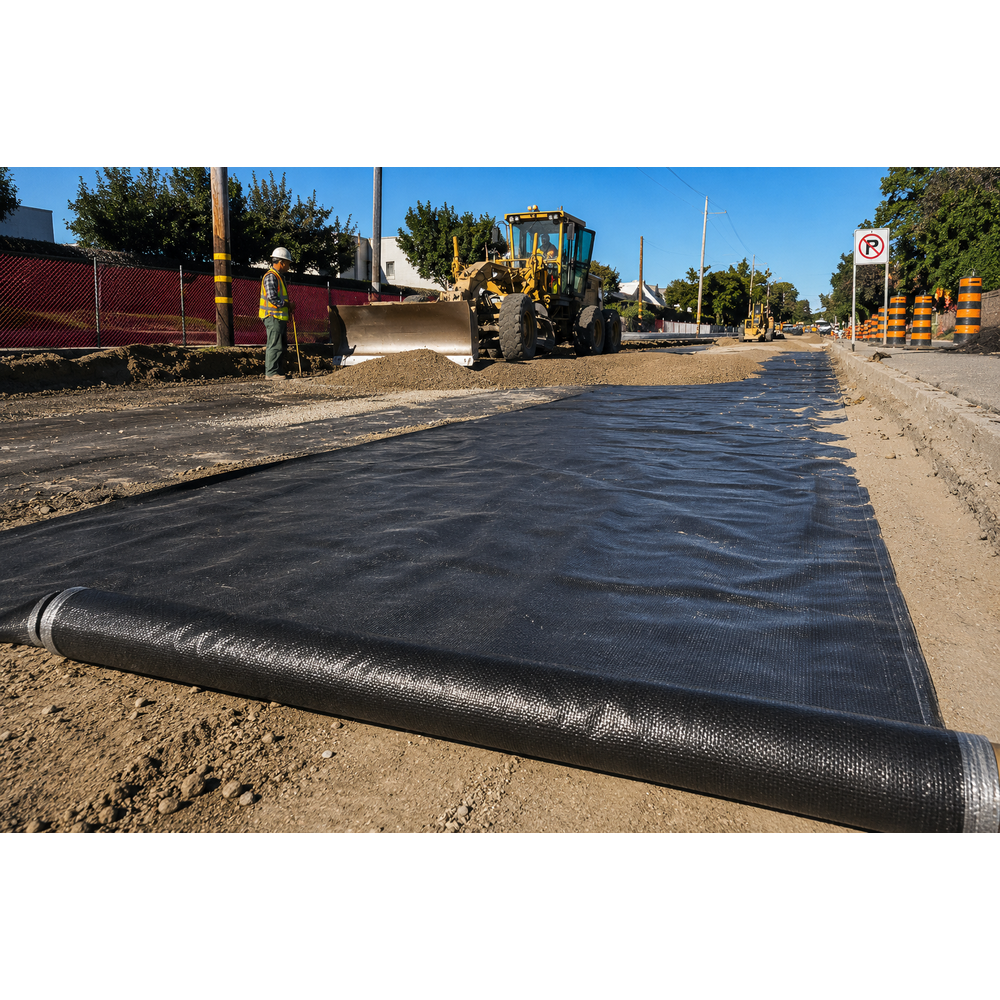

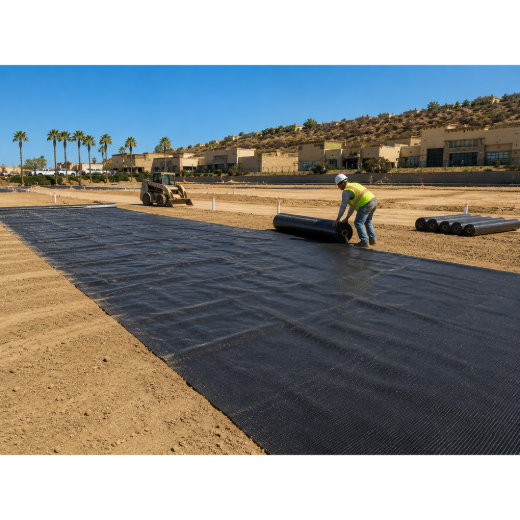

MIRAFI HP270 is a woven geotextile designed for soil stabilization and layer separation, providing strength and durability for roads, railways, and embankment stabilization.
  • Excellent separation factors with controlled filtration and drainage
  • Resists damage from moderate to severe stresses during installation
  • Available in multiple roll sizes
  • Panels can be sewn together in factory or field

Features

  • Woven geotextile for soil and aggregate reinforcement
  • Provides separation, filtration, and drainage
  • High strength and durability
  • Resists installation stresses
  • Customizable roll sizes

Specifications


Product TypeWoven GeotextileSeriesHP-Series
Roll Size15 x 300 (4500 sf)ApplicationsRoads, railways, embankment stabilization
Products specifications
Apparent Opening Size #40 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 700 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 4500 sf
Geotextile Type Woven
Grab Tensile Strength 275 lb
Mass per Unit Area 7.6 oz/yd²
Permittivity 0.6 sec⁻¹
Polymer Type Polypropylene
Roll Length 300 ft
Roll Width 15 ft
Series HP270
UV Resistance 70% @ 500 hr
Water Flow Rate 45 gpm/ft²
Wide Width Tensile Strength 1990 lb/ft
*
*
*
