Mirafi Miragrid 20XT Geogrid - 12' x 200' (2400 sf)

Mfr.: Solmax - Mirafi
Item #: I038139
Mfr. #: 20XT/12/200
*
Pickup at San Diego | Change Delivering to 90001 | Change

Digital Downloads
Price: $1,772.47
i h h

Description

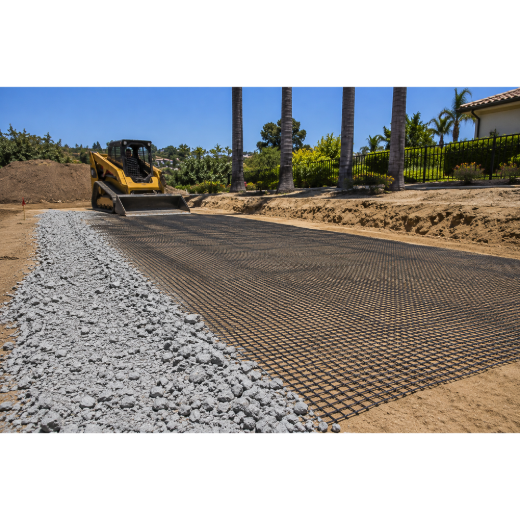

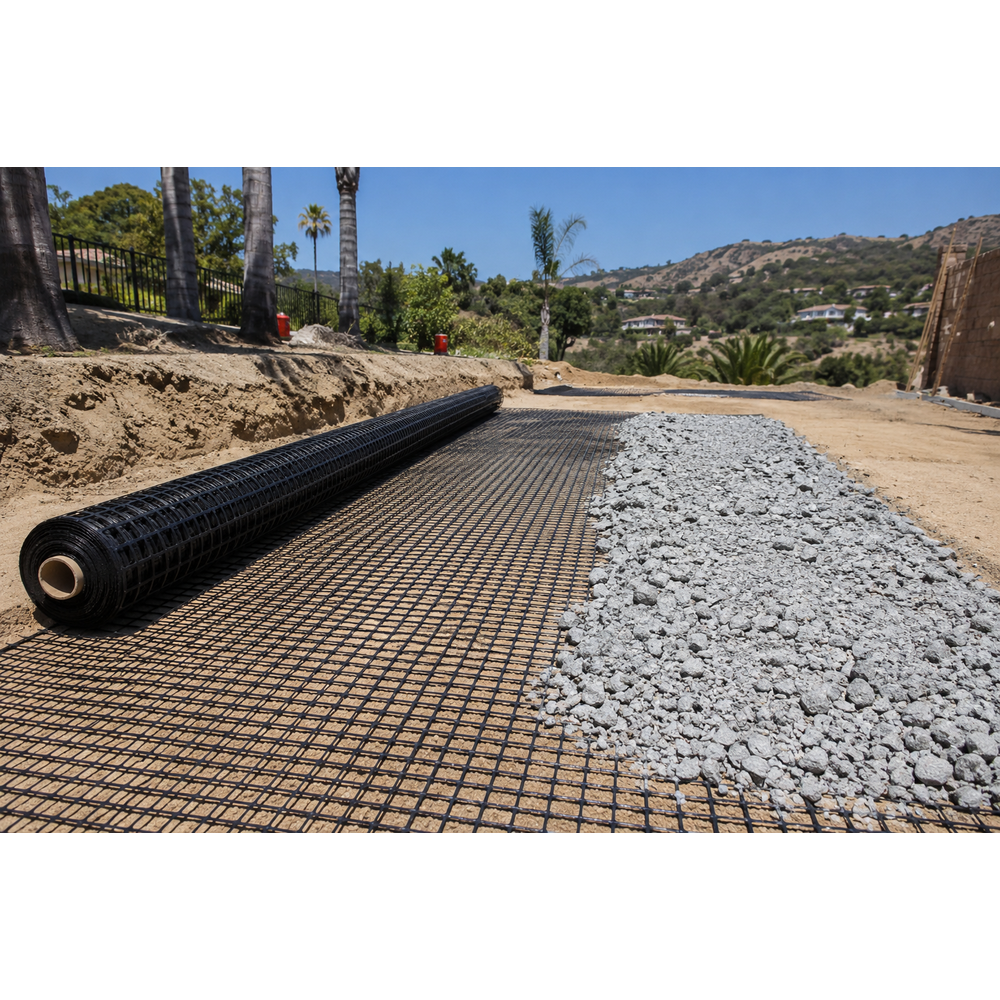

MIRAGRID XT geogrids are the premier solution for soil reinforcement in Mechanically Stabilized Earth (MSE) Walls and Reinforced Soil Slope (RSS) structures. The 20XT variant is designed for high-performance reinforcement applications.
  • Geosynthetic solutions for soil reinforcement
  • Designed for MSE walls and RSS structures

Features

  • Permanent welded wire mesh geogrid
  • Reinforces soil in MSE walls and slopes
  • Available in various strengths including 20XT

Specifications


Product TypeGeogridSeriesMIRAGRID XT-Series
Model20XTApplicationSoil reinforcement for MSE walls and RSS structure
Products specifications
Application Soil Reinforcement
Certifications ASTM D6637 Compliant
Color Black
Country of Origin USA (subject to change)
Coverage Area 2400 sf
Geotextile Type Geogrid
Polymer Type Polyester
Roll Length 200 ft
Roll Width 12 ft
Series Miragrid 20XT
UV Resistance 70% retained @ 500 hr
Wide Width Tensile Strength 16450 lb/ft (MD)
*
*
*
