Mirafi Miragrid 2XT Geogrid - 12' x 150' (1800 sf)

Mfr.: Solmax - Mirafi
Item #: I056453
Mfr. #: 2XT/12/150
*
Pickup at San Diego | Change Delivering to 90001 | Change

Digital Downloads
Price: $536.92
i h h

Description

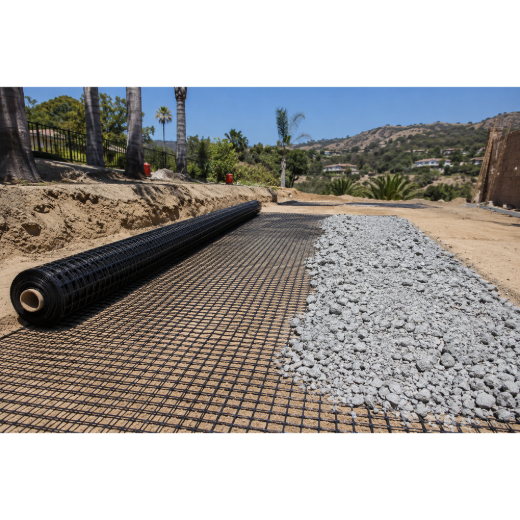

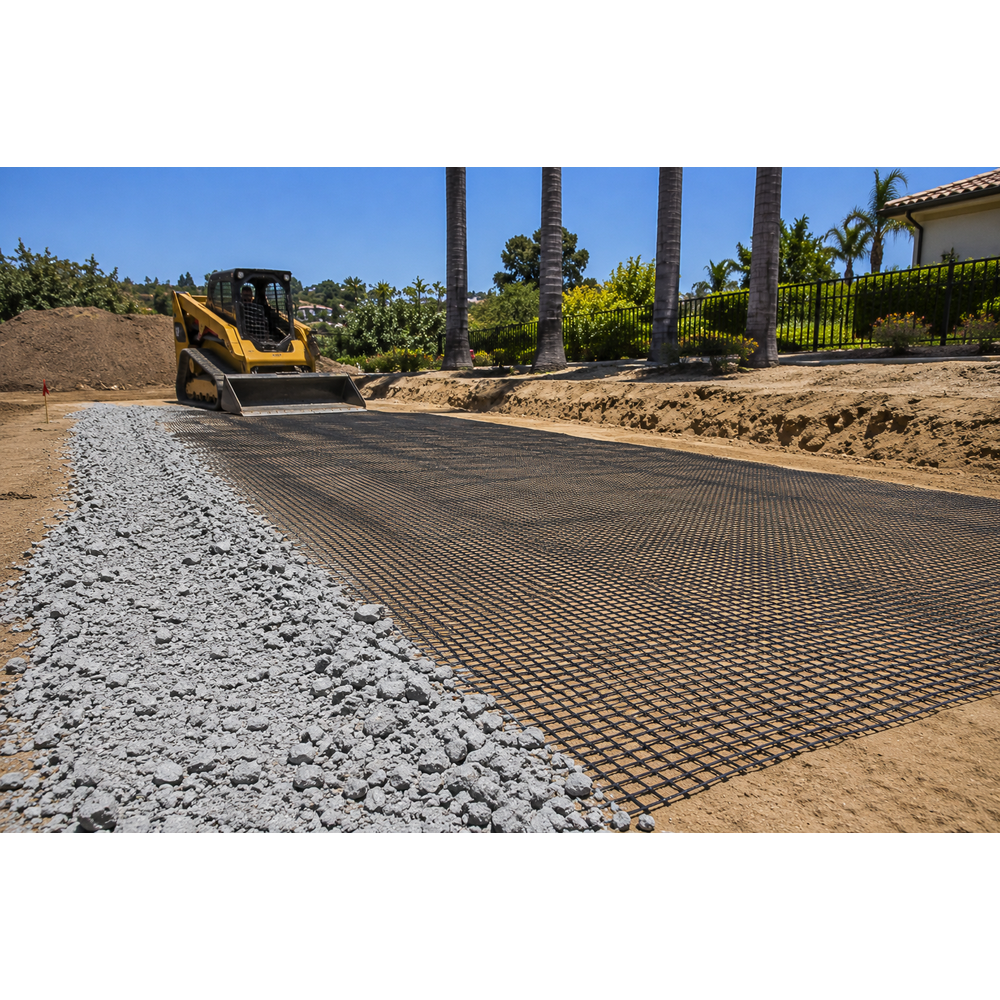

MIRAGRID 2XT is a geogrid designed for soil reinforcement in Mechanically Stabilized Earth (MSE) walls and Reinforced Soil Slope (RSS) structures. It is part of the XT-Series offering high tensile strength and durability.
  • Geosynthetic solution for soil reinforcement
  • Designed for MSE walls and RSS structures
  • Permanent welded wire mesh geogrid

Features

  • High tensile strength for soil reinforcement
  • Suitable for MSE walls and reinforced slopes
  • Permanent welded wire mesh construction
  • Available in 12' x 150' rolls (1800 sf)

Specifications


Product TypeGeogridSeriesXT-Series
Model2XTRoll Size12 x 150
Coverage Area1800 sf
Products specifications
Application Soil Reinforcement
Certifications ASTM D6637 Compliant
Color Black
Country of Origin USA (subject to change)
Coverage Area 1800 sf
Geotextile Type Geogrid
Polymer Type Polyester
Roll Length 150 ft
Roll Width 12 ft
Series Miragrid 2XT
UV Resistance 70% retained @ 500 hr
Wide Width Tensile Strength 1644 lb/ft (MD)
*
*
*
