Mirafi Miragrid 5XT Geogrid - 12' x 150' (1800 sf)

Mfr.: Solmax - Mirafi
Item #: I041291
Mfr. #: 5XT/12/150
*
Pickup at San Diego | Change Delivering to 90001 | Change

Digital Downloads
Price: $556.92
i h h

Description

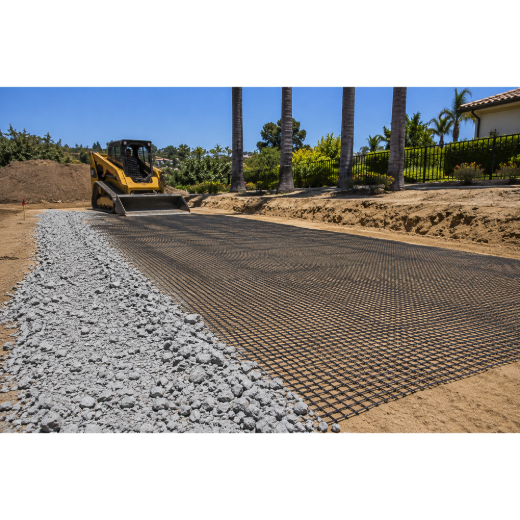

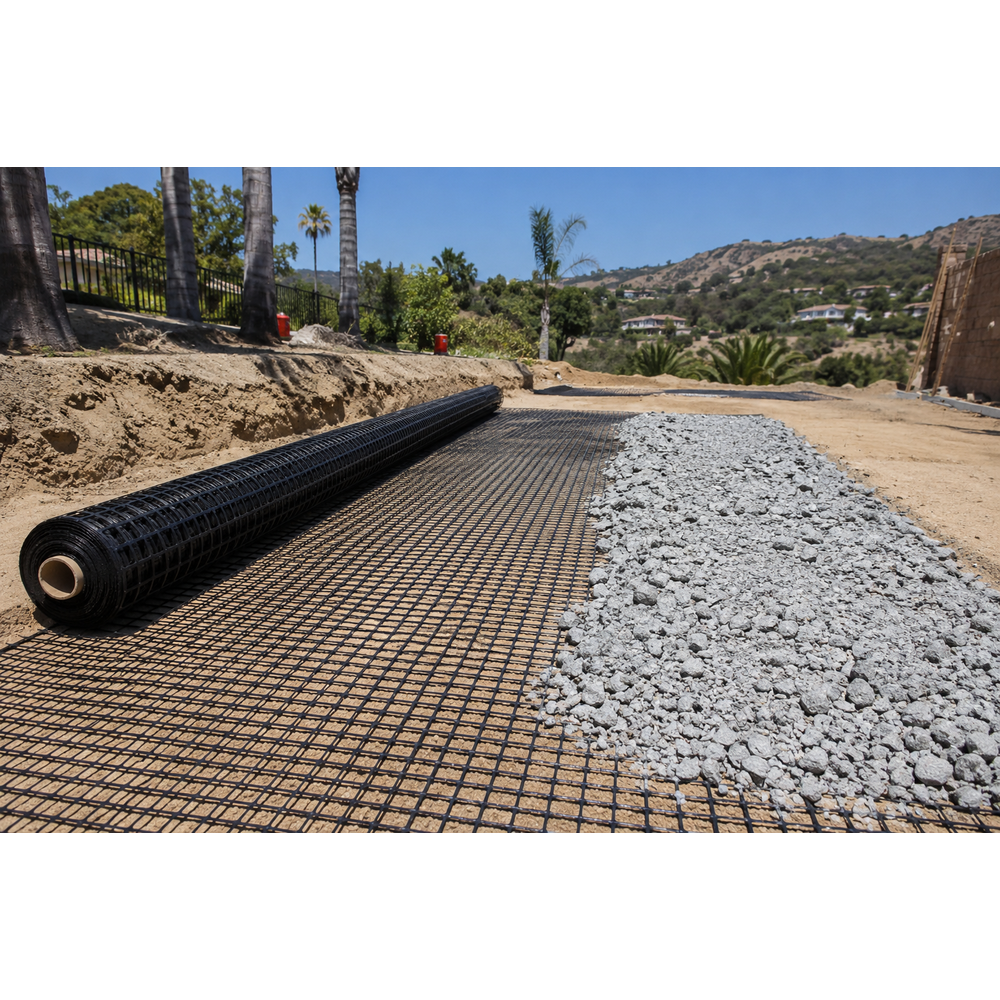

MIRAGRID XT geogrids are the premier solution for soil reinforcement in MSE walls and RSS structures. The 5XT variant is designed for high-performance reinforcement.
  • Geosynthetic soil reinforcement
  • For MSE walls and RSS structures
  • Permanent welded wire mesh geogrid

Features

  • High tensile strength
  • Durable polymer construction
  • Easy to install
  • Resistant to biological and chemical degradation

Specifications


Product TypeGeogridSeriesMIRAGRID XT
Model5XTApplicationSoil reinforcement in MSE walls and RSS structures
Products specifications
Application Soil Reinforcement
Certifications ASTM D6637 Compliant
Color Black
Country of Origin USA (subject to change)
Coverage Area 1800 sf
Geotextile Type Geogrid
Polymer Type Polyester
Roll Length 150 ft
Roll Width 12 ft
Series Miragrid 5XT
UV Resistance 70% retained @ 500 hr
Wide Width Tensile Strength 4112 lb/ft (MD)
*
*
*
