Mirafi S1200 Nonwoven Filter Fabric - 15' x 300' (4500 sf)

Mfr.: Solmax - Mirafi
Item #: I049994
Mfr. #: S1200/15/300
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Digital Downloads
Price: $1,897.07
i h h

Description

MIRAFI S1200 is a nonwoven polypropylene geotextile used for protection in environmental, mining, and energy infrastructure projects. It provides cushioning and protection to geomembranes and other assets, with high permittivity and puncture resistance.
  • Nonwoven polypropylene geotextile
  • 15' x 300' roll (4500 sf)
  • High puncture resistance and permittivity
  • Chemically stable for aggressive environments

Features

  • Provides cushioning and protection to geomembranes, pipes, and other assets

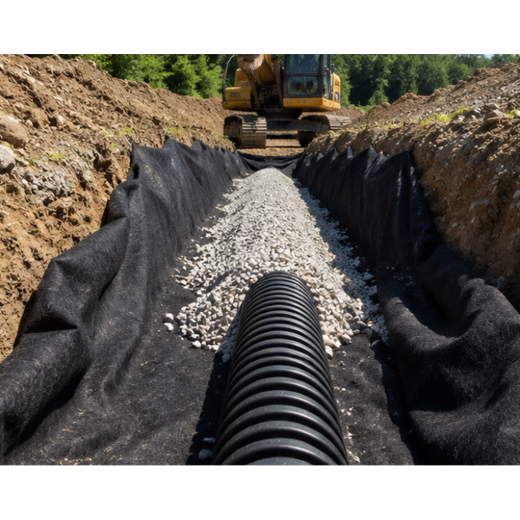

  • High permittivity for high water flow rates and excellent soil retention
  • Chemically stable for performance in aggressive environments
  • Cost-effective option for asset protection in civil applications

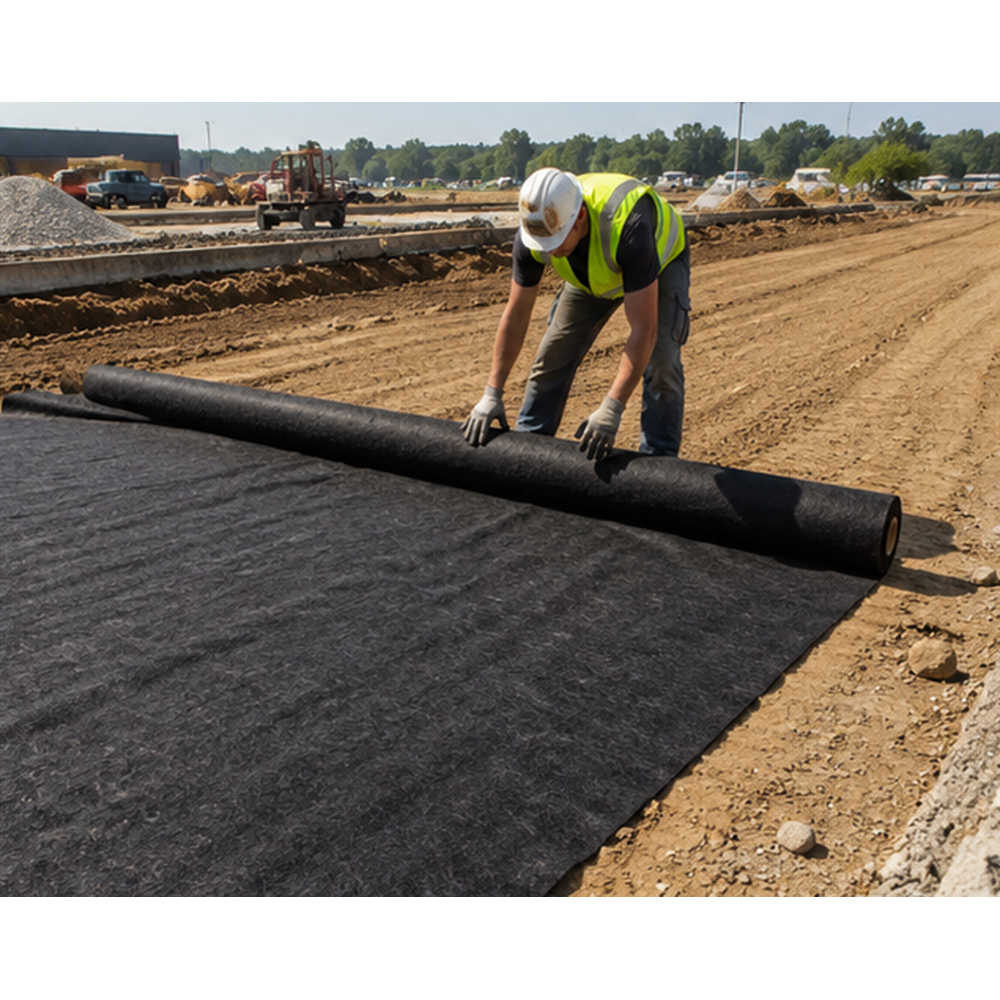

  • Easily conforms to ground or trench surfaces for trouble-free installation

Specifications


MaterialPolypropyleneTypeNonwoven
Width15 ftLength300 ft
Area4500 sfSeriesS-Series
Products specifications
Apparent Opening Size #100 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 900 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 4500 sf
Geotextile Type Nonwoven
Grab Tensile Strength 315 lb
Mass per Unit Area 12 oz/yd²
Permittivity 0.9 sec⁻¹
Polymer Type Polypropylene
Roll Length 300 ft
Roll Width 15 ft
Series S1200
Trapezoidal Tear Strength 125 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 75 gpm/ft²
*
*
*
