Mirafi S600 Nonwoven Filter Fabric - 15' x 300' (4500 sf)

Mfr.: Solmax - Mirafi
Item #: I040387
Mfr. #: S600/15/300
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Digital Downloads
Price: $875.93
i h h

Description

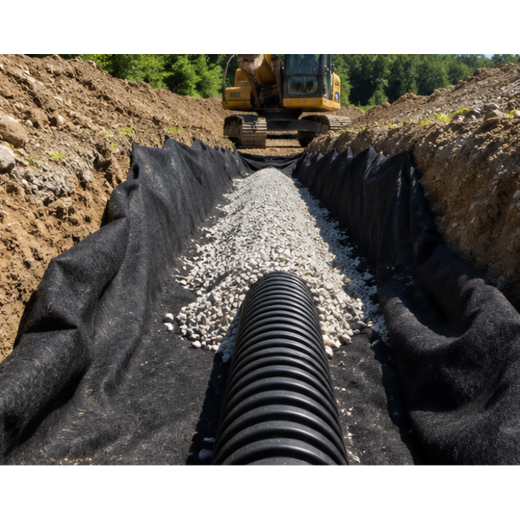

MIRAFI S600 is a nonwoven polypropylene geotextile used for protection in environmental, mining, and energy infrastructure projects. It provides cushioning and protection to geomembranes, pipes, and other construction assets.
  • High puncture resistance
  • High permittivity and transmissivity
  • Chemically stable in aggressive environments
  • Cost-effective asset protection

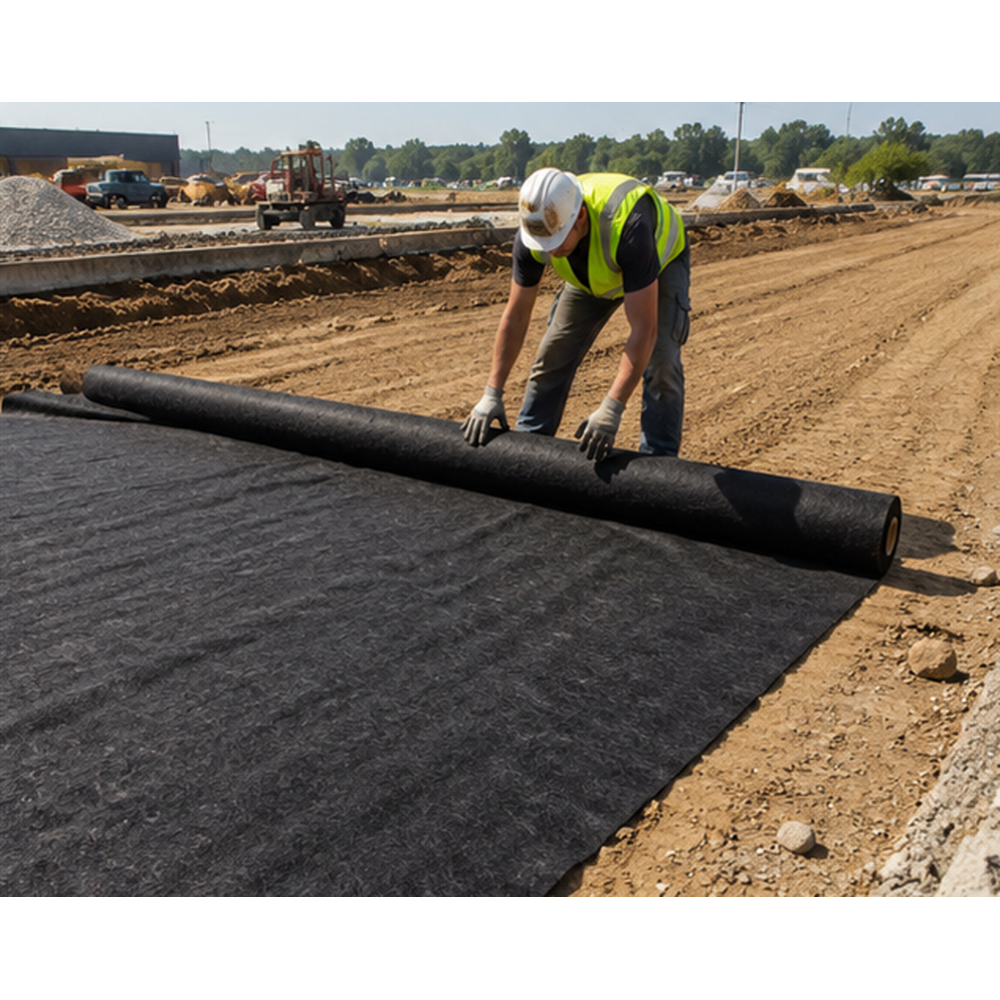

  • Easy to conform to ground or trench surfaces

Features

  • Nonwoven polypropylene geotextile
  • Provides cushioning and protection to geomembranes and pipes
  • High water flow rates and excellent soil retention
  • Chemically stable for a wide range of aggressive environments
  • Cost-effective option for civil applications

Includes

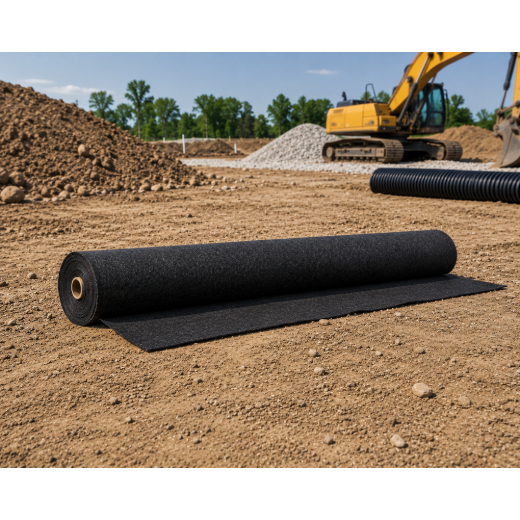

  • 1 roll of MIRAFI S600 (15' x 300')

Specifications


MaterialNonwoven polypropyleneWidth15 ft
Length300 ftArea4500 sf
SeriesS-Series
Products specifications
Apparent Opening Size #80 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 425 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 4500 sf
Geotextile Type Nonwoven
Grab Tensile Strength 160 lb
Mass per Unit Area 6 oz/yd²
Permittivity 1.5 sec⁻¹
Polymer Type Polypropylene
Roll Length 300 ft
Roll Width 15 ft
Series S600
Trapezoidal Tear Strength 65 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 110 gpm/ft²
*
*
*
