Multiquip High-Frequency Concrete Vibrator 1.7 in diam.

Mfr.: Multiquip Inc
Item #: I096069
Mfr. #: FX40G6
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2,743.09
i h h

Description

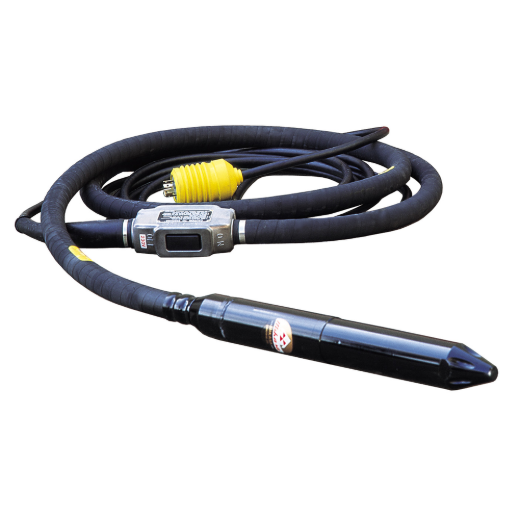

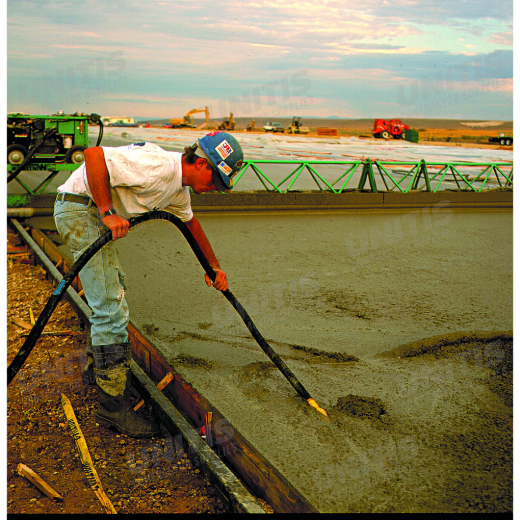

This 1.7-inch high-frequency vibrator is engineered for medium aggregate concrete pours where high-productivity consolidation is required. Its intelligent motor-in-head design maintains RPM stability even when submerged in stiff mixes.
  • Advanced 3-phase induction motor in head
  • Compatible with FU162A frequency inverter
  • Zero RPM loss common in flex-shaft units

Features

  • 1.7 inch (43 mm) diameter steel head
  • 20-foot (6m) heavy-duty handling hose
  • Long 50-foot (15m) power cord included
  • Optimized for low- to zero-slump concrete
  • Highly efficient 6.0 Amp operation

Specifications


Head Diameter1.7 in (43 mm)Head Length15.6 in (396 mm)
Hose Length20 ft (6 m)Voltage48V
Amps6Frequency200-240 Hz
VPM12,000-14,000Weight30 lbs
*
*
*
