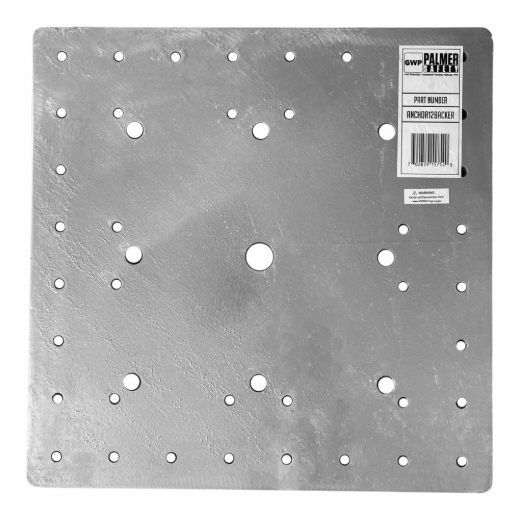

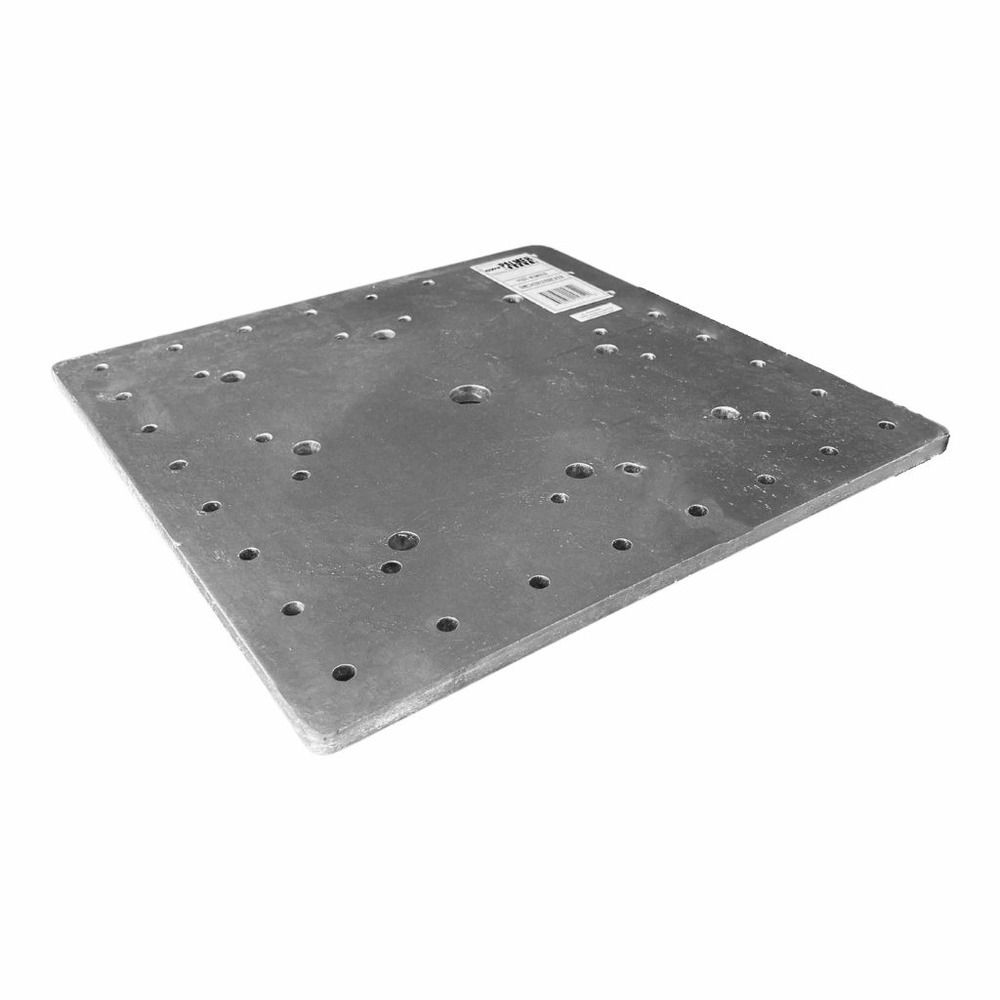

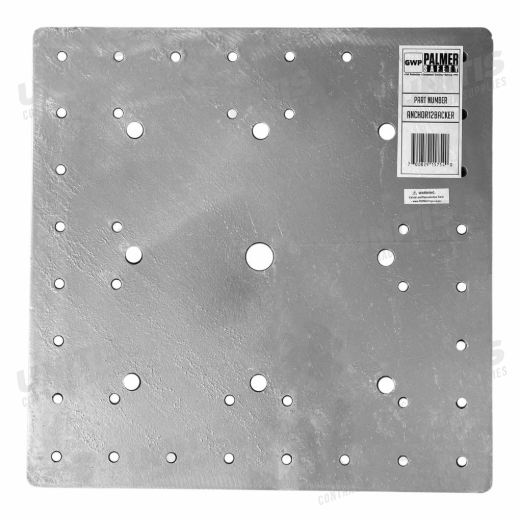

Palmer Safety 12 in Roof Anchor Back Plate

Item #: I077124
Mfr. #: ANCHOR12BACKER
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $179.53
i h h

Description

The Palmer Safety ANCHOR12BACKER is a robust 1/2-inch thick backer plate engineered specifically for mounting 12-inch roof anchors to structural beams or other load-bearing members. Its heavy-duty galvanized steel construction ensures long-term durability and resistance against the elements in permanent fall protection installations. This plate facilitates a secure connection that allows the anchor to extend through roofing materials, keeping it accessible for safety ties both during and after the construction process. It is highly versatile, providing compatibility with wood, steel, and concrete substrates while supporting horizontal lifeline system integration.
  • 1/2' Thick Galvanized Steel
  • 5,000 lb Minimum Breaking Strength (MBS)
  • Multi-Substrate Compatibility
  • Corrosion-Resistant Finish

Features

  • Meets OSHA 1910/1926 and ANSI Z359.18-2017 standards.
  • Supports a worker capacity range of 130 to 420 lbs.
  • Designed for permanent anchorage in commercial and industrial settings.
  • Suitable for use as a component in horizontal lifeline (HLL) systems.

Includes

  • (1) 12' Roof Anchor Back Plate
Products specifications
Part Number ANCHOR12BACKER
Material Galvanized Steel
Thickness 1/2 inch
Weight 33 lbs
Breaking Strength 5,000 lbs MBS
User Capacity 130 - 420 lbs
Max Users 1
Standards ANSI Z359.18-2017, OSHA 1926
Compatibility 12 inch Roof Anchors
*
*
*
