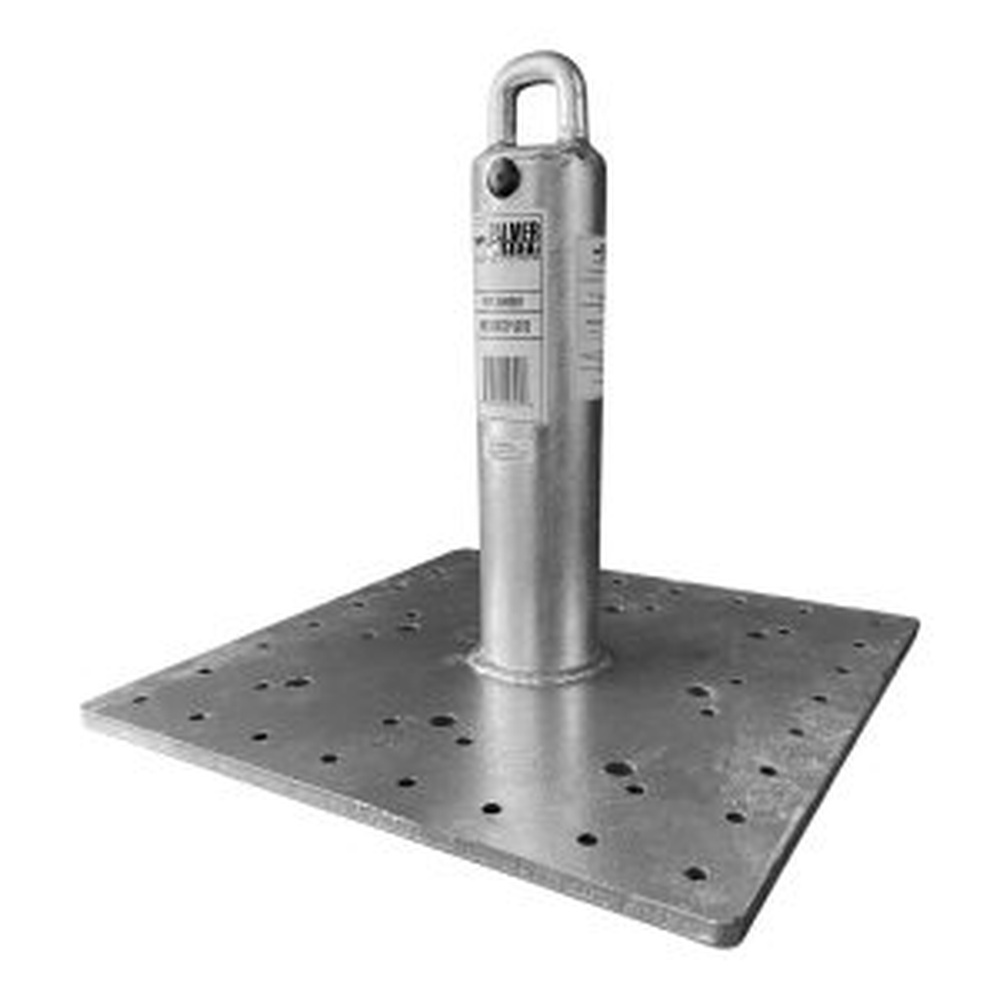

Palmer Safety 12 in Roof Anchor w/Baseplate

Mfr.: Palmer Safety
Item #: I077118
Mfr. #: ANCHOR12PLATE
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $393.33
i h h

Description

The ANCHOR12PLATE is a heavy-duty 12-inch roof anchor designed for permanent installation, providing a reliable fixed connection point for fall protection systems. Ideal for residential and commercial roofing applications, this anchor is fully compatible with horizontal lifeline (HLL) systems and serves as an effective single-point tie-off. Its robust galvanized steel construction ensures exceptional durability and corrosion resistance in harsh outdoor environments.
  • Galvanized Steel Construction
  • Permanent Installation Design
  • HLL System Compatibility
  • 5,000 lbs Breaking Strength

Features

  • Versatile substrate mounting compatible with wood, steel, and concrete.
  • 1/2-inch thick 16' x 16' baseplate with pre-drilled holes for flexible fastening.
  • Complies with OSHA 1926 Subpart M & 1910 and ANSI Z359.18-2017 standards.
  • Rated for worker capacities ranging from 130 to 420 lbs.

Includes

  • 12-inch Roof Anchor Post
  • Integrated 16' x 16' Baseplate
Products specifications
Material Galvanized Steel
Post Height 12 inches
Baseplate Dimensions 16 inch x 16 inch
Baseplate Thickness 0.5 inches
Breaking Strength 5,000 lbs
Worker Capacity 130 - 420 lbs
Compliance ANSI Z359.18, OSHA 1926
Weight 45 lbs
Max Users 1
Min Service Temp -30 degF
*
*
*
