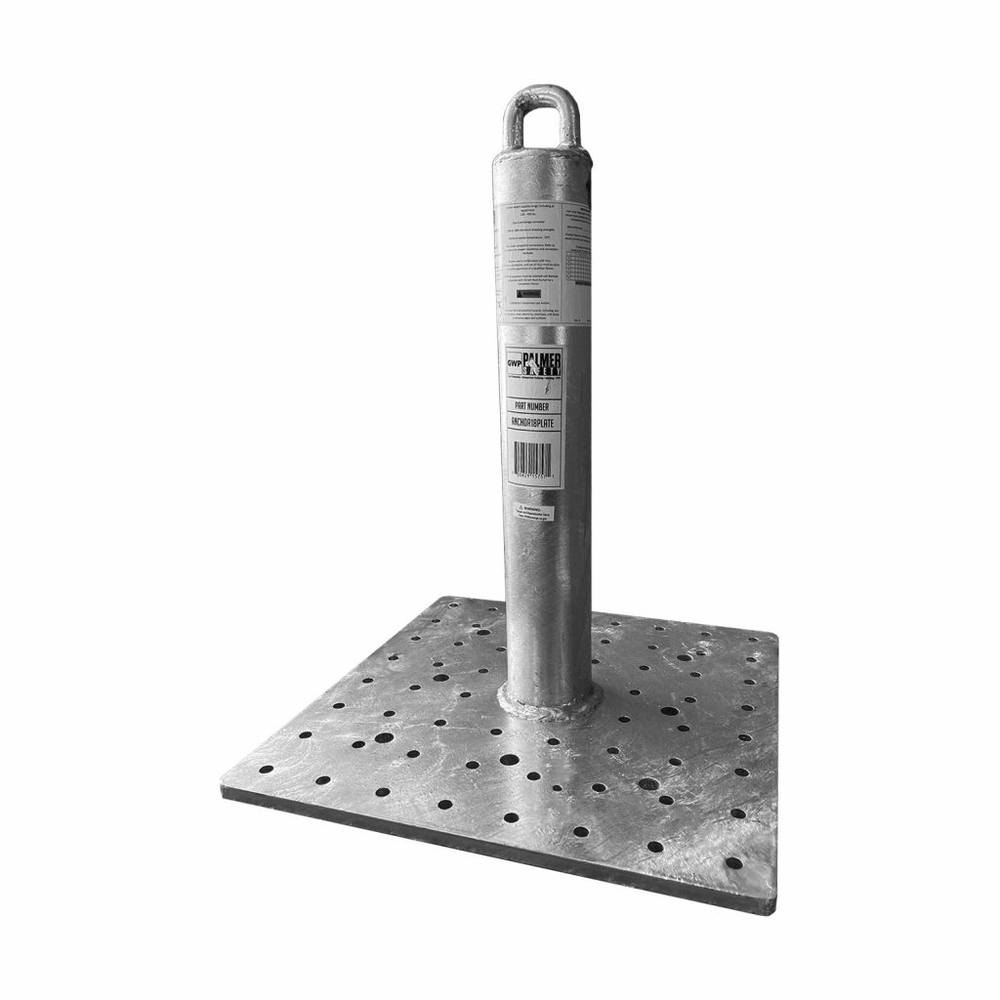

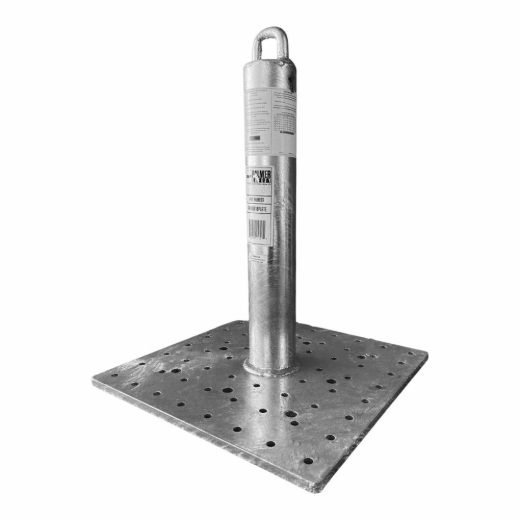

Palmer Safety 18 in Roof Anchor with Baseplate

Mfr.: Palmer Safety
Item #: I077120
Mfr. #: ANCHOR18PLATE
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $474.02
i h h

Description

The Palmer Safety ANCHOR18PLATE is a heavy-duty, permanent fall protection solution designed to provide a secure tie-off point on various structures. Featuring an 18-inch tall post, this anchor remains accessible even after roofing materials are installed, making it ideal for both active construction and long-term maintenance. Its robust galvanized steel construction ensures exceptional durability and corrosion resistance in harsh outdoor environments. Whether used as a single-point anchor or a horizontal lifeline endpoint, this system provides peace of mind for workers at heights.
  • Galvanized Steel Construction
  • 18-Inch Extended Post Height

Features

  • Versatile installation options for wood, metal decking, and concrete substrates.
  • Pre-drilled 16' x 16' baseplate includes 8 holes for bolts and 60 holes for screws.
  • Rated for 5,000 lbs Minimum Breaking Strength (MBS) and single-user capacity up to 420 lbs.
  • Compliant with OSHA 1926 Subpart M, OSHA 1910, and ANSI Z359.18-2017 standards.

Includes

  • 18' Roof Anchor Post
  • 16' x 16' Integrated Baseplate
Products specifications
Material Galvanized Steel
Post Height 18 inches
Baseplate Size 16 inch x 16 inch
Baseplate Thickness 1/2 inch
Breaking Strength 5,000 lbs (MBS)
Worker Capacity 130 - 420 lbs
Max Users 1 Person
Compliance ANSI Z359.18, OSHA 1926
Weight 55 lbs
Service Temp -30 degF minimum
*
*
*
