Palmer Safety 24 in Roof Tieback w/Baseplate (ANCHOR24PLATE)

Mfr.: Palmer Safety
Item #: I077122
Mfr. #: ANCHOR24PLATE
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $625.29
i h h

Description

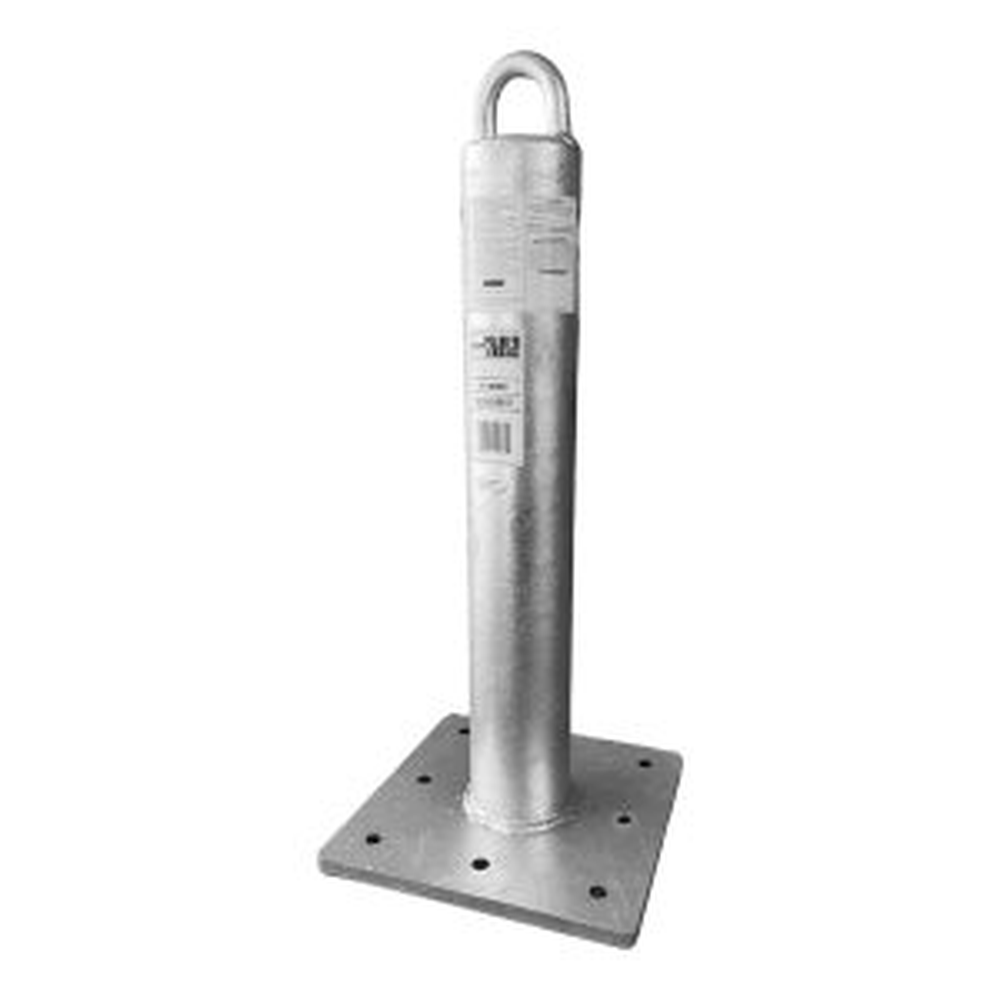

The Palmer Safety ANCHOR24PLATE is a heavy-duty 24-inch roof tieback anchor designed for permanent installation in challenging rooftop environments. Constructed from durable galvanized steel, it features a 5/8-inch thick baseplate that ensures a secure and stable foundation for fall protection systems. This anchor is engineered to remain accessible through roofing materials, providing a reliable 5,000 lb. MBS connection point for single workers or as part of a horizontal lifeline. It meets rigorous safety standards including OSHA and ANSI Z359.18, making it a trusted choice for commercial roofing safety.
  • Galvanized Steel Finish
  • 5,000 lb. Minimum Breaking Strength
  • Permanent Rooftop Installation

Features

  • Designed for concrete or structural metal beams
  • Supports single-point tie-off or HLL systems
  • Complies with OSHA 1910/1926 and ANSI Z359.18
  • Extends through roofing for year-round access

Includes

  • 24' Roof Tieback Post
  • Integrated 5/8' Thick Baseplate
Products specifications
Material Galvanized Steel
Height 24 inches
Baseplate Thickness 5/8 inch
MBS 5,000 lbs.
Worker Capacity 130 - 420 lbs.
Weight 57 lbs.
Max Users 1 Worker
Compliance ANSI Z359.18-2017, OSHA 1910/1926
Substrate Concrete or Structural Metal Beams
Temperature Range Minimum -30 degF
*
*
*
