Rotating D-Ring Anchor w/Expansion Bolt

Mfr.: FallTech
Item #: I054012
Mfr. #: 7451C
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $160.30
i h h

Description

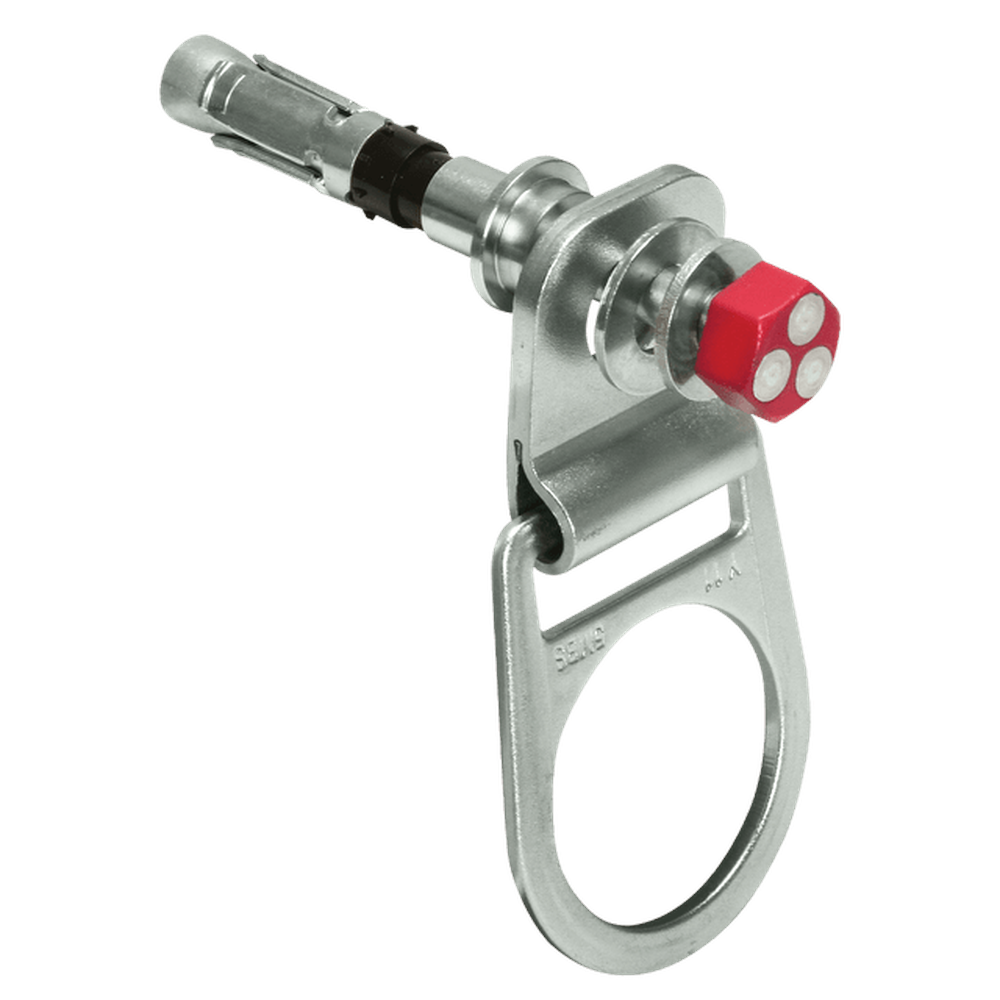

The FallTech 7451C Rotating D-Ring Anchor is a high-strength anchorage solution designed for both temporary and permanent applications in cured concrete. This anchor features a 360-degree rotating D-ring that enhances worker mobility and helps prevent improper loading by naturally aligning with the user's movement. Built with a durable stainless steel anchoring plate and plated alloy steel D-ring, it offers exceptional corrosion resistance and longevity for demanding job sites.
  • 360 Rotating D-ring
  • Cured Concrete Application

Features

  • Stainless steel anchoring plate with alloy steel connecting D-ring for durability.
  • Precision-cut bushing ensures smooth 360-degree rotation and optimal alignment.
  • Expansion bolt includes a torque-indicating cap to confirm correct installation.
  • Reusable anchoring plate and D-ring assembly for cost-effective use across sites.
  • Fully compliant with OSHA 1926.502 and 1910.66 safety regulations.

Includes

  • Reusable Stainless Steel Anchoring Plate
  • Plated Alloy Steel Rotating D-Ring Assembly
  • Hilti HSL-3-B M12/25 Concrete Expansion Bolt
Products specifications
Static Strength 5,000 lb min
Part Number 7451C
Application Cured Concrete
ANSI User Capacity 130 to 310 lb max
Material Stainless Steel / Alloy Steel
Standards OSHA 1926.502 / 1910.66
Fastener Type Hilti Concrete Expansion Bolt
OSHA User Capacity 130 to 425 lb max
Rotation 360 Degrees
*
*
*
