Safewaze 10' Tech Tripod Basic

Mfr.: SafeWaze
Item #: I077198
Mfr. #: 022-11029
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $2,861.80
i h h

Description

The Safewaze 022-11029 10' Tech Tripod Basic is a versatile, high-capacity anchor solution designed for complex confined space and over-edge operations. Its innovative adjustable stance can expand significantly to provide stability over trenches, bridges, and mine shafts. The lightweight aluminum construction ensures easy portability without sacrificing strength, featuring seven independent 5,000 lb. anchor points for maximum utility. This tripod simplifies setup with intuitive detent pins and includes a heavy-duty wheeled storage bag for convenient transport across demanding jobsites.
  • Lightweight yet durable aluminum construction

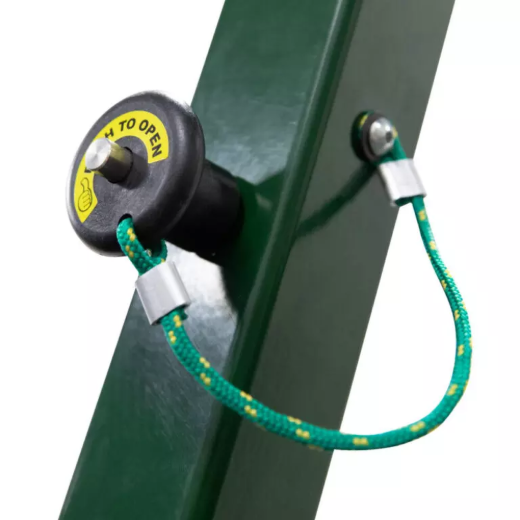

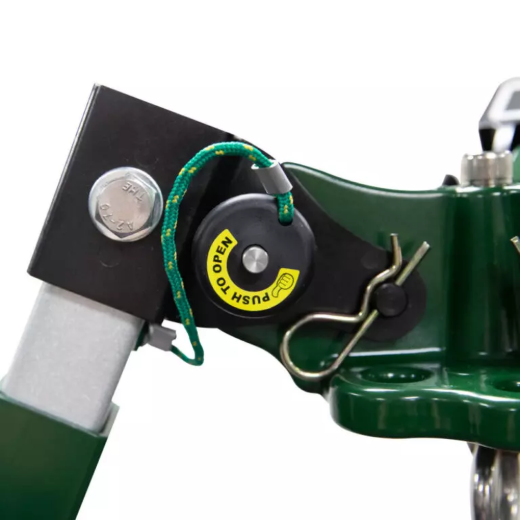

  • Quick setup with detent pins for height adjustment
  • Seven individual 5,000 lb. anchor points

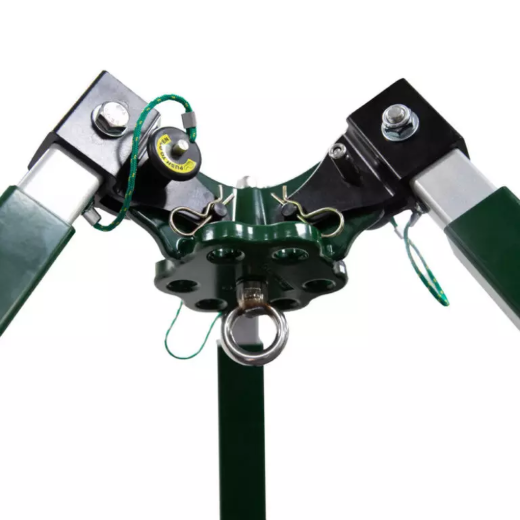

  • Centered 360-degree captive eye in head unit

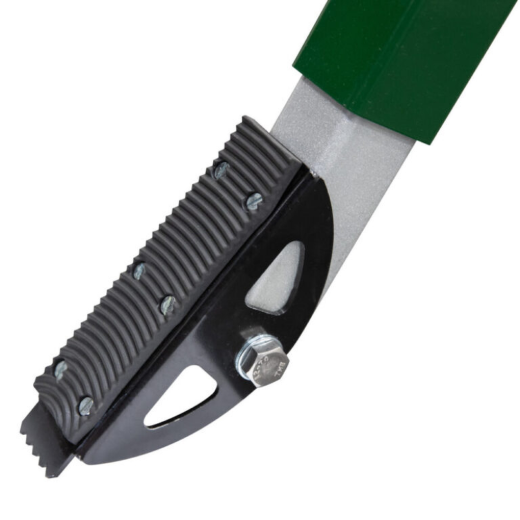

  • Secure rubber pads on multi-surface steel feet

Features

  • Massive adjustable stance covers various work zones
  • Unique design allows for over-edge scenario use

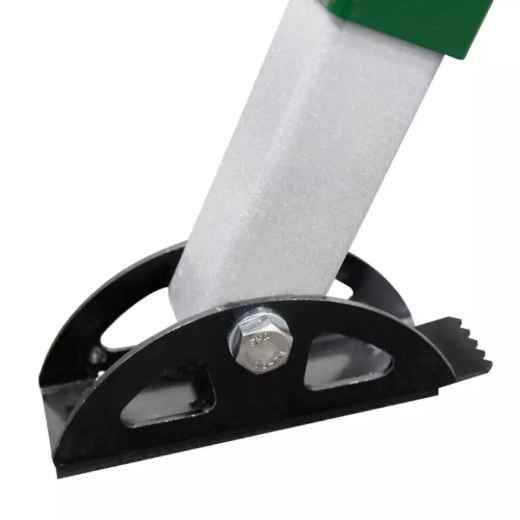

  • Powder coated steel feet for long-term durability
  • Includes high-quality transport bag with wheels

Includes

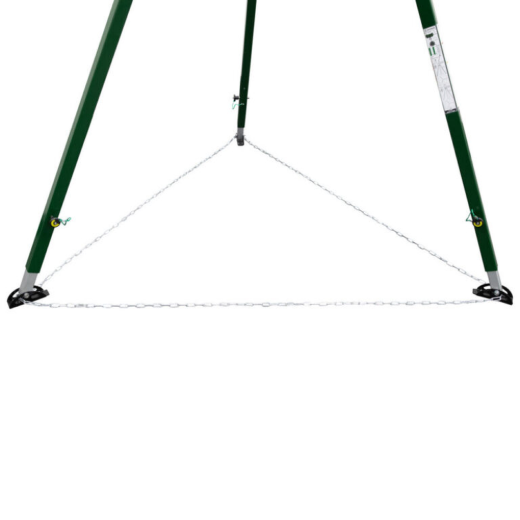

  • Safety chain and quick link

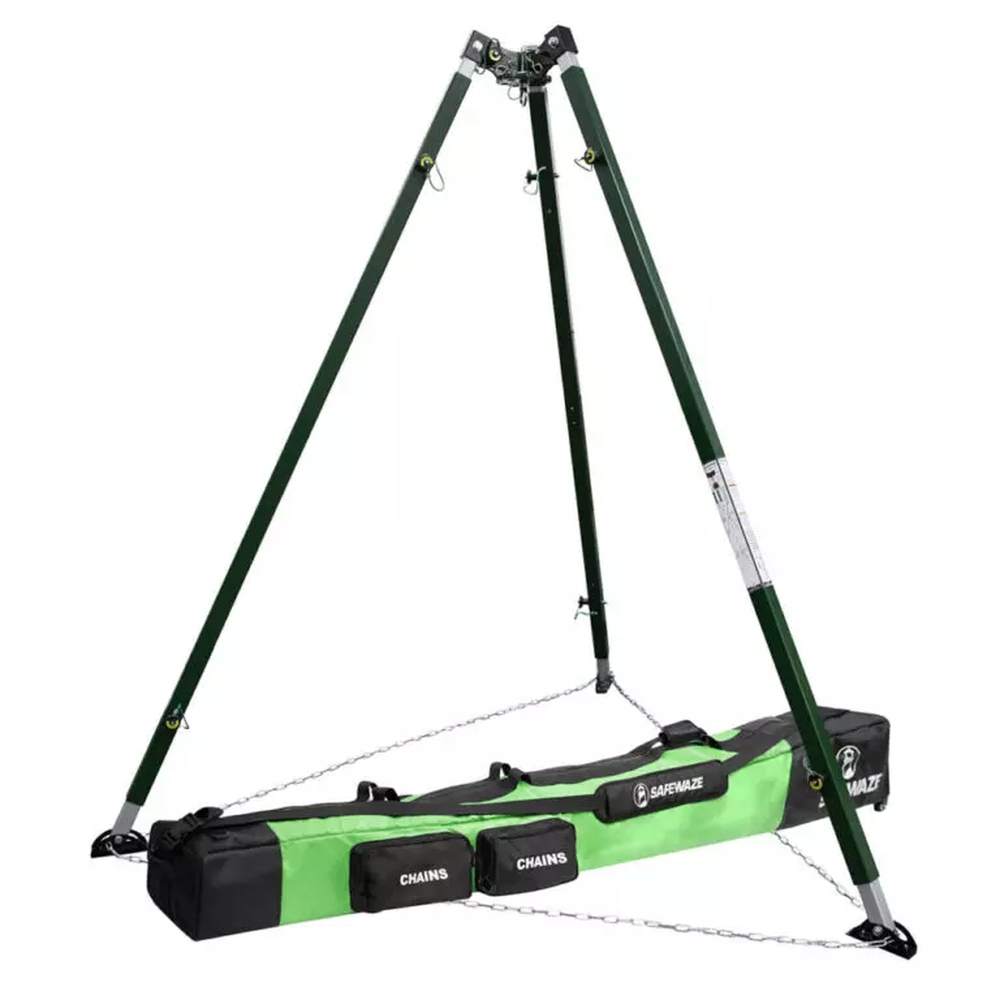

  • Heavy-duty wheeled storage bag
Products specifications
Materials Aluminum, Steel, Stainless
Weight 64.3 lbs (29.2 kg)
Max Working Height 119 in (302.3 cm)
Min Working Height 53.5 in (135.9 cm)
Max Working Diameter 218 in (553.7 cm)
Min Working Diameter 86.6 in (219.9 cm)
Breaking Strength 5,000 lbs (2268 kg)
ANSI Weight Capacity 130-310 lbs (59-141 kg)
OSHA Weight Capacity Up to 420 lbs (190 kg)
ANSI Standards Z359.18-2017 Type T, Z359.4-2013
OSHA Standards 1910.140, 1926.502
*
*
*
