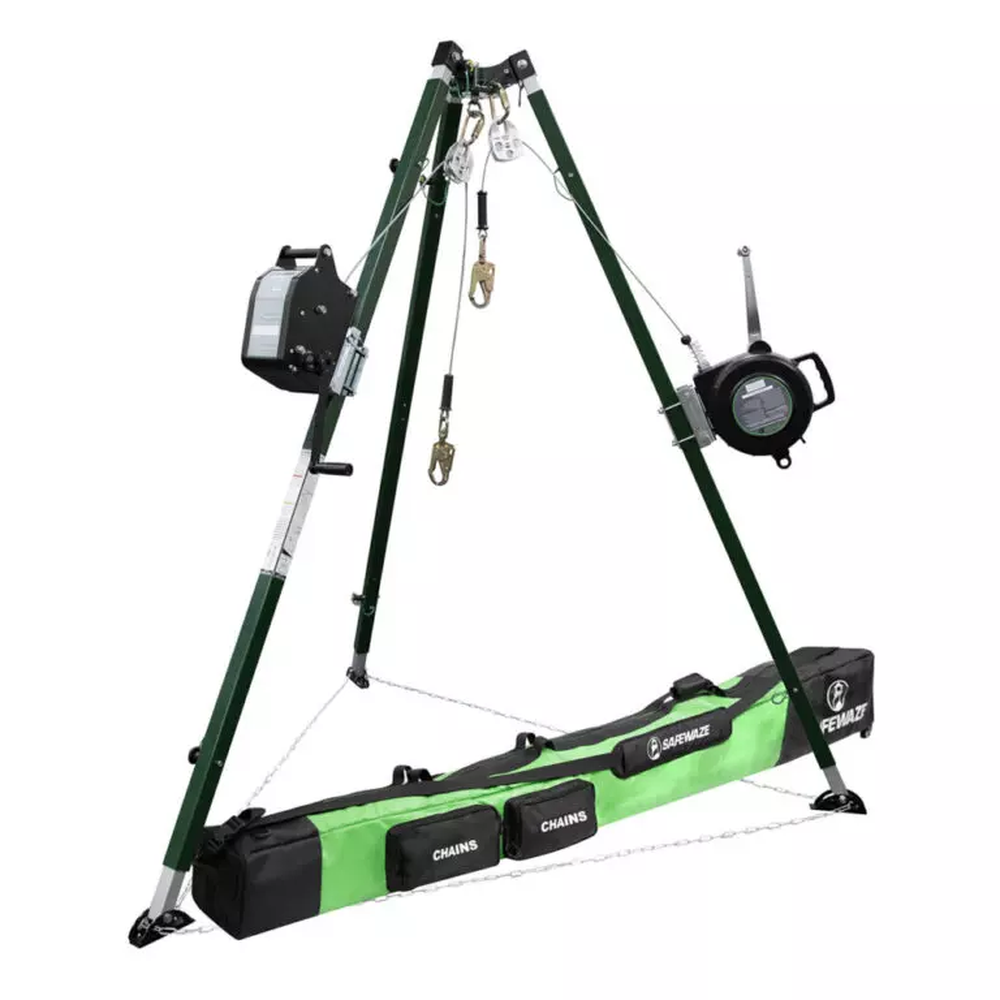

Safewaze 10' Tech Tripod Kit with 65' Personnel Winch and 3-Way SRL

Mfr.: SafeWaze
Item #: I077199
Mfr. #: 022-11034
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $6,449.14
i h h

Description

The Safewaze 022-11034 is a premium, professional-grade solution designed for safe confined space entry, egress, and non-entry rescue. This robust 10-foot tripod system provides a portable overhead anchor point with multiple configurations, making it ideal for trenches, bridges, and vertical rescue scenarios. It features a versatile stance that adjusts up to 18 feet to accommodate diverse work zones and over-edge applications.
  • Lightweight Aluminum Construction
  • Dual Retrieval Capability

Features

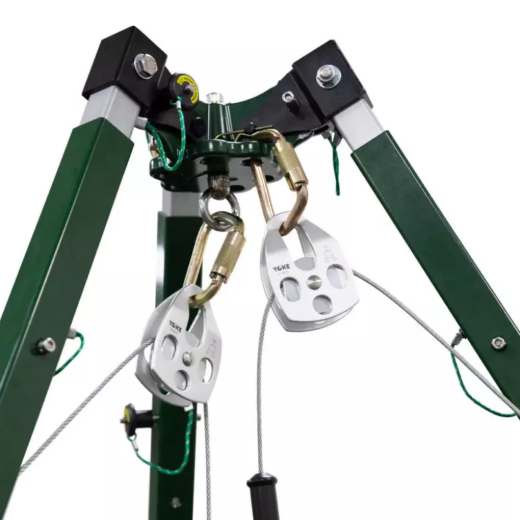

  • Seven individual 5,000 lb. anchor points in the head unit with a 360 captive eye.

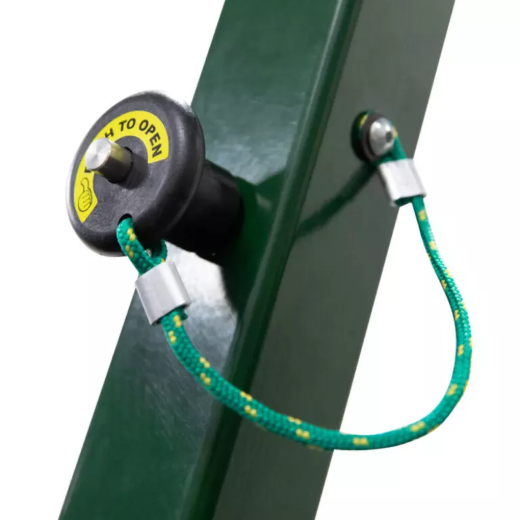

  • Quick setup using detent pins for effortless height and diameter adjustment.

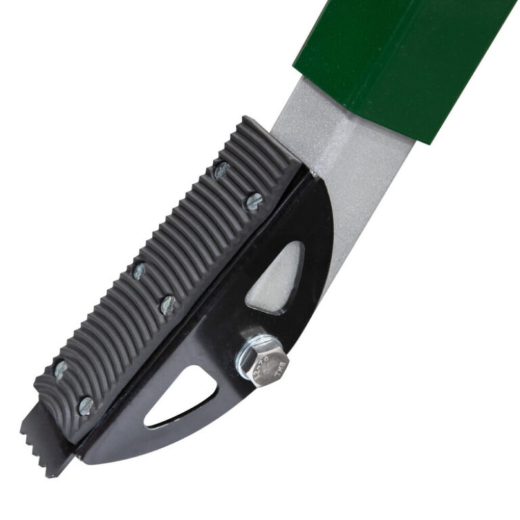

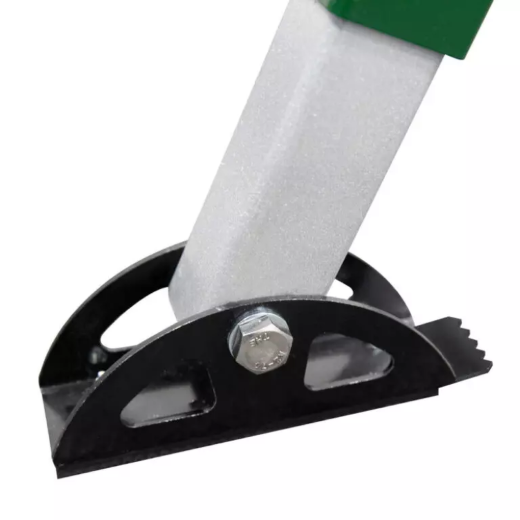

  • Multi-surface steel feet with rubber pads for a secure foundation on varied terrain.
  • Unique design supports over-edge scenarios such as cliffs or vertical walls.

Includes

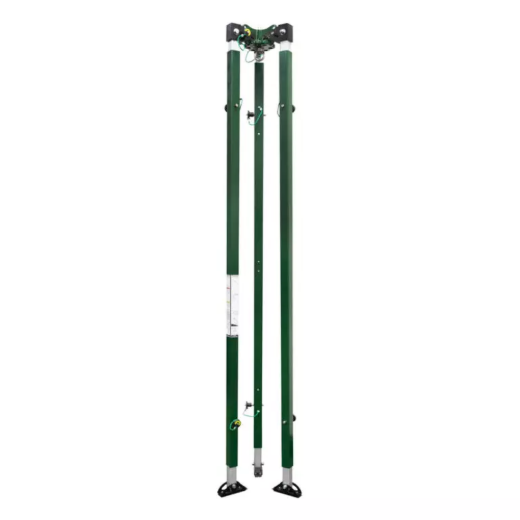

  • 10' Tech Tripod with Head Unit

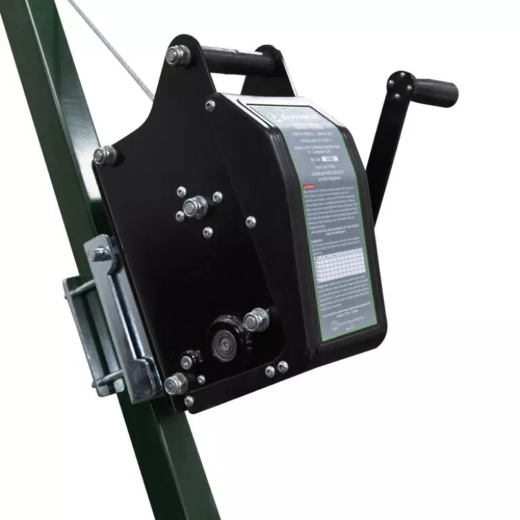

  • 65' Personnel Winch

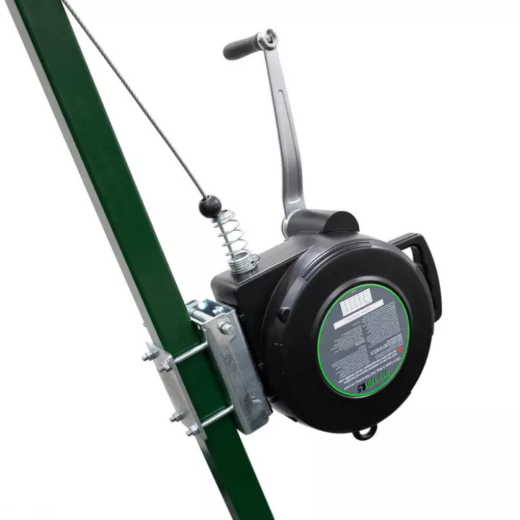

  • 65' 3-Way Self-Retracting Lifeline (SRL)

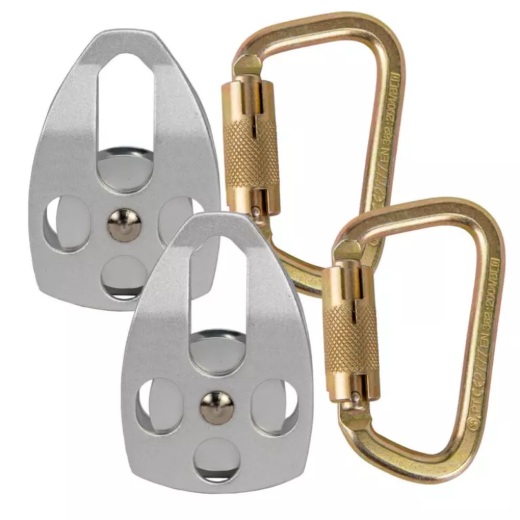

  • (2) Aluminum Pulleys and (2) Steel Carabiners

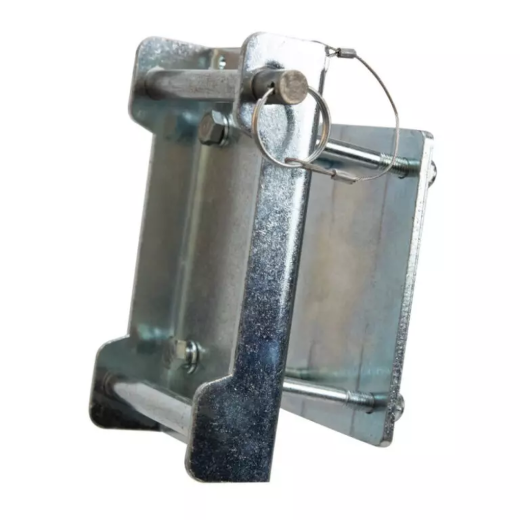

  • (2) Universal Mounting Brackets
  • Heavy-Duty Storage Bag with Wheels
  • Safety Chain and Quick Link
Products specifications
Model Number 022-11034
Tripod Height 10 Feet
Maximum Stance Up to 18 Feet
Winch Length 65 Feet
SRL Length 65 Feet
Material Aluminum
Anchor Strength 5,000 lbs (per point)
ANSI Weight Capacity 130-310 lbs
OSHA Weight Capacity Up to 420 lbs
Total Kit Weight 137.2 lbs
Standards ANSI Z359.18, OSHA 1926.502
System Capacity 620 lbs
*
*
*
