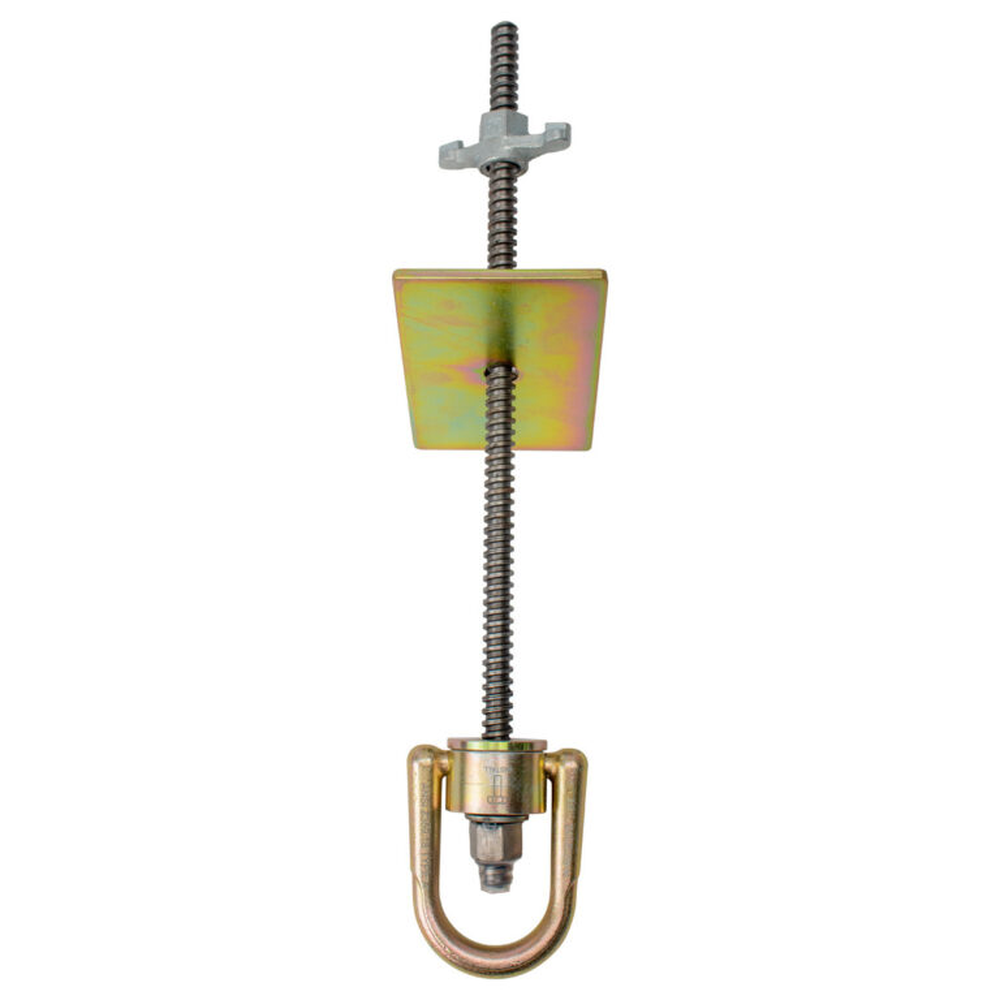

Safewaze 10K Swivel Anchor & Back Plate

Mfr.: SafeWaze
Item #: I077188
Mfr. #: 021-4043
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $190.24
i h h

Description

The Safewaze 021-4043 is a heavy-duty anchorage connector designed for robust fall protection on reinforced cinder blocks, chillers, metal structures, and AC unit walls. This versatile assembly features a 10,000 lb breaking strength and is adjustable to accommodate wall thicknesses between 4 inch and 12 inch. It provides a secure, high-strength attachment point for personal fall arrest systems in demanding industrial and construction environments.
  • 10,000 lbs Minimum Breaking Strength
  • Zinc-Plated Steel construction for corrosion resistance

Features

  • Adjustable span range from 4 to 12 inches for varied structures
  • 360-degree swivel allows for maximum mobility and prevents lifeline twisting
  • Compliant with ANSI Z359.18-2017 Type A and OSHA safety regulations
  • Designed for use on reinforced cinder block and metal structures

Includes

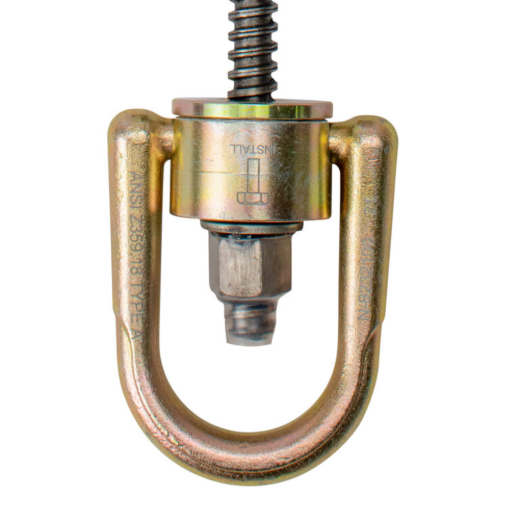

  • 10K Swivel Anchor

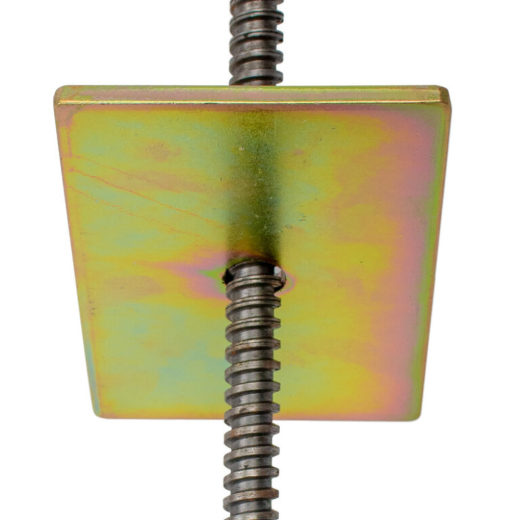

  • Back Plate (6 inch x 4 inch x 1/4 inch)

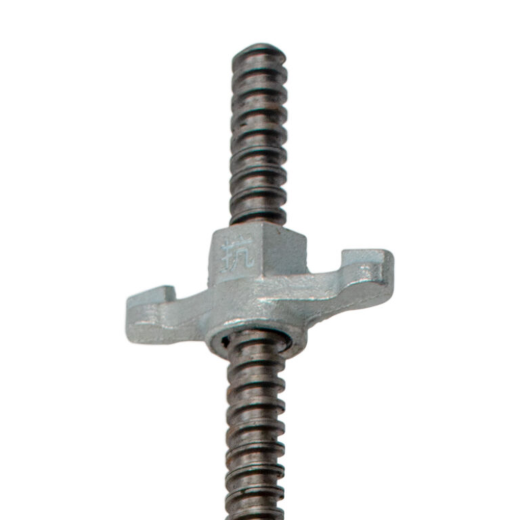

  • 5/8 inch Bolt and Wingnut Fastener
Products specifications
Material Zinc-Plated Steel
Weight 1.9 lbs (839 g)
Plate Dimensions 6 inch x 4 inch x 1/4 inch
Breaking Strength 10,000 lbs (44.4 kN)
ANSI Weight Capacity 130-310 lbs (59-141 kg)
OSHA Weight Capacity Up to 420 lbs (191 kg)
ANSI Standards Z359.18-2017 Type A, A10.32
OSHA Standards 1926.502, 1910.140, 1910.66
Max Wall Thickness 12 inches
Required Torque 75 to 90 ft-lbs
*
*
*
