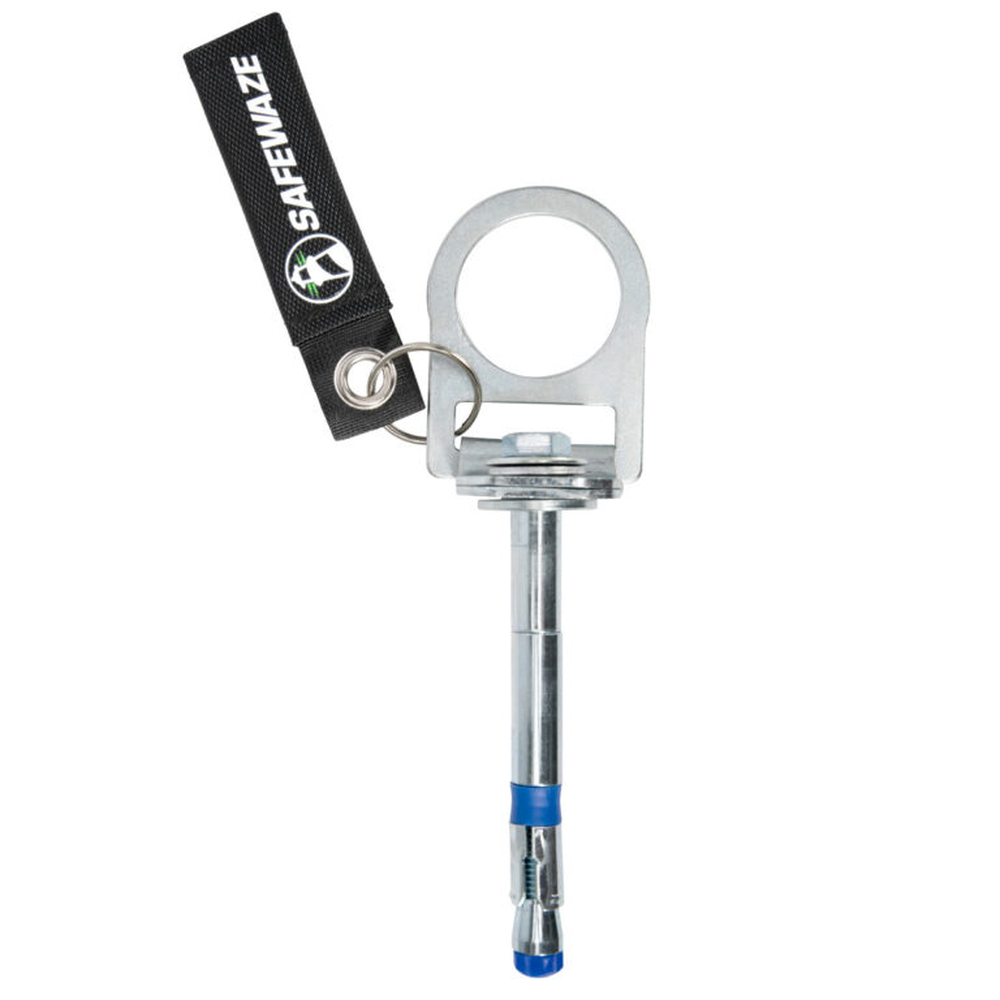

Safewaze 5K Swivel D-ring Anchor Assembly

Mfr.: SafeWaze
Item #: I077196
Mfr. #: 021-4081
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $74.34
i h h

Description

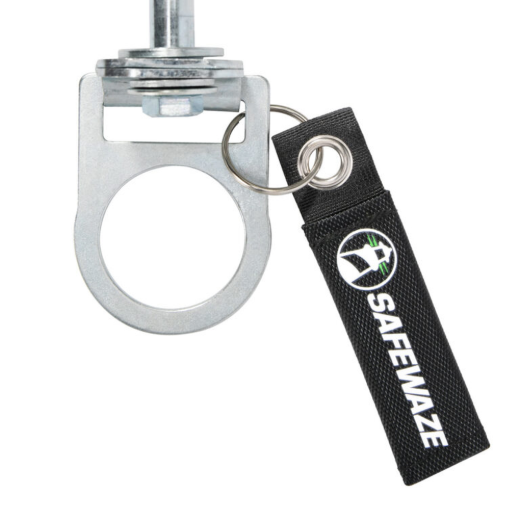

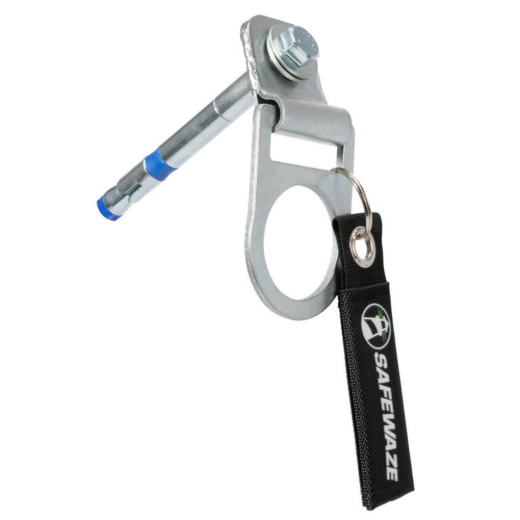

The Safewaze 021-4081 is a low-cost and versatile 5K Swivel D-ring Anchor Assembly designed for both temporary and permanent fall protection applications in concrete. This single-point solution features a 360-degree rotating connection point that enhances worker mobility while minimizing the risk of lanyard tangling. Built from high-strength zinc-plated steel, it can be installed in either vertical or horizontal orientations to suit various job site requirements. The assembly provides a reliable 5,000 lb static load rating, ensuring compliance with rigorous safety standards.
  • 360-degree rotation for maximum mobility
  • Zinc-plated steel construction
  • 5,000 lbs minimum breaking strength
  • Vertical or horizontal installation

Features

  • Designed for quick and easy installation into a pre-drilled 5/8-inch hole.
  • Versatile design allows for use as either a temporary or permanent anchor point.

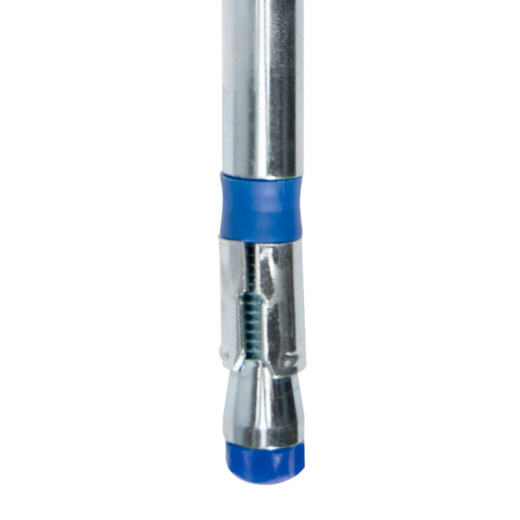

  • Includes a wedge-style expansion bolt for immediate setup in concrete substrates.
  • Meets ANSI Z359.18-2017 Type A and OSHA 1926.502 safety regulations.

Includes

  • 5K Swivel D-Ring Anchor
  • 5/8 inch Concrete Wedge Bolt
  • Bushing and Washer Set
Products specifications
Width 3 inches (76 mm), 3 inches (76 mm)
Material Zinc-Plated Alloy Steel
Weight 0.76 lbs (0.34 kg)
Length 6 inches (152 mm)
Break Strength 5,000 lbs (22 kN)
ANSI Capacity 130-310 lbs (59-141 kg)
OSHA Capacity Up to 420 lbs (191 kg)
Standards ANSI Z359.18, OSHA 1926.502
Hole Size 5/8 inch diameter
*
*
*
