Safewaze Arc Flash 6' Energy Absorbing Lanyard

Mfr.: SafeWaze
Item #: I077260
Mfr. #: FS560-AF-SE
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $99.33
i h h

Description

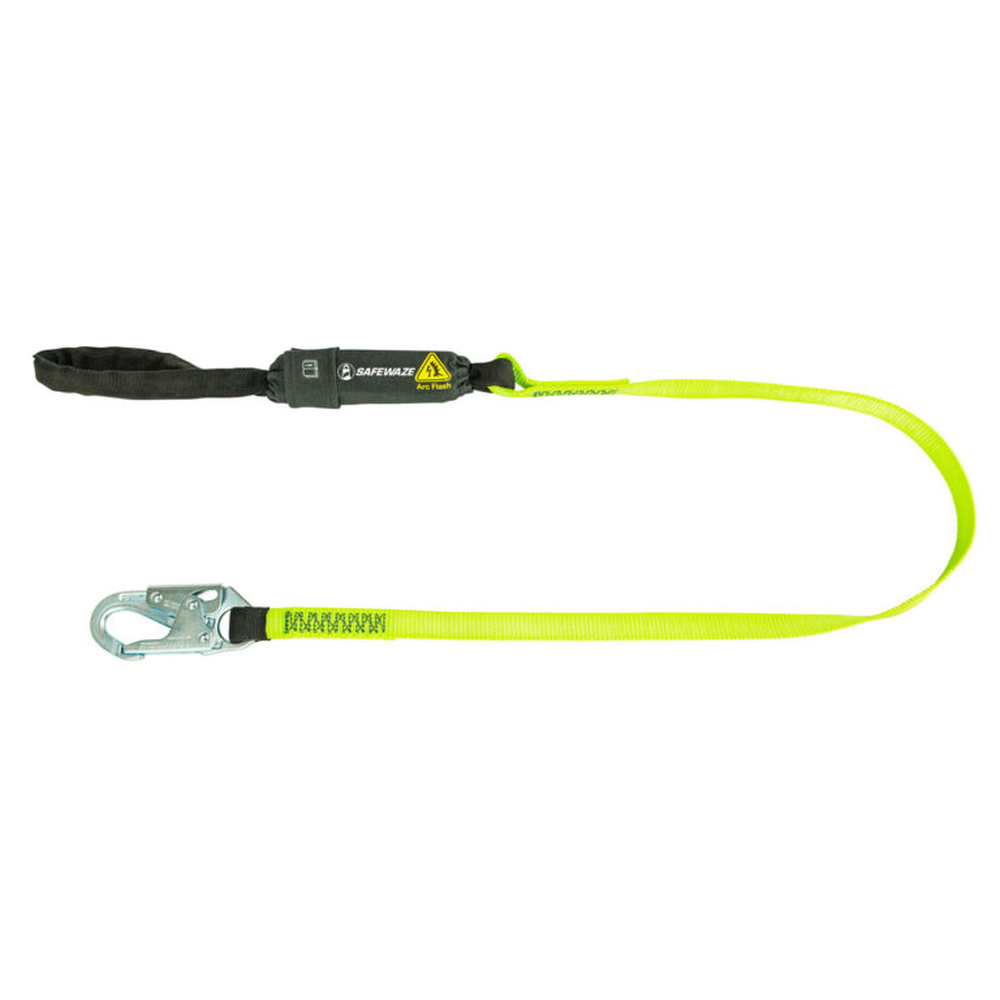

The Safewaze FS560-AF-SE is a specialized 6-foot energy-absorbing lanyard designed for maximum safety in arc event rated environments. Built with Mil-Spec flame and heat-resistant nylon webbing, it ensures reliable fall protection while maintaining integrity when exposed to electrical arcs. This lanyard is an essential safety solution for utility workers, electrical contractors, and maintenance professionals working at heights near energized equipment.
  • 40Cal/550F Arc Rated Performance
  • Mil-Spec Flame Resistant Webbing

Features

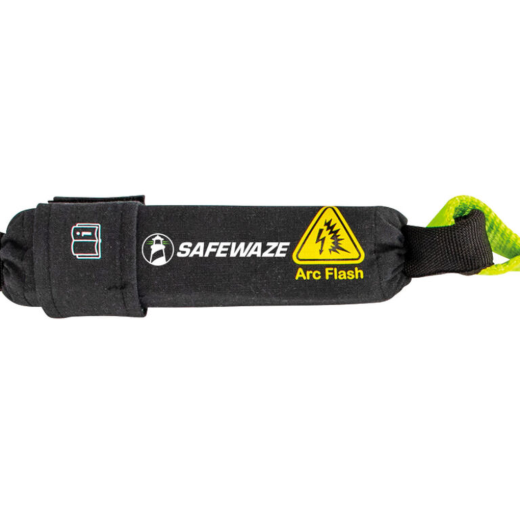

  • Integrated Nomex shock pack and label covers provide superior thermal protection and durability.

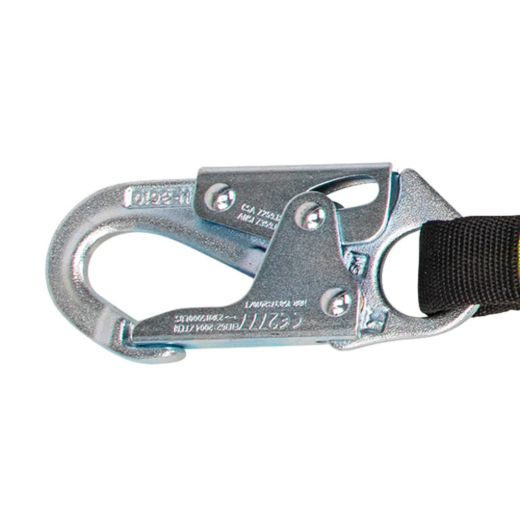

  • Features a forged steel snap hook on one end and a soft-eye cinch loop on the other.
  • Meets rigorous safety standards including ANSI Z359.13, ASTM F887, and OSHA 1926.502.
  • Single-leg construction with a minimum breaking strength of 5,000 lbs.

Includes

  • 6' Arc Flash Energy Absorbing Lanyard
  • Attached Forged Steel Snap Hook
  • Protective Nomex Shock and Label Covers
Products specifications
Model Number FS560-AF-SE
Length 6 ft (1.8 m)
Arc Rating 40 Cal / 550F
Webbing Material 1 inch Nylon
Cover Material Nomex
End Connector 1 Forged Steel Snap Hook
End Connector 2 Soft Loop / Web Loop
Weight 2.6 lbs (1.2 kg)
ANSI Weight Capacity 130 - 310 lbs
OSHA Weight Capacity Up to 420 lbs
Breaking Strength 5,000 lbs minimum
Gate Rating 3,600 lbs
Standards ANSI Z359.13, ASTM F887, OSHA 1926.502
*
*
*
