Safewaze Beam Trolley Anchor

Mfr.: SafeWaze
Item #: I077125
Mfr. #: 018-4001
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $514.04
i h h

Description

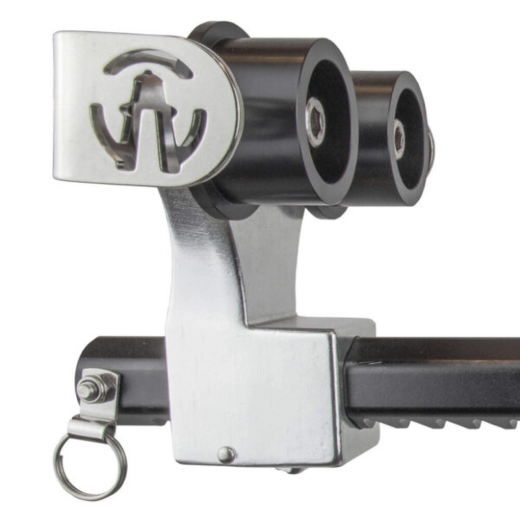

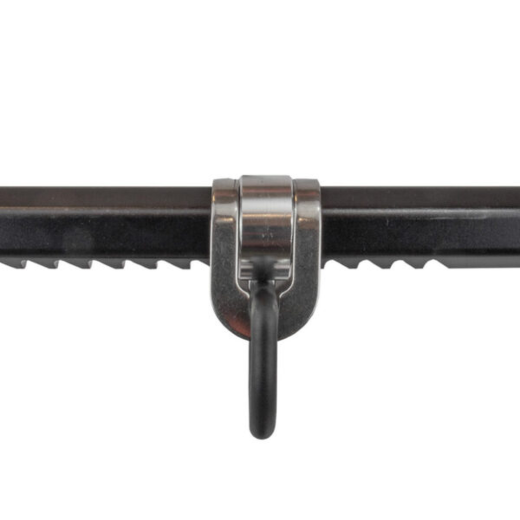

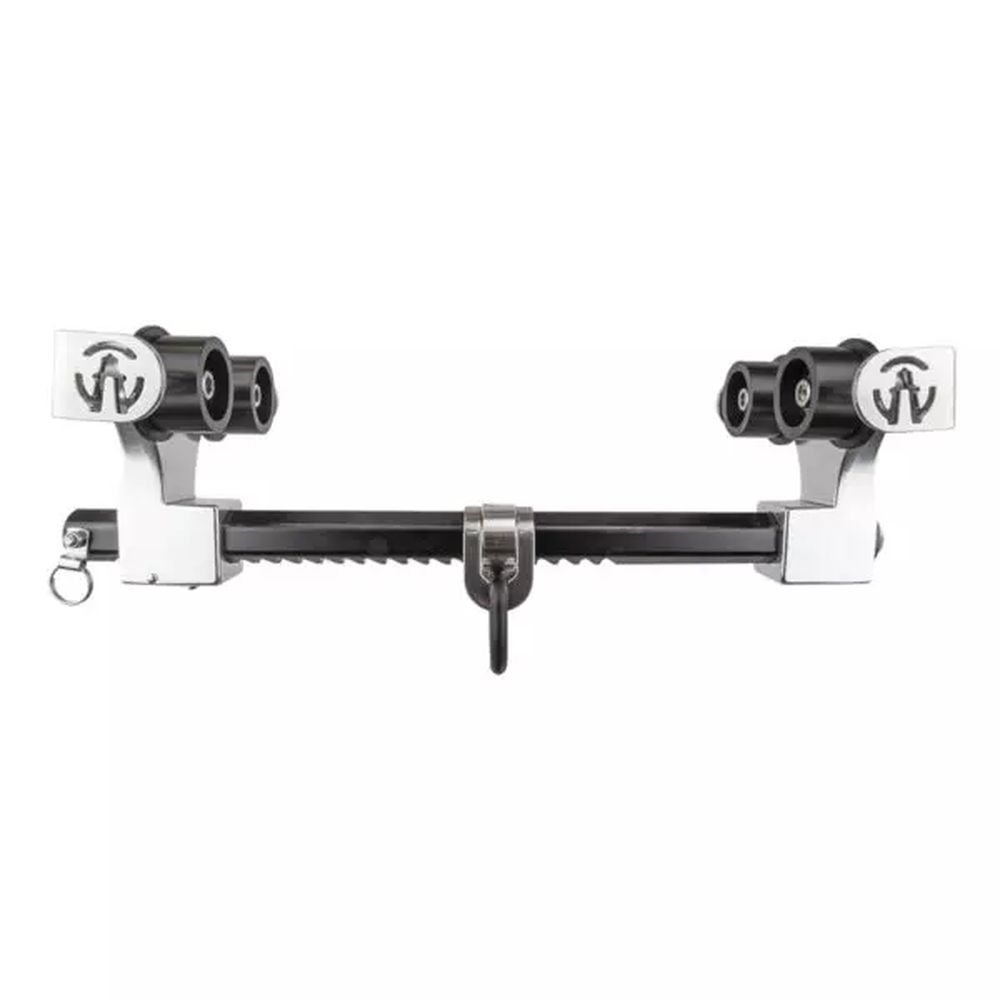

The Safewaze 018-4001 Beam Trolley Anchor is a high-performance fall protection solution designed for effortless movement along overhead horizontal I-beams. Featuring a lightweight aluminum body and semi-sealed bearings, this anchor allows workers to maintain mobility while remaining securely tied off. Its durable nylon wheels glide smoothly over beam surfaces, making it an ideal choice for steel construction and specialty food processing applications. The robust design ensures reliable safety and longevity in demanding industrial environments.
  • Lightweight Aluminum Body
  • Stainless Steel Rail Guides
  • Coated Steel D-Ring Attachment
  • Abrasion-Resistant Nylon Wheels

Features

  • Adjustable to fit beam flange widths from 3.5 inch to 14 inch
  • Accommodates beam flange thicknesses up to 1.75 inch
  • Ertalon nylon wheels are resistant to heat and chemicals
  • Minimum breaking strength of 5,000 lbs for maximum safety
  • Compliant with ANSI Z359.1 and OSHA standards

Includes

  • 018-4001 Beam Trolley Anchor
  • User Instruction Manual
Products specifications
Material Aluminum, Stainless Steel, Nylon
Weight 7.1 lbs (3.22 kg)
Flange Width Range 3.5 in - 14 in
Flange Thickness Up to 1.75 in
Breaking Strength 5,000 lbs (22.25 kN)
ANSI Capacity 130-310 lbs (59-141 kg)
OSHA Capacity Up to 420 lbs (191 kg)
Standards ANSI Z359.1, OSHA 1926.502
*
*
*
