Safewaze Bolt On D-Ring Anchor

Mfr.: SafeWaze
Item #: I077315
Mfr. #: FS888
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $36.84
i h h

Description

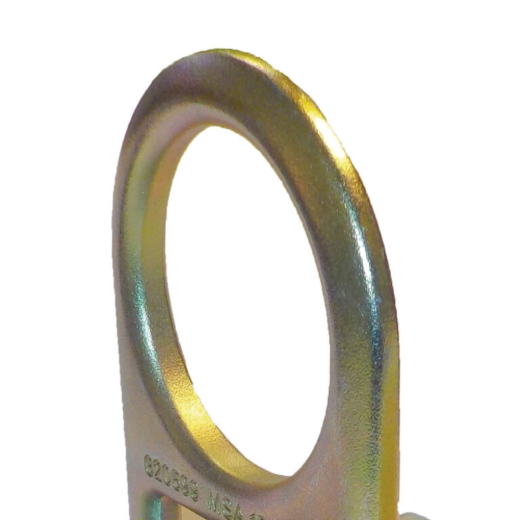

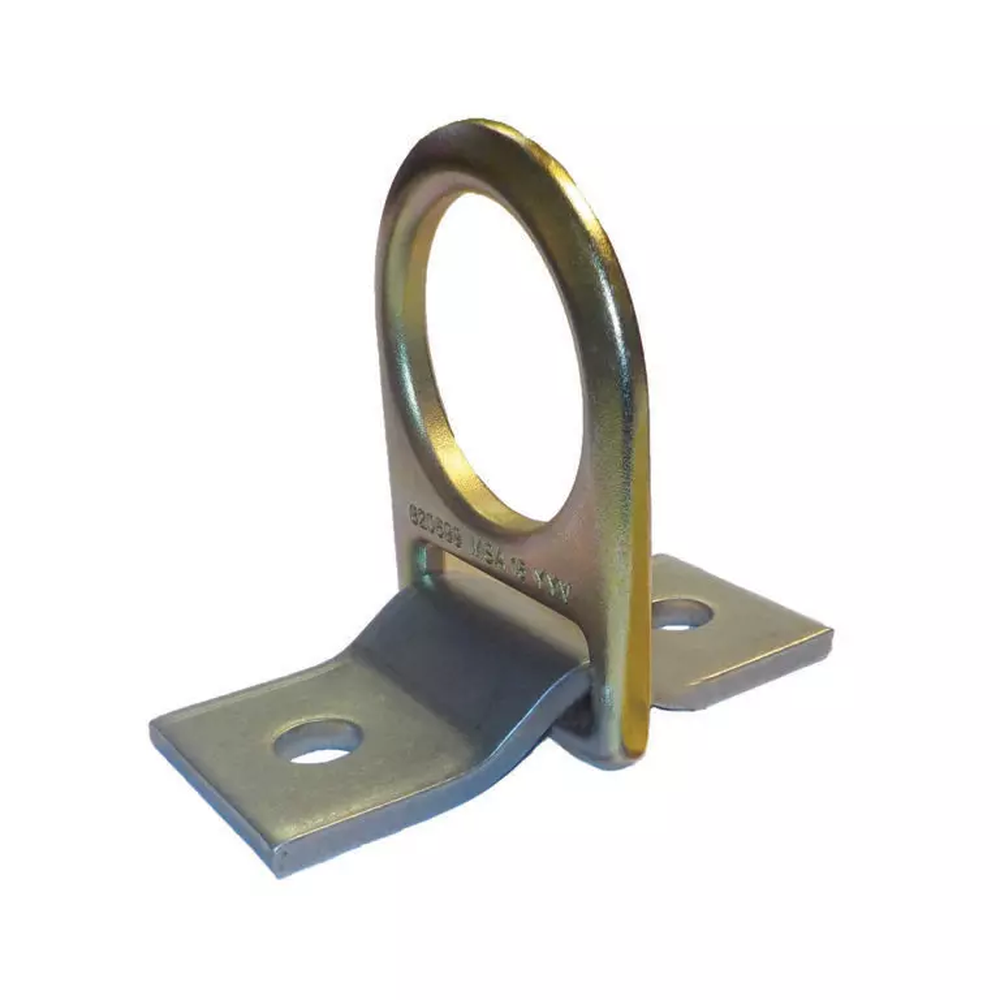

The Safewaze FS888 Bolt On D-Ring Anchor is a high-strength anchorage solution designed for permanent or temporary installation on steel or concrete structures. Its rugged design features a forged steel D-ring that provides a reliable tie-off point for fall arrest, restraint, and work positioning systems. The low-profile plate can be easily bolted or welded to approved surfaces, offering versatile mounting orientations for various jobsite configurations.
  • 5,000 lb. Minimum Breaking Strength (MBS)
  • Corrosion-Resistant Zinc Plated Steel

Features

  • Free-moving D-ring design allows for 180 rotation after installation to reduce snaphook gate wear.
  • Versatile mounting allows for either bolt-on (using 1/2 inch Grade 5 bolts) or weld-on attachment methods.

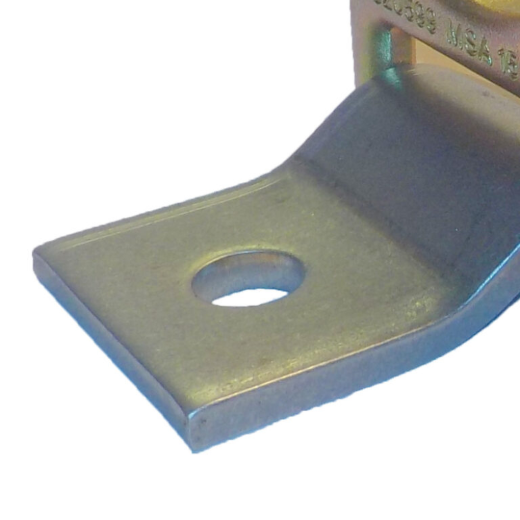

  • Low-profile footprint helps minimize snag hazards in high-traffic work areas or along ladders.
  • Meets or exceeds OSHA 1926.502, 1910.140, 1910.66, and ANSI Z359.1 requirements.

Includes

  • (1) FS888 Bolt On D-Ring Anchor
Products specifications
Material Zinc/YCM Plated Steel
Breaking Strength 5,000 lbs (22 kN)
Unit Weight 1.2 lbs (0.5 kg)
Dimensions 0.25 inch x 2 inch x 4.5 inch
Hole Diameter 0.5 inch
ANSI Capacity 130-310 lbs
OSHA Capacity Up to 420 lbs
Standards OSHA 1926.502, ANSI Z359.1
*
*
*
