Safewaze Corrugated Roof Anchor: Stainless Steel

Mfr.: SafeWaze
Item #: I077216
Mfr. #: 024-4113
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $171.49
i h h

Description

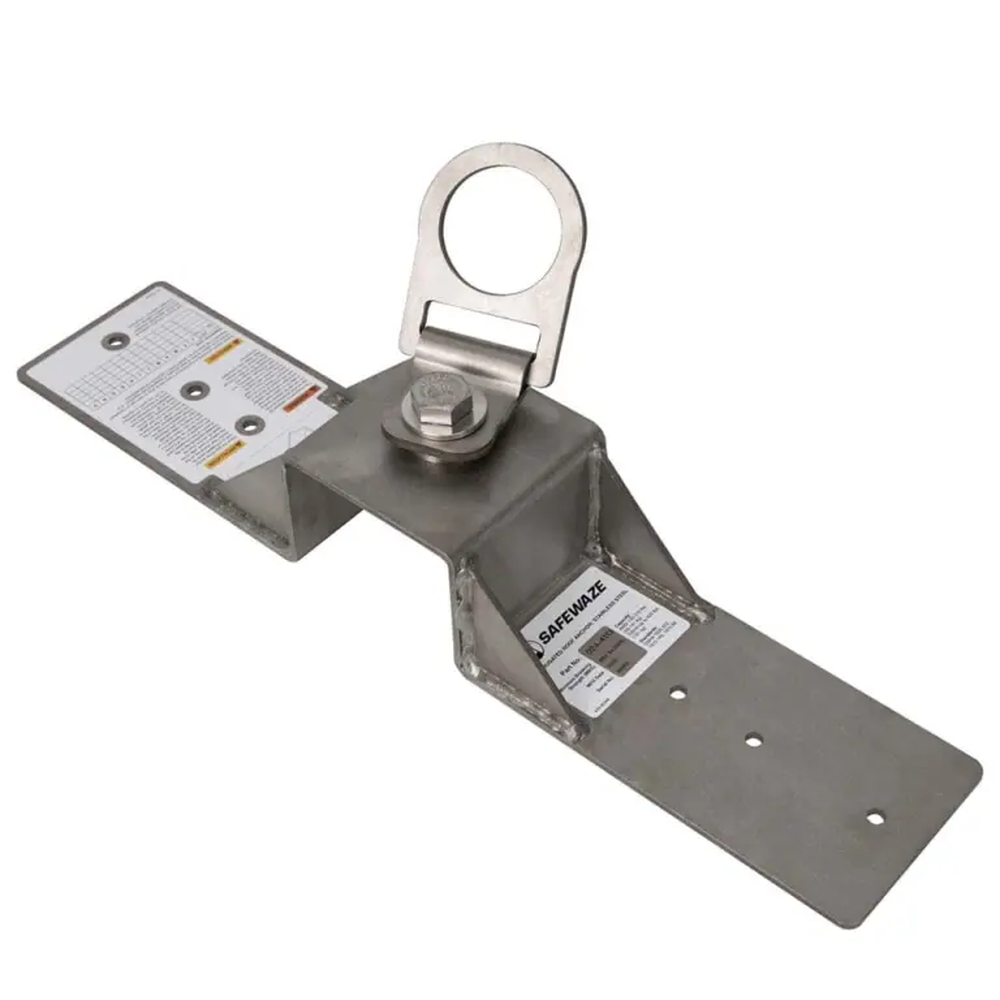

The Safewaze 024-4113 Corrugated Roof Anchor is a high-strength, reusable fall protection solution designed specifically for corrugated metal roofing. This stainless steel anchor features a 360-degree rotating swivel D-ring to provide maximum worker mobility and flexibility during tasks. Its design allows for easy installation and removal, ensuring the roof's integrity is maintained by allowing original fasteners to be reinstalled after use.
  • Stainless Steel Construction

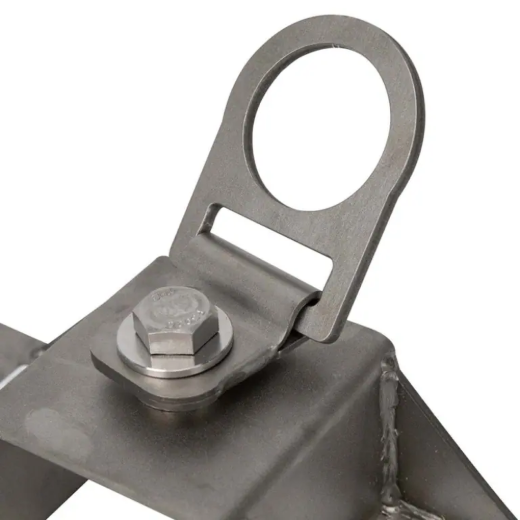

  • 360 Swivel D-Ring

Features

  • Designed for corrugated roofs with max ridge height of 1-3/4 inch and width of 3-3/4 inch.
  • Allows the use of custom fasteners to ensure compatibility with specific roof types.
  • Temporary and reusable design ideal for roofing contractors and maintenance crews.
  • Not suitable for Horizontal Lifeline (HLL) or material hauling use.
  • Meets OSHA 1926.502, 1910.140, and 1910.66 safety standards.

Includes

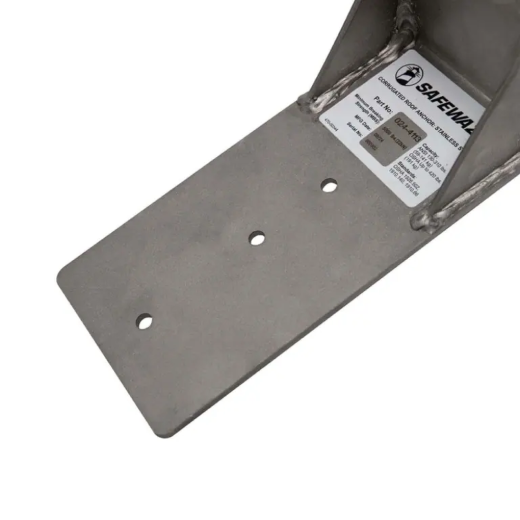

  • Stainless Steel Corrugated Roof Anchor Base
  • Integrated 360 Swivel D-Ring
Products specifications
Material Stainless Steel
Weight 5.8 lbs. (2.6 kg)
Dimensions 20.1 inch x 4 inch x 2.9 inch
Minimum Breaking Strength 5,000 lbs.
ANSI Weight Capacity 130-310 lbs.
OSHA Weight Capacity Up to 420 lbs.
Max Ridge Height 1-3/4 inch
Max Ridge Width 3-3/4 inch
Min Valley Spacing 8 inch
Min Decking Thickness 24 gauge
Min Purlin Thickness 16 gauge
OSHA Standards 1926.502, 1910.140, 1910.66
*
*
*
