Safewaze Corrugated Roof Anchor: Steel

Mfr.: SafeWaze
Item #: I077215
Mfr. #: 024-4112
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $96.47
i h h

Description

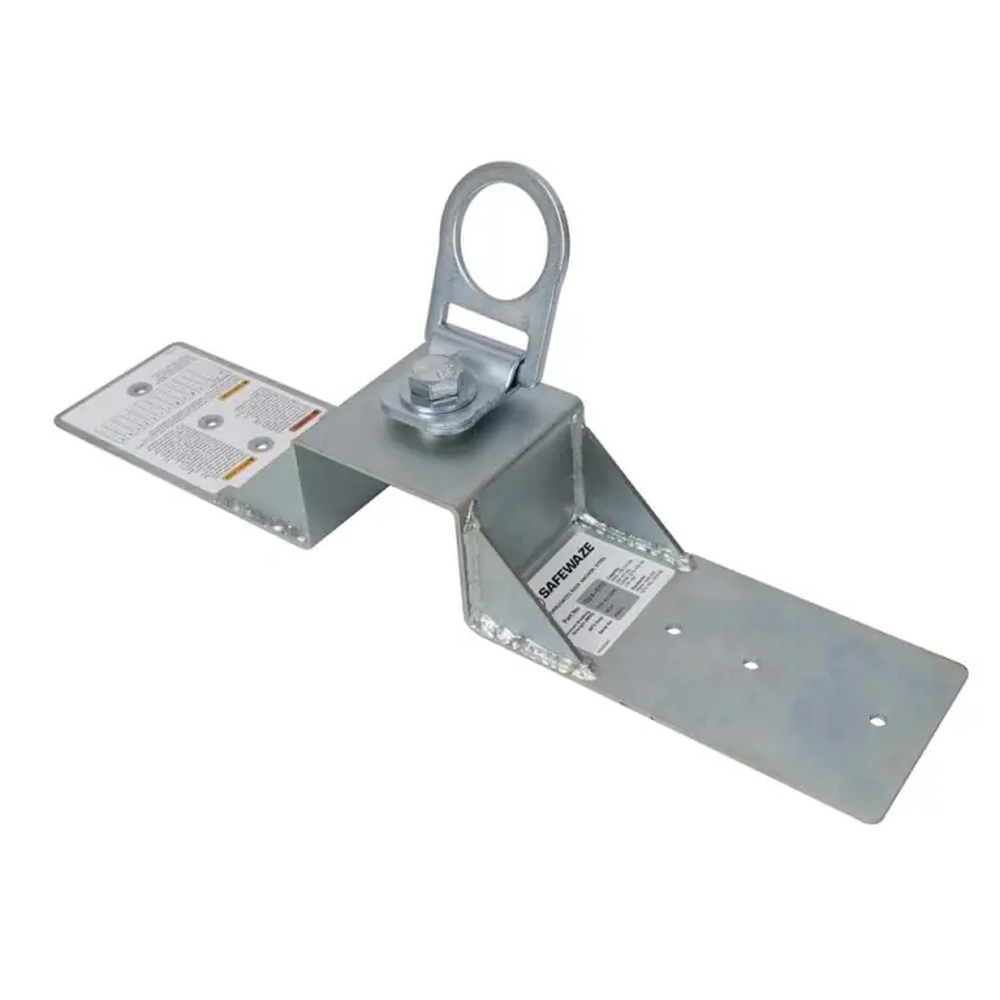

The Safewaze 024-4112 Corrugated Roof Anchor is a versatile, reusable solution engineered for secure attachment on corrugated metal roofs. It features a 360 rotating swivel D-ring that provides maximum mobility and reliable fall protection for workers. Designed for compatibility with various roof types, it allows users to utilize their own fasteners to ensure a proper fit while maintaining the roof's waterproofing. This anchor is ideal for temporary setups and mobile crews, offering a durable and easy-to-remove connection point that preserves roof integrity.

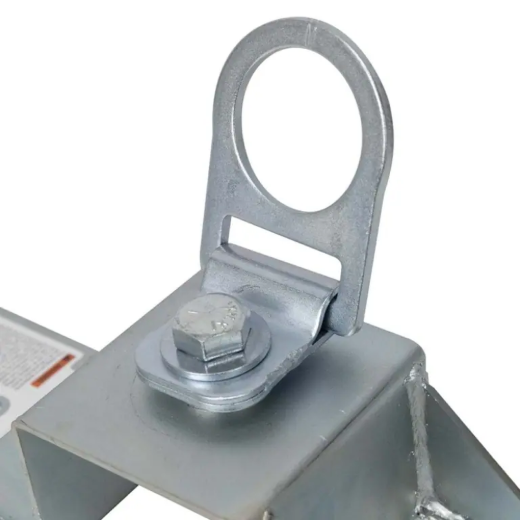

  • 360 rotating swivel D-ring
  • Zinc-plated steel construction
  • Temporary and reusable design

Features

  • Designed for use on corrugated roofs with maximum ridge height of 1-3/4 inch and width of 3-3/4 inch.
  • Allows use of custom fasteners to ensure compatibility with specific roof gauges and purlin thicknesses.
  • Engineered for easy removal and fastener reinstallation to prevent leaks and preserve roof integrity.
  • Minimum breaking strength of 5,000 lbs ensures robust fall arrest safety.
  • Compatible with OSHA 1926.502, 1910.140, and 1910.66 standards.

Includes

  • (1) Corrugated Roof Anchor (Steel)
Products specifications
Material Zinc-plated steel
Dimensions 20.1 inch x 4 inch x 2.9 inch
Weight 4.8 lbs
Breaking Strength 5,000 lbs
ANSI Capacity 130-310 lbs
OSHA Capacity Up to 420 lbs
Min. Decking 24 gauge
Min. Purlin 16 gauge
Max. Ridge Height 1-3/4 inch
Max. Ridge Width 3-3/4 inch
Min. Valley Spacing 8 inch between ridges
*
*
*
