Safewaze Girder Grip Anchor

Mfr.: SafeWaze
Item #: I077139
Mfr. #: 019-4007
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $97.86
i h h

Description

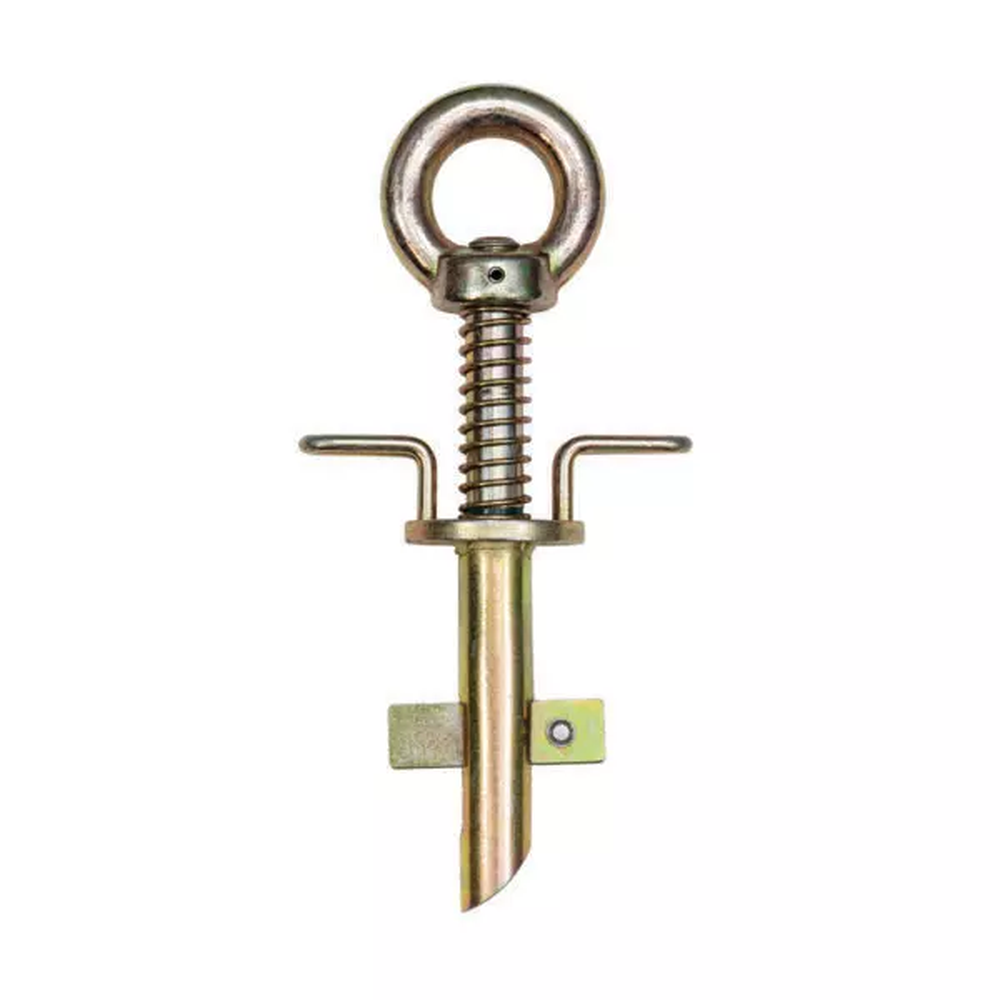

The Safewaze 019-4007 Girder Grip Anchor is a high-strength, economical anchorage solution designed for quick installation and removal from rated metal or steel structures. This versatile anchor can be used in both horizontal and vertical orientations, providing flexible safety options for ironworkers and steel erectors. Its compact design and heavy-duty steel construction ensure reliable performance in demanding industrial environments.
  • Heavy-duty yellow zinc-plated steel construction
  • Versatile horizontal or vertical mounting

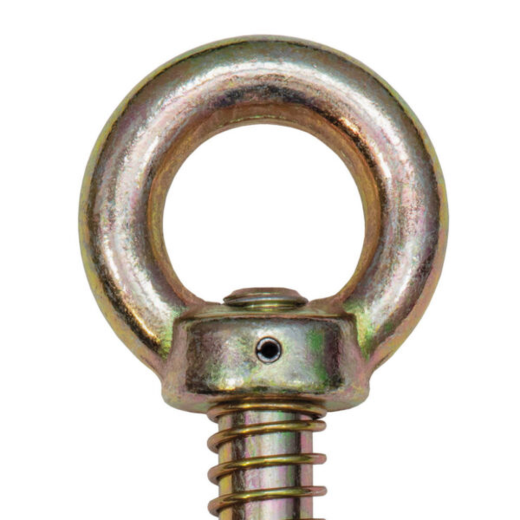

  • Integrated O-ring connection point

Features

  • Fits pre-drilled holes from 13/16 in. up to 1-1/4 in. diameter
  • Installs into steel substrates with a maximum thickness of 1-1/4 in.
  • Minimum Breaking Strength of 5,000 lbs. for robust fall protection
  • Meets OSHA 1926.502 and ANSI Z359.1 standards

Includes

  • 1 x Safewaze 019-4007 Girder Grip Anchor
Products specifications
Material Zinc Plated Steel
Weight 0.6 lbs (0.3 kg)
Dimensions 0.25 inch x 2 inch x 4.5 inch
Minimum Breaking Strength 5,000 lbs
ANSI Weight Capacity 130-310 lbs
OSHA Weight Capacity Up to 420 lbs
Hole Diameter Range 13/16 inch to 1-1/4 inch
Max Substrate Thickness 1-1/4 inch
Compliance ANSI Z359.1, OSHA 1926.502
Max Working Length 6 in
*
*
*
