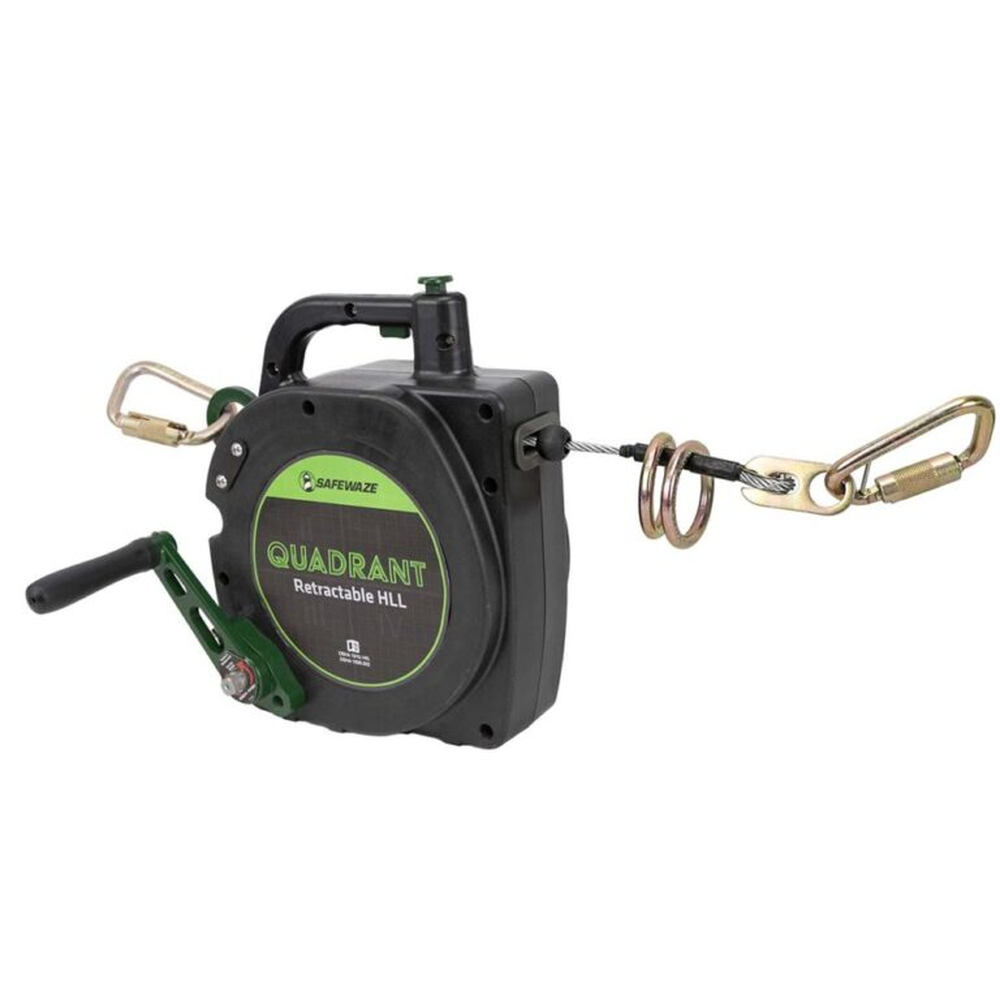

Safewaze Quadrant Retractable Horizontal Lifeline (HLL) System

Mfr.: SafeWaze
Item #: I077213
Mfr. #: 023-8091
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $1,727.37
i h h

Description

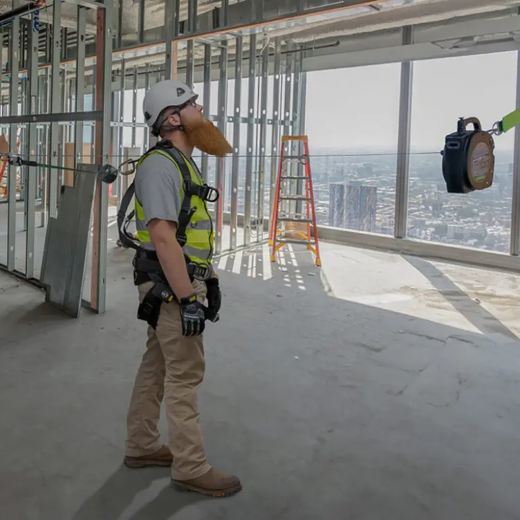

The Safewaze 023-8091 Quadrant Retractable HLL provides ultimate jobsite flexibility as a temporary 2-person horizontal lifeline system. With a versatile cable length up to 65 feet, it allows for a wide range of work environments while maintaining a user-friendly setup in just seconds. The durable 1/4 inch galvanized steel cable is conveniently stored within a protective nylon and glass fiber housing to prevent tangles and wear. Key benefits include a built-in fall indicator for quick safety inspections and an ergonomic handle for effortless transport across the jobsite.
  • Maximum 2-person system capacity
  • Versatile length up to 65 feet
  • Durable 1/4 inch galvanized steel cable
  • Protective nylon and glass fiber housing

Features

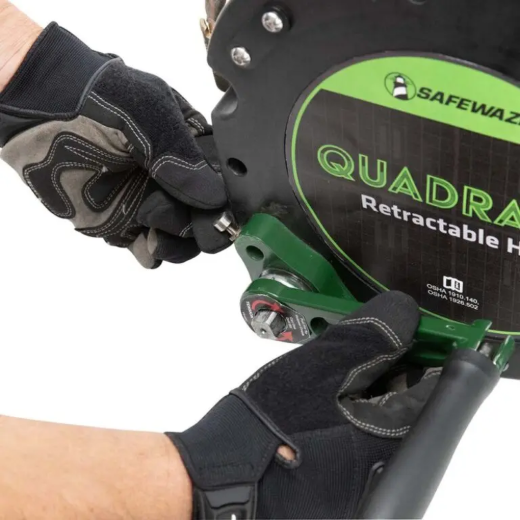

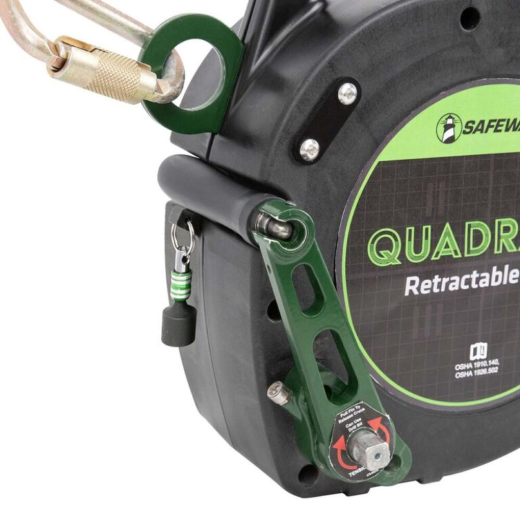

  • Lightweight and compact design with collapsible crank for easy storage

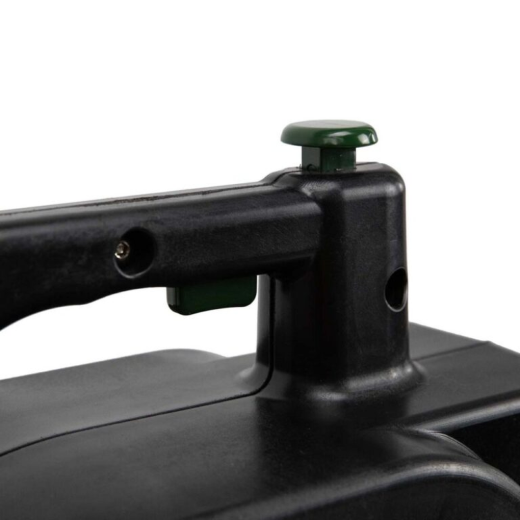

  • Built-in fall indicator ensures straightforward pre-use inspections

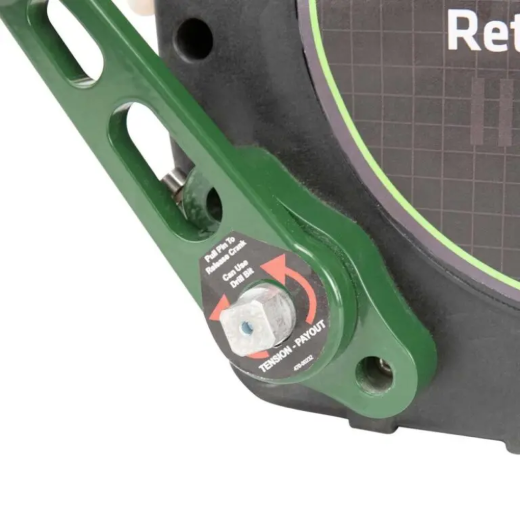

  • Efficient dual-action tension release for controlled payout and retrieval
  • Free wheel mode for practical and fast jobsite implementation
  • Includes captive eye and carabiner connection points for security

Includes

  • Quadrant Retractable HLL Main Unit
  • Two (2) Heavy-Duty Carabiners

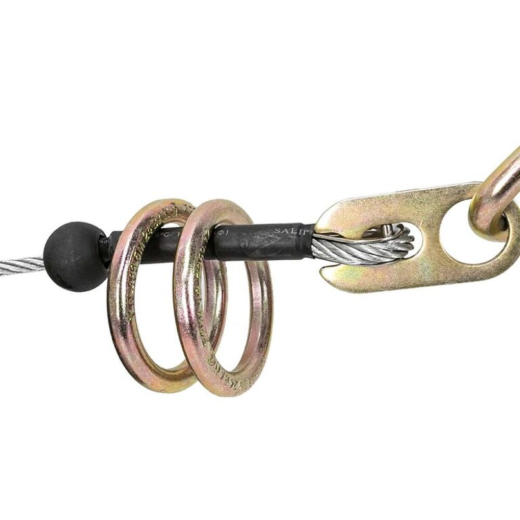

  • Two (2) Protective O-rings
  • Power Drill Retraction Adapter (023-8095)
Products specifications
Material Galv. Steel, Aluminum, Nylon/Glass Fiber
Weight 24.2 lbs (11.0 kg)
Maximum Length 65 ft (19.8 m)
Min. Breaking Strength 5,000 lbs (2268 kg)
System Capacity Maximum 2 Users
ANSI Weight Capacity 130-310 lbs (59-141 kg)
OSHA Standards 1926.502, 1910.140, 1910.66
Peak Pullout Load 2,500 lbs (1134 kg)
*
*
*
