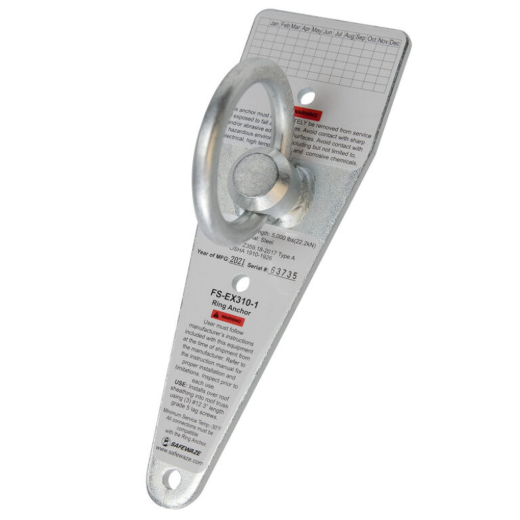

Safewaze Ring Anchor

Mfr.: SafeWaze
Item #: I077328
Mfr. #: FS-EX310-1
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $64.49
i h h

Description

The Safewaze FS-EX310-1 Ring Anchor is a high-strength, compact fall protection solution designed for versatile use on wood or concrete structures. Its reusable design features a large forged ring that provides a secure, easy-to-use connection point for lanyards and self-retracting lifelines. This anchor is an essential component for residential and commercial contractors who require a reliable and portable tie-off point that meets rigorous safety standards.
  • Zinc-plated steel construction for durability
  • Reusable and portable design
  • 5,000 lb. Minimum Breaking Strength
  • Supports up to 420 lbs. (OSHA)

Features

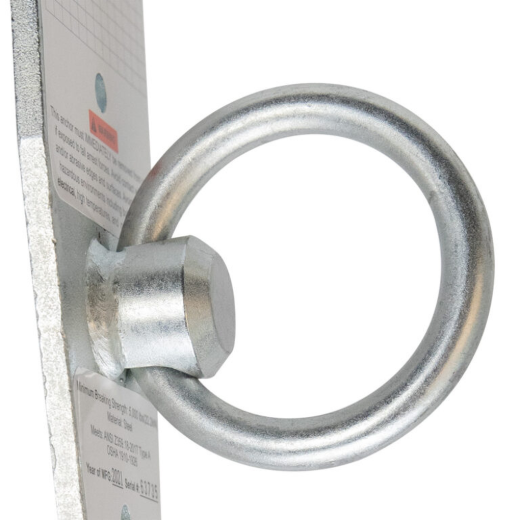

  • Large ring connection point allows for quick and efficient attachment of fall arrest equipment.
  • Multi-substrate compatibility allows for installation on wood roofs and concrete surfaces.
  • Compliant with ANSI Z359.18-2017 Type A and OSHA 1926.502 regulations.
  • Designed for 360-degree work operations when used as a single-point anchorage.

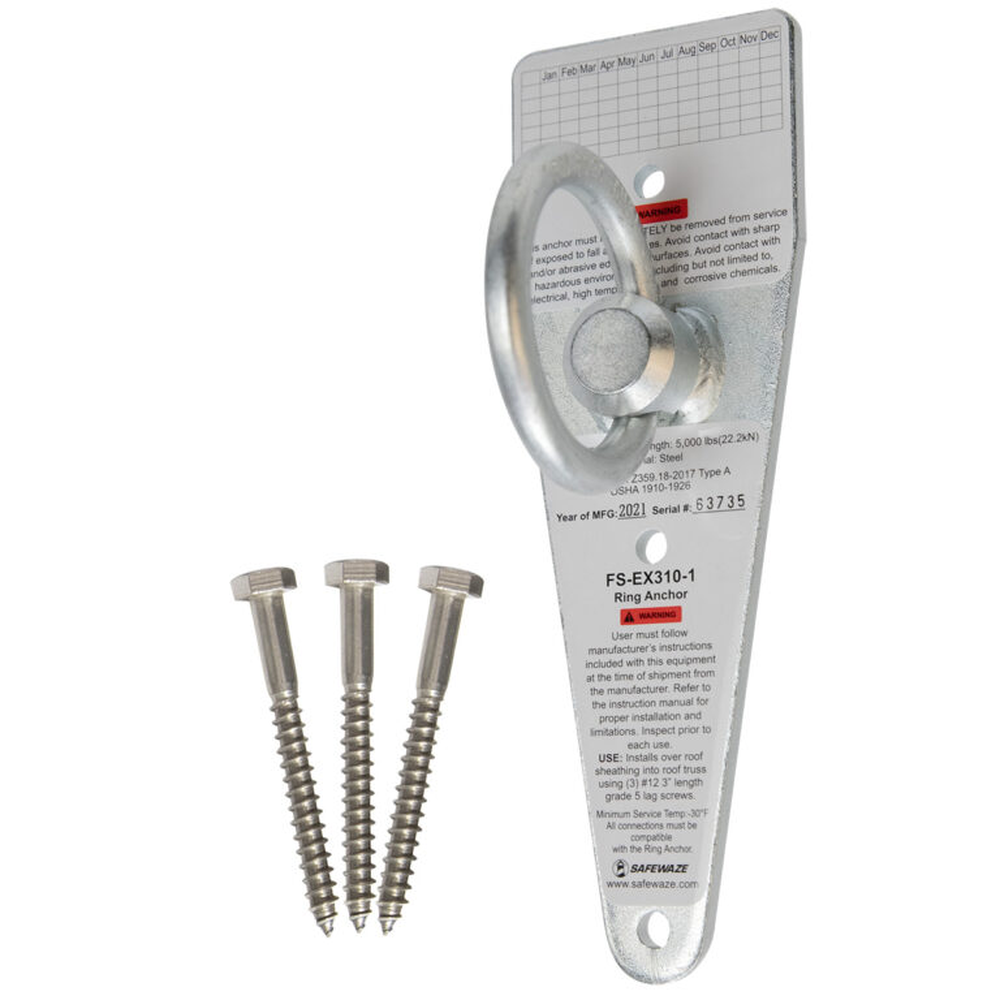

Includes

  • (1) Safewaze Ring Anchor

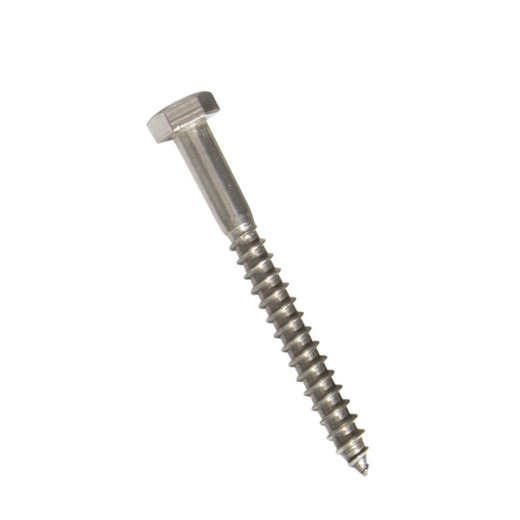

  • (3) 5/16 inch x 3 inch Hex Lag Screws for wood
Products specifications
Material Zinc-plated steel, Stainless steel
Weight 1.8 lbs. (0.8 kg)
Length 9 inches
Min. Breaking Strength 5,000 lbs. (22 kN)
ANSI Weight Capacity 130 - 310 lbs.
OSHA Weight Capacity Up to 420 lbs.
ANSI Standard Z359.18-2017 Type A
OSHA Standards 1926.502, 1910.140
Fastener Size 5/16 inch x 3 inch Hex Lag Screws
*
*
*
