Safewaze SAFELINK Eye Bolt

Mfr.: SafeWaze
Item #: I077327
Mfr. #: FS-EX2508
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $21.04
i h h

Description

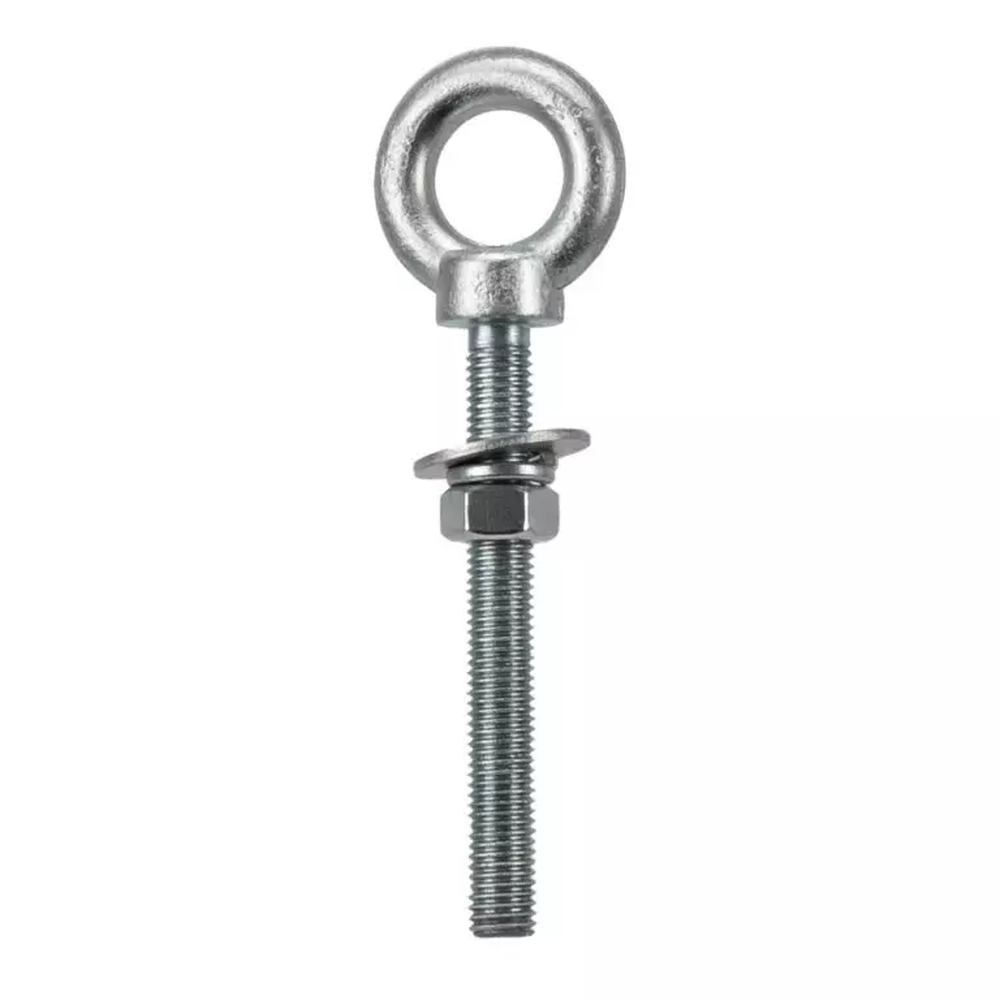

The Safewaze FS-EX2508 SafeLink Eye Bolt is a high-strength anchor component designed specifically for the SafeLink Horizontal Lifeline System. It provides a secure connection point between the lifeline cable and the system's aluminum posts, ensuring structural integrity during fall arrest events. Built from forged carbon steel with a protective galvanized finish, this eye bolt is engineered to withstand harsh jobsite conditions while meeting rigorous safety standards.
  • Forged 1030 carbon steel construction
  • Hot galvanized finish for corrosion resistance

Features

  • Designed for the SafeLink Horizontal Lifeline

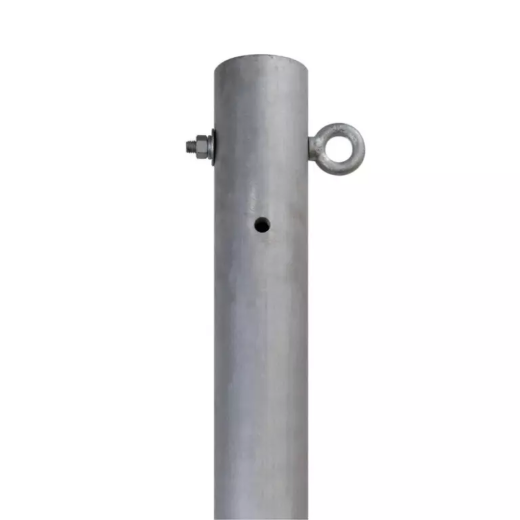

  • Connects cable to FS-EX5501-5 aluminum posts
  • Includes locking nut to prevent loosening
  • Meets OSHA 1926.502 and ANSI Z359.12-2009

Includes

  • Forged Eye Bolt
  • Hex Nut
  • Lock Washer
Products specifications
Part Number FS-EX2508
Material Forged 1030 Carbon Steel
Finish Hot Galvanized
Shaft Length 4.5 in (114.3 mm)
Shaft Diameter 1/2 in (12.7 mm)
Working Load 2,100 lbs (952.54 kg)
Weight 0.4 lbs (0.18 kg)
Applicable Standards OSHA 1926.502, ANSI Z359.12
*
*
*
