Safewaze SafeLink Nelson/Rebar Assembly

Mfr.: SafeWaze
Item #: I077212
Mfr. #: 023-8087
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $1,071.40
i h h

Description

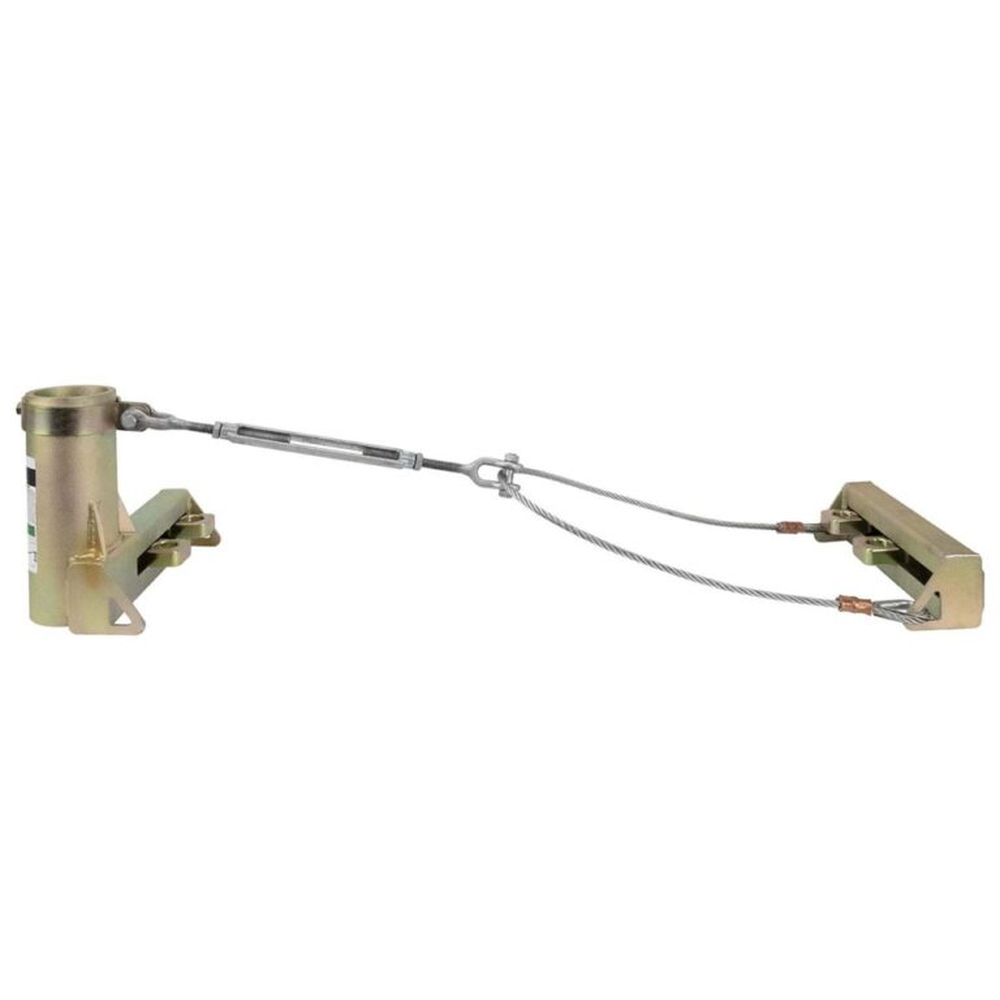

The Safewaze SafeLink Nelson/Rebar Assembly is a highly versatile mounting solution specifically engineered for bridge construction applications. Designed for use with the SafeLink Anchor Post, this assembly provides a secure anchor point for temporary horizontal lifeline systems. It features a compact 3-to-4-foot footprint to minimize trip hazards while supporting configurations for both single and multi-span setups. Its durable steel construction ensures long-lasting performance in demanding job site environments, providing maximum safety and flexibility for workers.
  • Fits Nelson (Shear) Stud, L-shaped, and straight rebar
  • Quick, easy installation with minimal hardware
  • Reduced trip hazard with compact 3'-4' footprint
  • Configurable for single or multi-span up to 195'

Features

  • Adjustable clamps fit diameters from 1/2 to 1-3/8
  • Requires a minimum stud shaft height of 4 inches
  • Accommodates stud spacing from 2-1/2 to 7-1/4
  • Maximum capacity of 2 users per span
  • Compatible with FS-EX5501-5 aluminum posts

Includes

  • Nelson/Rebar Assembly Bracket
  • Adjustable Rebar Clamps
  • Wingnut Hardware
Products specifications
SKU 023-8087
Material YCM Plated Steel
Hardware Material Galvanized Steel
Rebar Diameter 1/2 inch to 1-3/8 inch
Minimum Stud Height 4 inches
Stud Spacing Range 2-1/2 to 7-1/4 inches
System Footprint 3 to 4 feet
User Capacity 2 Workers per Span
Maximum Span Length 195 feet (59.4 m)
Recommended Post Safewaze FS-EX5501-5
*
*
*
