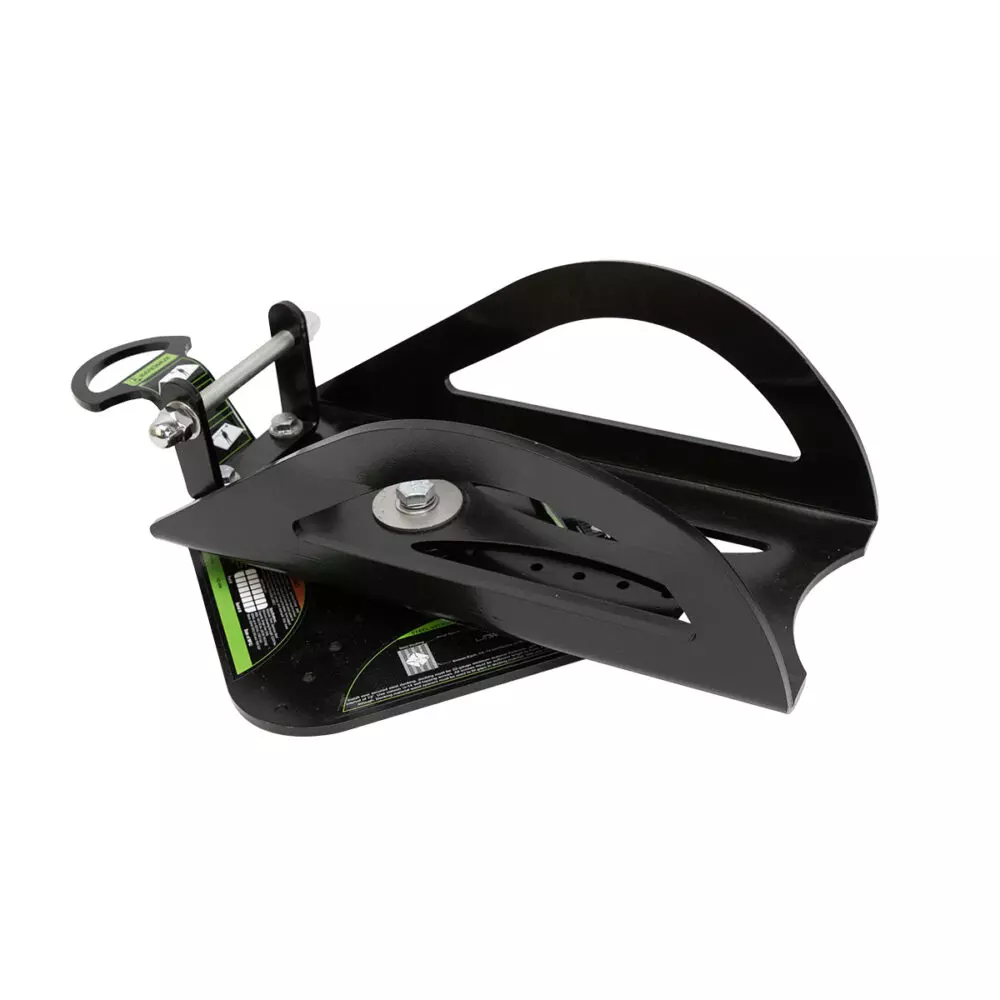

Safewaze SRL Swivel Roof Anchor

Mfr.: SafeWaze
Item #: I077201
Mfr. #: 022-4084
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $430.74
i h h

Description

The Safewaze 022-4084 SRL Swivel Roof Anchor is a high-performance, temporary fall protection solution designed for maximum worker mobility on residential and commercial roofs. It features a 360-degree swivel base and a smart cradle design that accommodates a wide variety of self-retracting lifelines (SRLs) without the need for disassembly. This versatile anchor installs easily on wood, metal, and concrete surfaces, providing a reliable single-point tie-off that tracks worker movement to prevent binding.
  • 360 swivel base for full range of motion
  • Multi-surface compatibility (Wood, Metal, Concrete)
  • Dual connection points: SRL post and D-ring
  • Powder-coated steel and stainless steel construction

Features

  • Installs on Z-purlins, metal decking, wood, or 3000 PSI concrete.

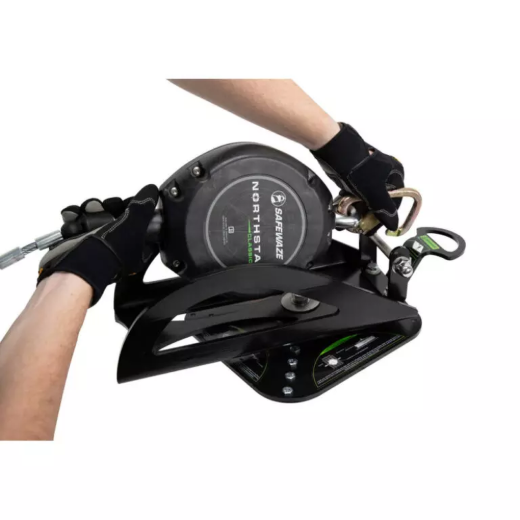

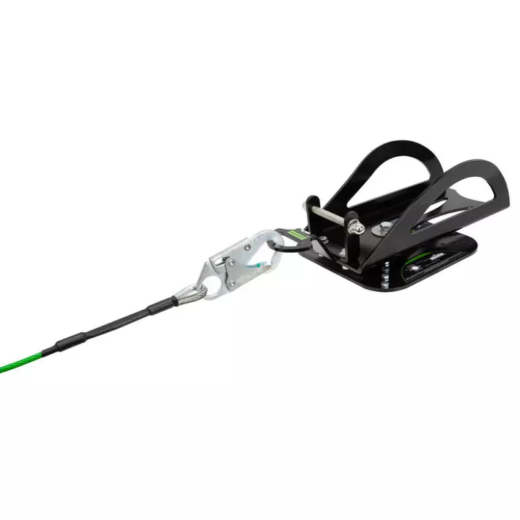

  • Anchor post allows for quick SRL attachment without removing carabiners.

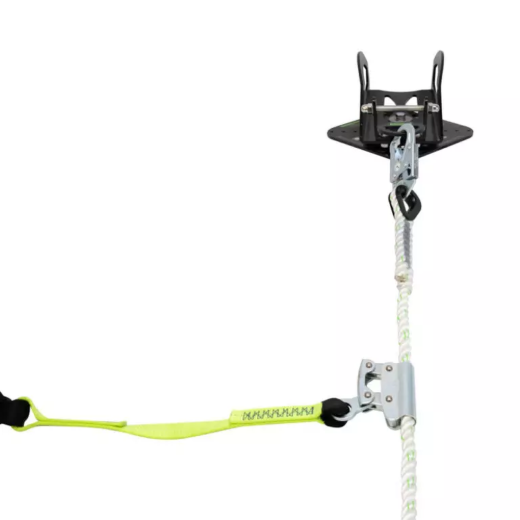

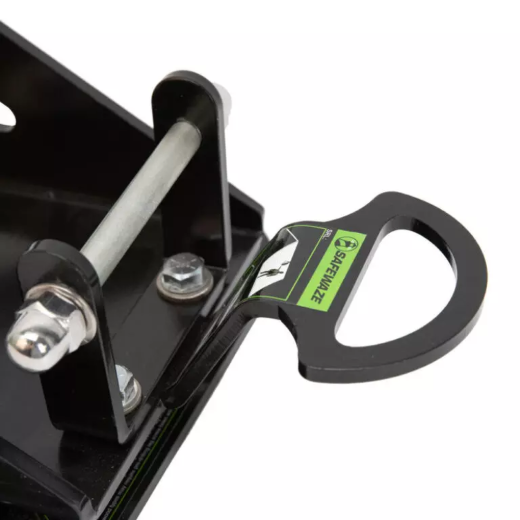

  • Integrated D-ring for use with lanyards or lifelines.
  • Temporary and reusable design for cost-effective job site safety.

Includes

  • Safewaze SRL Swivel Roof Anchor
  • (8) Lag screws for wood installation
  • (16) Self-tapping screws for metal installation
Products specifications
Model Number 022-4084
Material Powder coated steel, stainless steel
Weight 18.2 lbs (8.3 kg)
Overall Length 19 in (483 mm)
Base Plate Size 10 in x 10 in
Swivel Rotation 360 degrees
OSHA Capacity 420 lbs (191 kg)
ANSI Capacity 130-310 lbs (59-141 kg)
OSHA Standards 1910.140, 1926.502
Mounting Holes 16 total
*
*
*
