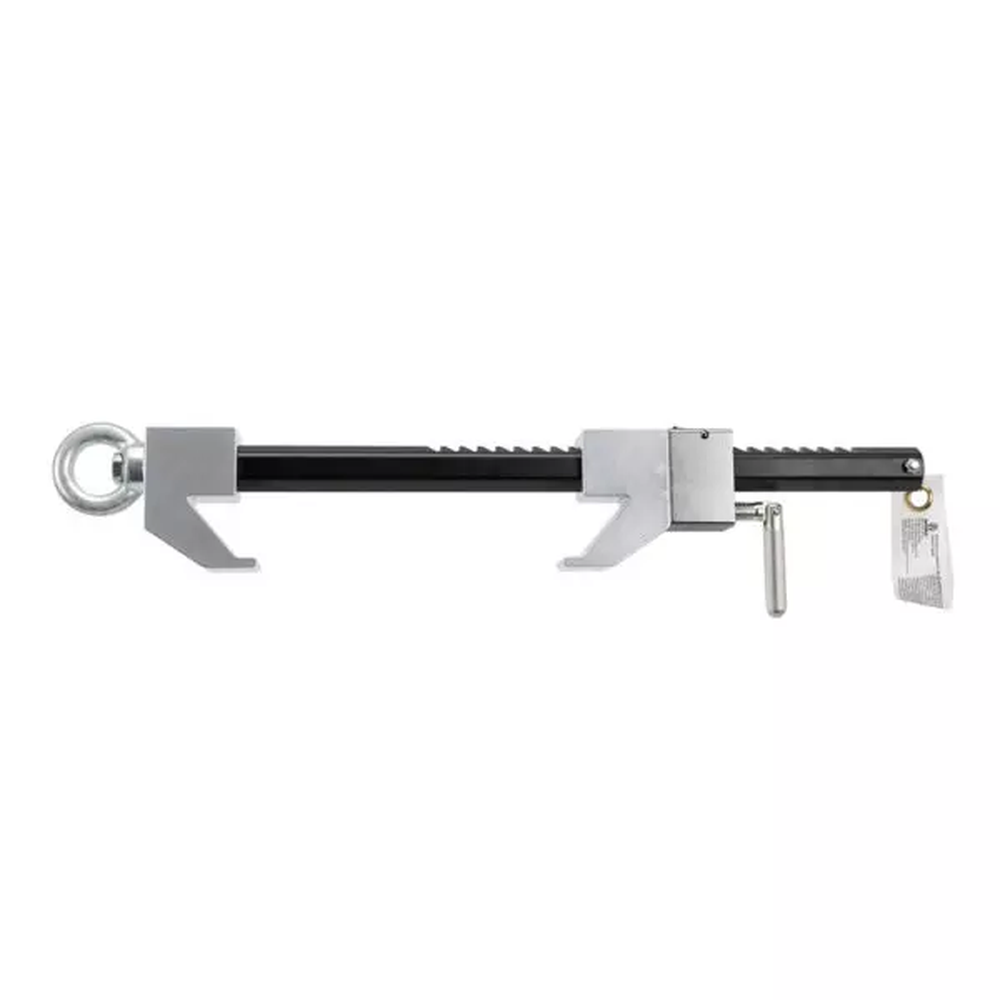

Safewaze Vertical/Stationary Beam Anchor

Mfr.: SafeWaze
Item #: I077140
Mfr. #: 019-4009
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $297.91
i h h

Description

The Safewaze 019-4009 is a versatile fall protection solution designed to provide a secure, stationary tie-off point on structural steel beams. This lightweight anchor installs in seconds and is unique for its ability to be used in both horizontal and vertical orientations. It serves as a robust single-person connection point, ensuring reliable safety for workers in demanding industrial and construction environments.
  • Lightweight aluminum construction
  • Adjustable flange width from 3.5 inch to 14 inch
  • Dual horizontal and vertical orientation capability
  • Rotating connection point for mobility

Features

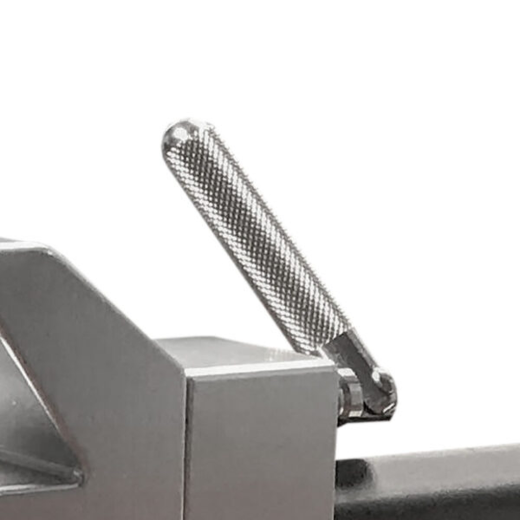

  • Equipped with a spring-loaded width adjustment lever and separate tensioning lever for a fast, secure fit.
  • Minimum breaking strength of 5,000 lbs (22 kN) for high-strength fall arrest reliability.
  • Compatible with beams up to 1-1/2 inch thick, fitting a wide variety of structural steel profiles.
  • Meets rigorous safety standards including ANSI Z359.1 and OSHA 1926.502.

Includes

  • Vertical/Stationary Beam Anchor
  • Instruction Manual
Products specifications
Material Aluminum, Zinc-Plated Steel
Weight 5.8 lbs. (2.6 kg)
Flange Width Range 3.5 inch - 14 inch
Breaking Strength 5,000 lbs.
ANSI Weight Capacity 130 - 310 lbs.
OSHA Weight Capacity Up to 420 lbs.
Max Flange Thickness 1.5 inch
Compliance ANSI Z359.1, OSHA 1926.502

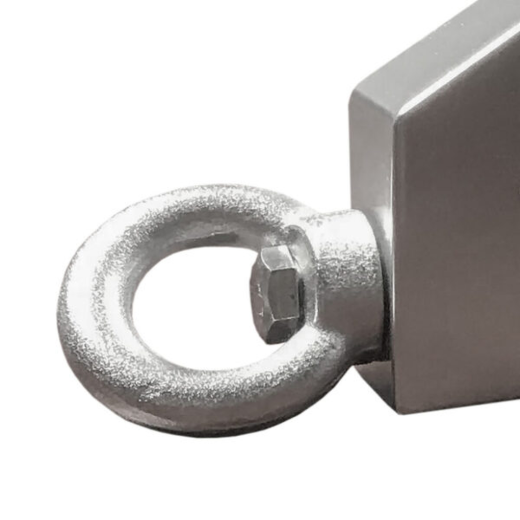

Connection Point Rotating Captive Eye
*
*
*
