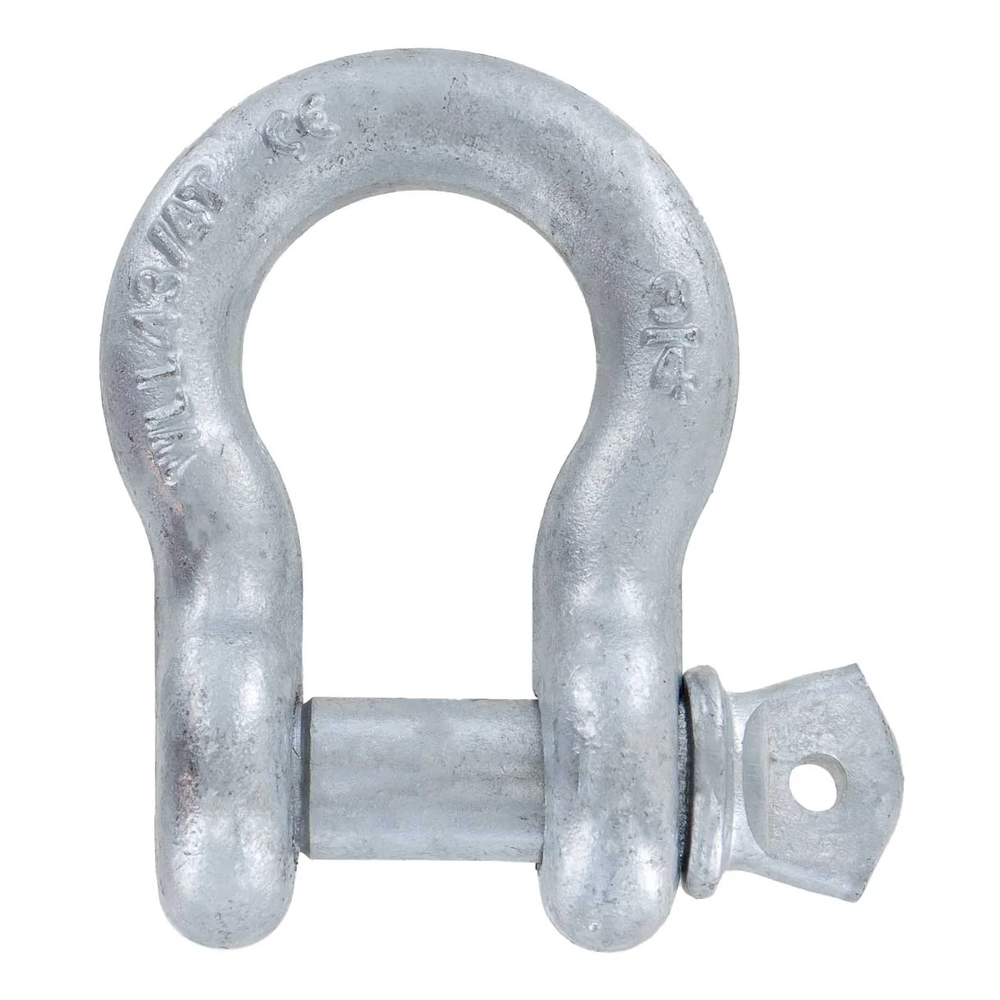

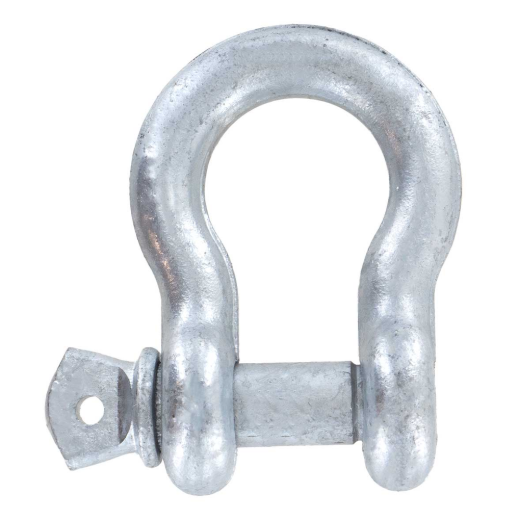

Screw Pin Anchor Shackle - 5/8" / 3.25 Ton

Mfr.: Unitis Rigging Products
Item #: I007893
Mfr. #: 01408
*
Pickup at Corona | Change Delivering to 92111 | Change

Availability:
Price: $8.37
i h h

Description

Drop-forged galvanized screw pin anchor shackle for lifting and rigging applications. The quick-release screw pin allows fast, tool-free attachment and detachment, while the wide anchor bow accommodates multi-leg sling configurations. Hot-dip galvanized for corrosion resistance and embossed with size and working load limit for easy identification.
  • Quick-release screw pin design — no tools required
  • Hot-dip galvanized finish for corrosion resistance
  • Wide anchor bow shape for multi-leg rigging systems
  • Embossed size and working load limit markings
  • 6:1 design (safety) factor

Features

  • Drop-forged carbon steel body for strength and durability
  • Ideal for use with nylon and polyester slings to protect sling eyes
  • Screw pin enables fast, repeated connection and removal
  • Meets Federal Specification RR-C-271 and ASTM A148M
  • Suitable for overhead lifting, towing, and tie-down applications

Includes

  • 5/8" Screw Pin Anchor Shackle, 3.25 Ton

Specifications


Working Load Limit3.25 Tons (6,500 lbs)Shackle Size5/8"
Pin Diameter3/4"MaterialDrop-forged carbon steel
FinishHot-Dip GalvanizedTypeScrew Pin Anchor
Safety Factor6:1Inside Width1.69"
Inside Height2.38"Jaw / Mouth Width1.06"
StandardsFederal Spec RR-C-271 & ASTM A148MWeight1.3 lbs
*
*
*
